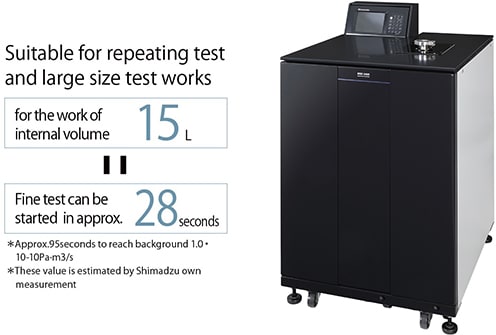

Shimadzu Helium Leak Detector Universal type, full automatic operationMSE-3400/3410

MSE-3400/3410


Line inspection tester for mass production lines of various vacuum-utilizing/automotive parts.

Specifications MSE-3400

Sensitivity 10-13~100Pa・m3/s[He]
Analyzer tube 270̊ magnetic deflecting type (Flux density: 0.17T)
Yttria-coated iridium filament (2 pcs.)
Automatic sensitivity calibration with temperature compensation
Vacuum System Molecular drag pump specially designed for leak detector (Structure of exhaust 70L/s)
Oil-sealed rotary vacuum pump (fore vacuum pump) (30L/min 50Hz)
Oil-sealed rotary vacuum pump (roughing vacuum pump) (300L/min 50Hz)
Pirani gage : Provided in two lines
Test Port Maximum pressure 1000Pa
Connection port : NW25KF
Weight Main unit : approx. 170kg
Power Requirements 200VAC±10%, three phases, 50/60Hz, 1.5kVA
Input/output RS-232C interface
Printer interface



Specifications MSE-3410

Sensitivity 10-13~100Pa・m3/s[He]
Analyzer tube 270̊ magnetic deflecting type (Flux density: 0.17T)
Yttria-coated iridium filament (2 pcs.)
Automatic sensitivity calibration with
temperature compensation
Vacuum System Molecular drag pump specially designed for leak detector (Structure of exhaust 70L/s)
Oil-sealed rotary vacuum pump (fore vacuum pump) (30L/min 50Hz)
Oil-sealed rotary vacuum pump (roughing vacuum pump) (1080L/min 50Hz)
Pirani gage : Provided in two lines
Test Port Maximum pressure 1000Pa
Connection port : NW25KF
Weight Main unit : approx. 260kg
Power Requirements 200VAC±10%, three phases, 50/60Hz, 3.0kVA
Input/output RS-232C interface
Printer interface

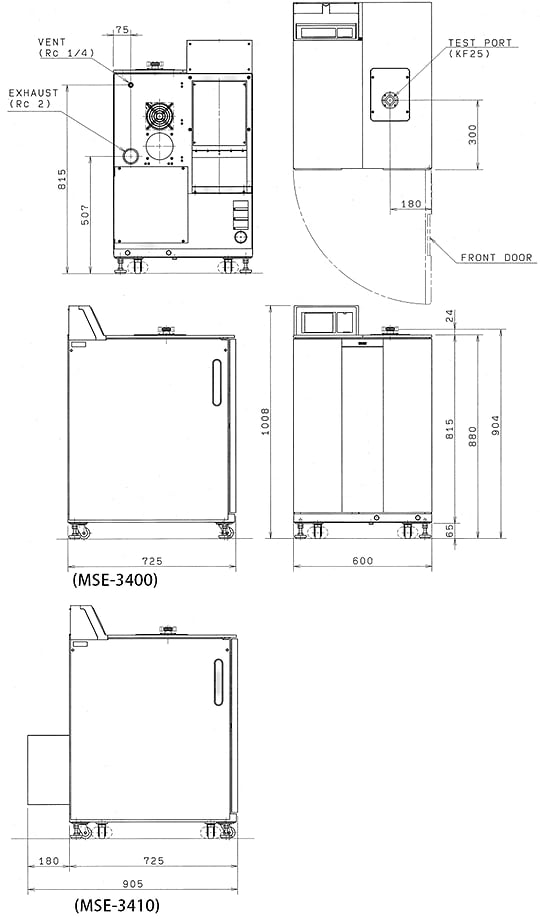

Dimensions MSE-3400 / MSE-3410

Dimensions MSE-3400 / MSE-3410
