Radiology System - BRANSIST safire VC17

17 inch FPD, Single Plane System, Floor/Ceiling Mounted C-Arm

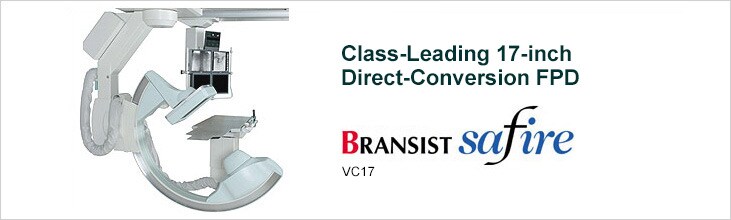

BRANSIST safire VC17

The BRANSIST safire VC17 ceiling-mounted vascular package is a digital angiography system that features a 17 x 17-inch direct-conversion FPD, the largest in its class. The system offers not only high image quality, but the optimal image quality for the various complex interventional procedures over the extensive field of views available. Through flexible system operation, fast digital image processing, with due consideration given to patient comfort and the latest applications, the system provides an advanced facility for state-of-the-art medical centers.

Ultra-High Image Quality for Optimal Interventional Procedures

BRANSIST safire VC17 was developed for optimal support of interventional procedures with excellent visibility of fine blood vessels and devices over the entire field of view range. The high-performance flat-panel detector which is based on a revolutionary Direct-Conversation technology achieves enhanced visibility and easily visualizes even the smallest devices which are available today. The large-field-of-view 17 x 17 inch is the largest in its class.

Class—Leading 17-inch Wide Field of View Detector

Class—Leading 17-inch Wide Field of View Detector

By utilizing a 17-inch FOV, a single image can cover the entire abdomen, thorax, or both legs, while also retaining fine resolution of the body part. By using a larger FOV, the system can reduce the number of contrast medium injections, fluoroscopy positioning operations, and relieve the patient burden during procedures.

Wide Coverage and Stress-Free

Wide Coverage Ensures a Safe Approach
Wide Coverage Eusres a Safe Approach

The ceiling-mounted C-arm offers a wide coverage, extending 160 cm laterally and 287 cm longitudinally.
This helps in choosing a safe brachial, radial or femoral approach.

Wide Range of Control From Within the Angiography Room

In addition to basic imaging operations, such as multi-display and split display, zoom, measurement and stopwatch, the IVR NEO controller permits accurate control of the overall system from the angiography lab, including setting imaging techniques, switching fluoroscopy modes and recording fluoroscopic images.

New Concept Auto Positioning
DirectMemory

The new DirectMemory unit intuitively calls up C-arm clinical angles for a patient and allows rapid repositioning.
DirectMemory provides powerful support for smooth, stress-free diagnostic catheterization and interventional procedures.

Versatile Operation with due Consideration to Safety

BRANSIST safire VC17 features a tableside controller for all C-arm and image operations, offers the ability of switching between fluoroscopy and radiography protocols.
This versatile controller offers the operator great east-of-use. INTELLISHIELD allows the FPD to detect the patient and automatically stop C-arm operation, allowing the operator to use the high-speed C-arm with complete confidence.

INTELLISHIELD Hybrid Sensor Enhances Patient Safety
Efficient Patient-Friendly RSM-DSA ChasingEfficient Patient-Friendly RSM-DSA Chasing

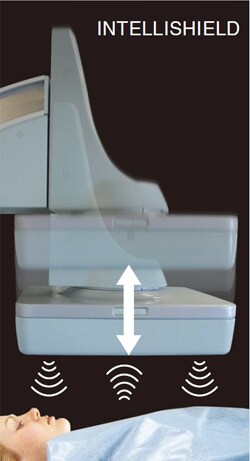

INTELLISHIELD is a contact-avoidance function that uses capacitive sensors embedded around the FPD to automatically stop C-arm operation when the patient is detected.
In addition, a touch-type safety sensor is provided at the center of the FPD where detection is difficult. These duplicate safety mechanisms allow the operator to sue the high-speed C-arm with complete confidence.

IVR-Support Applications

Efficient Patient-Friendly RSM-DSA Chasing
Efficient Patient-Friendly RSM-DSA Chasing

RSM-DSA Chasing is a new application with a multitude of patient benefits since it greatly reduces the amount of contrast medium required, patient does not need to be strapped down, flexible framing is performed in conjunction with contrast medium flow, and patient radiation dose is reduced since a mask run is not required.

Supporting Operations and Interventions

Useful for preoperative therapy planning and postoperative result judgments, RSM-DSA provides 3D-like detailed information of complex blood vessels and identifies nutrient vessels.

Breath Holding Not Required with RSM-DSA
Breath Holding Not Required with RSM-DSA

Since RSM-DSA is not affected by artifacts caused by bodily or respiratory movements, this feature is superbly suited for contrast examinations during emergencies and for portal veins requiring prolonged breath holding.

This page may contain references to products that are not available in your country. Please contact us to check the availability of these products in your country.

LITERATURE

Improvement of Functions Supporting Neuro-IVR (PDF 1.90MB)

Yoshiaki Miura
Medical Systems Division, Shimadzu Corporation

Development of CT-like Imaging Function for BRANSIST safire Angiography System VC17 (PDF 407KB)

Kazuyoshi Nishino
Shimadzu Corporation, Medical Systems Division

Angiography system Equipped with Wide-Field 17"x17" Direct-conversion FPD, BRANSIST safire VF17/VC17 (PDF 1.23MB)

Mr. Miyamoto Wataru
Shimadzu Corporation, Medical System Division

Clinical Utility of RSM-DSA for Lower Extremity intervention (PDF 4.03MB)

Mr. Kazuaki Kataoka
Department of Cardiovascular Medicine, Kansai Denryoku Hospital

Experiences Using an Angiography System with a 17 x 17 Inch FPD
- CT-Like Imaging of the Neck and Abdomen-
(PDF 7.04MB)

Mr. Ichiro Sakamoto,
Department of Radiology,
University Hospital,
Kyoto Prefectural University of Medicine

Luncheon Seminar JRC2009 (PDF 7.01MB)

-Chairperson-
Kimihiko Kichikawa, MD
Professor and Chairman, Department of Radiology, Nara Medical University

-Session1-
"Utility of 3D Roadmap Function in Intracerebrovascular Treatment"
Hiroyuki Nakagawa, MD
Associate Professor, Department of Radiology, Nara Medical University

-Session2-
"Clinical Application of Direct-Conversion FPD System:Centering on the Latest CT-Like images"
Yukunori Korogi, MD
Professor and Chairman, Department of Radiology, University of
Occupational and Environmental Health

Experience of Using BRANSIST safire Dual-Plane System (PDF 7.23MB)

Mr. Toru Hiraoka
Department of Radiology, Oita Red Cross Hospital

Experience of Using the BRANSIST safire VC17 Angiography System Equipped with a 17 x 17-inch FPD (PDF2.9MB)

Mr.Katsutaka Hiratsuna
Department of Radiological Technology, Kainan Hospital
