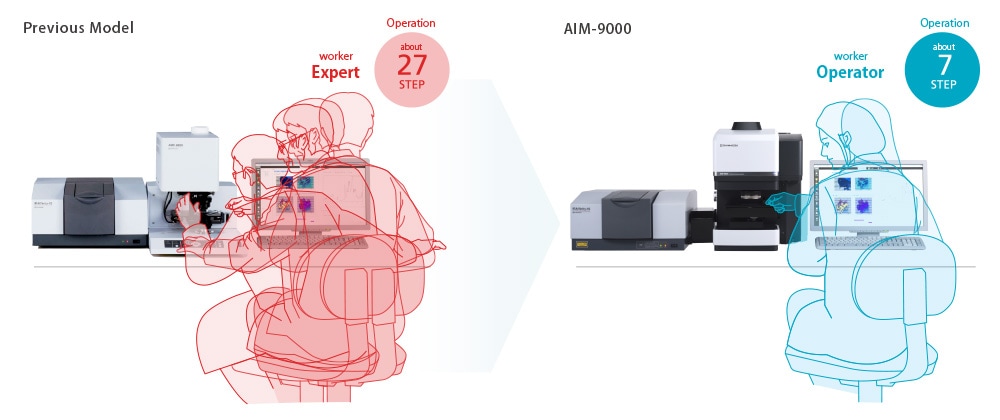

The system is designed to support analysts from various perspectives in three steps, (1) observe, (2) measure, and (3) analyze. In (1) observe, a large space is provided on the right side of the instrument so that operators can perform all necessary operations in front of the computer. In (2) measure, operations can now be performed simply by using the computer software once a sample is placed on the sample stage, instead of operating the buttons on the instrument and computer software alternately. In (3) analyze, complicated analyses can now be performed via simple steps. For example, related functions are automatically displayed.

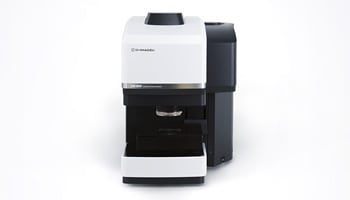

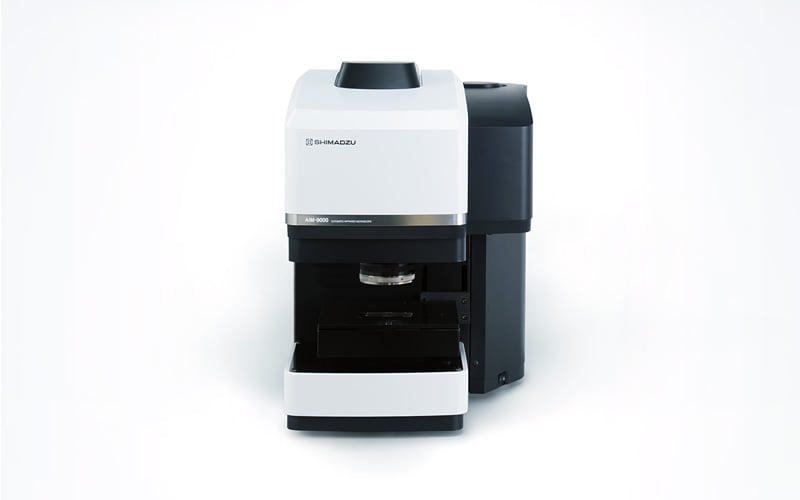

The appearance is designed to project a feeling of precision and luxury that harmonizes with existing instruments that the system is being used with. High usability is also provided through securing space for operations to set samples and placing most maintenance sections in an accessible area.

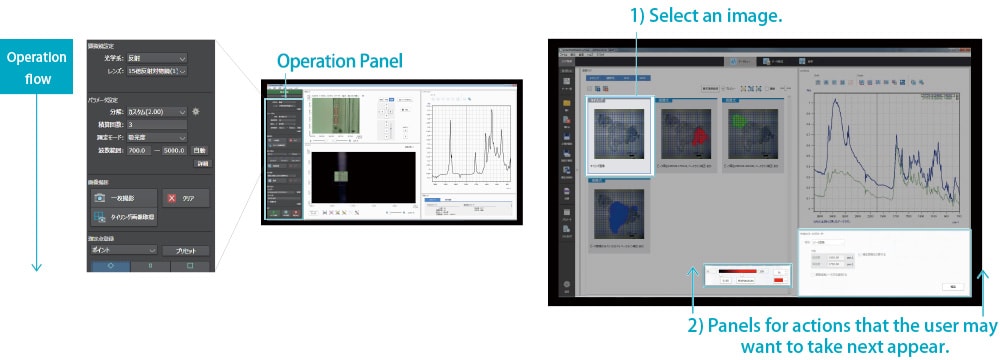

Measurement and analysis using computer software tend to be complicated because they involve many steps. By arranging the buttons in sequence according to the steps of the workflow, automatically displaying the operation button class related to the function being executed, and displaying guidance for the user, we made the layout and operation intuitive. Further, graphics are simple and easy to understand so that analysts can focus on microscopic images and analysis results which they want to pay attention to the most.
