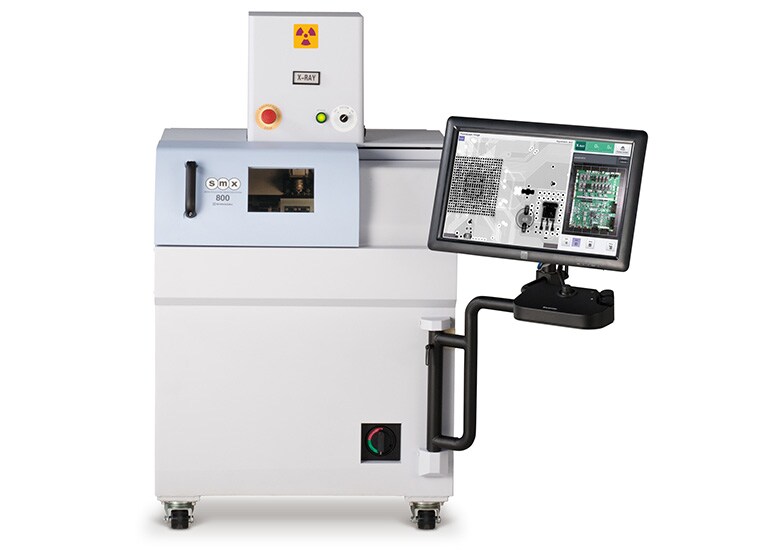

SMX-800
Micro-focus X-Ray Inspection System

High efficiency is often required for quality control applications. The SMX-800 is a system developed specially to meet such needs, comprising a touch screen display, a joystick, an intuitive user interface, and a newly designed high-speed stage, which reduces the time required for launching the software before inspections. It allows anyone to simply and rapidly detect minor defects in the circuit boards and electronics.
Features
-
Operations such as positioning, zoom-in and zoom-out can be performed directly by touching the large touch screen, enabling anyone to operate the system immediately and improve efficiency.
-
The inspection procedure is simplified as much as possible, from sample placement to rapid movement to the inspection positions, which significantly shortens the inspection time.
-
Smart Design for Practical Efficiency
All operations can be performed within finger reach to minimize wasted movements and avoid unnecessary waste of time. -
Safety Assurance
During X-ray irradiation, an electromagnetic lock prevents opening the front door. In addition, to ensure... -
Teaching
Panoramic Image -
More vivid and undistorted images can be obtained compared to images taken by analog cameras today.
