1. For over 65 years, Shimadzu Corporation has delivered gas chromatograph (GC) instruments and solutions. These support detection of low amount components and reliable data generation in the chemical, pharmaceutical and various market fields. Amid customer demands change, we keep innovating and applying new technologies into our products. Additionally, we have collaborated with many knowledgeable scientists and produced dedicated GC systems.

   In 1970, we released our first gas chromatograph mass spectrometer, GCMS-9000 which was a magnetic sector type mass spectrometer, in cooperation with Swedish company, LKB Instruments, Inc. Then, we achieved a computational operation system and introduced our own quadrupole type gas chromatograph mass spectrometer (GC-MS). GC-MS is mainly used for environmental, food, forensic and chemical markets because their samples are very complex, and require higher selectivity.
   In 2020, we reached  50 years anniversary and our triple quadrupole GC-MS was selected for an anti- doping test for the international sports games.

   • Read the Application

   In 2023, we released brand new GC and GC-MS systems. Those have superior compactness and easy-to-use features, which will bring more benefits and possibilities to your labs.



1.

   Shimadzu Corporation announces the release of the Brevis GC-2050 gas chromatograph. This instrument provides both productivity improvements and space savings while maintaining a high level of basic functionality and expandability of optional products.

Features

1. 1. Utilization of Laboratory Environments where Space is Limited

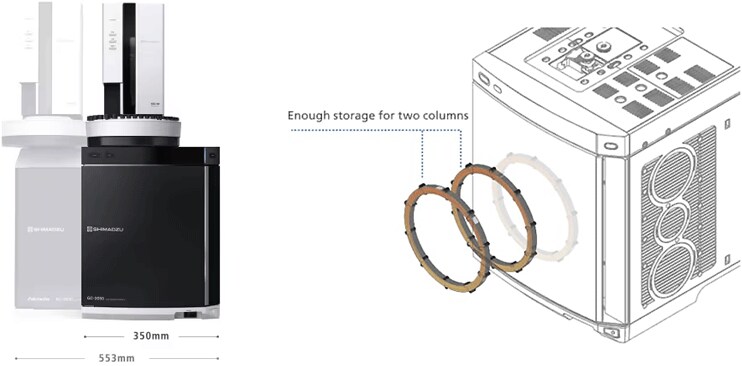

   This product achieves a space saving width of just 350 mm. It is 35 % narrower in comparison to the width of the existing Nexis GC-2030.

   Additionally, despite its compact size, it can accommodate a standard capillary column and double productivity by simultaneously analyzing samples on two analytical lines. This system is the world’s narrowest system that can analyze two concurrent analyses.



2. 2. Highly Expandable to Satisfy Laboratory Needs

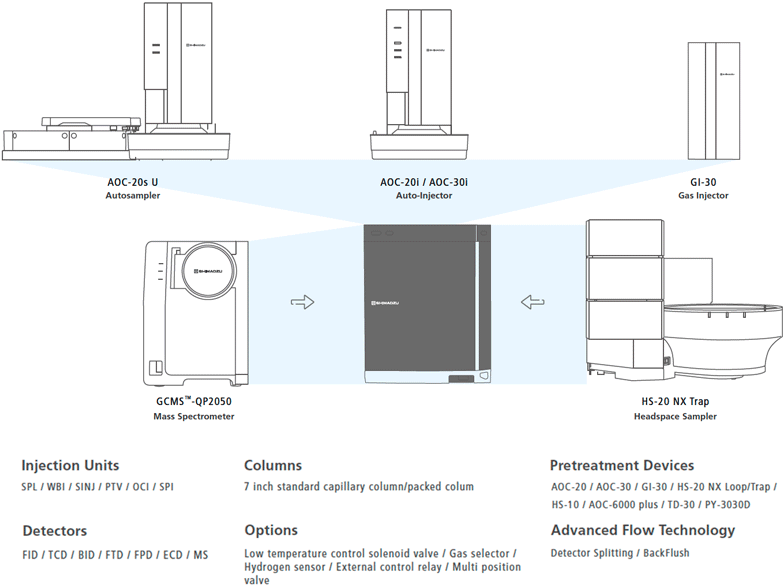

   A flexible system configuration is supported. Existing analytical methods and consumables can be seamlessly transitioned to the Brevis GC-2050 without being restricted by device configurations.



3. 3. ECO Idling: Making Your Usual Analysis Eco-Friendly

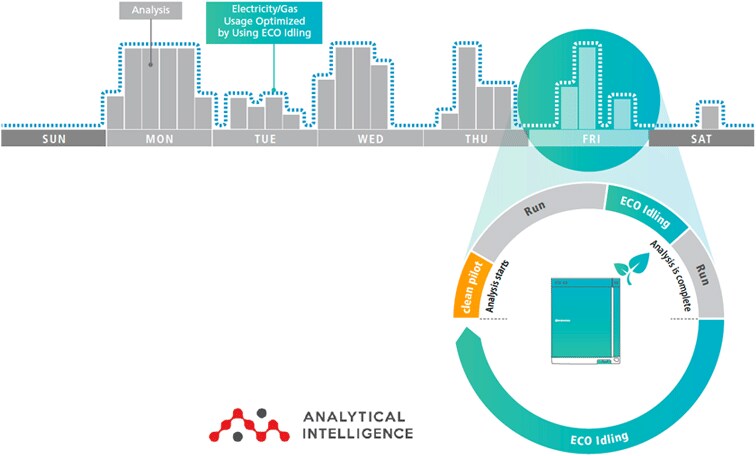

   The ECO Idling function maintains GC’ s accurate analytical performance as usual during analysis, and automatically switches to an energy-saving status when not analyzing. It learns the analysis patterns, visualizes the amount of weekly analysis work, and can also propose an eco operation schedule to laboratory chemists.



1.

   The business environments and needs involved in analysis work change on a continual basis. The next-generation GCMS-QP2050 gas chromatograph mass spectrometer, with its accumulation of impressive Shimadzu technology, will lead the way forward. New value is provided by hardware boasting astounding reliability and stability, and easy-to-operate software equipped with superior automated technology.

Features

1. 1. Robust Engineering Minimizes Maintenance

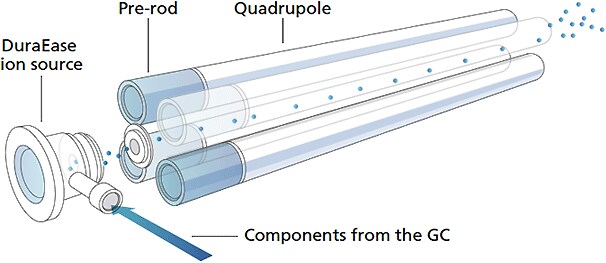

   Contamination-Resistant Ion Optical SystemA contamination-resistant ion optical system in the GCMS-QP2050 keeps the frequency of maintenance to a minimum while also enabling highly reliable measurements to be performed for an extended period.



   DuraEase Ion SourceThe structure of the next-generation DuraEase ion source is inert and achieves a uniform temperature distribution, resulting in high sensitivity and exceptional durability.

   Long-Life FilamentThe newly developed long-life filament has an operating life at least five times longer than conventional filaments. There are no concerns about re-analysis or downtime due to sudden filament burnout.

   Quadrupole Rods with Pre-RodThe built-in pre-rod allows only the ions to efficiently pass through, limiting contamination of the quadrupole. In addition, because heating to prevent contamination is not required, it is maintenance-free.



2. 2. Easy Maintenance

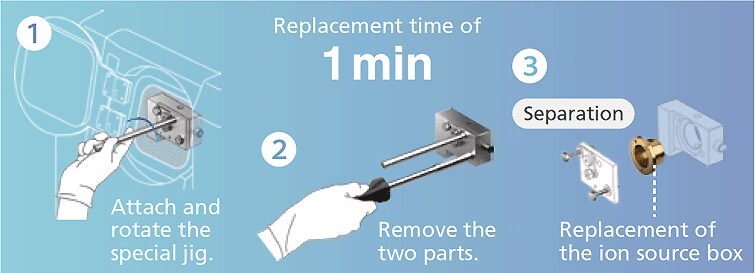

   Ion Source Maintenance Takes Just One MinuteThe DuraEase ion source completely re-imagines the conventional ion source to enable more convenient maintenance. The ion source is disposable and no cleaning is required, so maintenance is finished in just one minute.



   Easy Startup and Shutdown from the Touch PanelThe vacuum system can be turned ON/OFF and Easy sTop can be performed from the GC touch panel. Operations from a personal computer are not required, so maintenance of the GC injection port, column, and ion source can proceed with ease.

3. 3. A Flexible Fit for Laboratories

   Remote System AccessThe system can be operated from a personal computer or tablet on the network via a LAN connection. Additionally, analysis and instrument status can be checked while away from the laboratory.

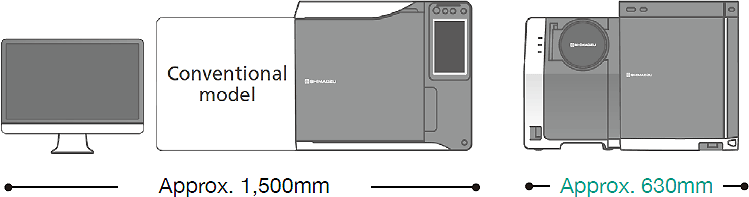

   Compact Design Fits AnywhereThe GCMS-QP2050 saves on space. With remote access, there is no need to install a personal computer beside the instrument. This enables a flexible layout in the laboratory.
