Not for use in diagnostic procedures for human. For rese arch use only animal.
Introduction of a quantitative microsampling device
Microsampling Wing™ × Microsampling Windmill™
The MSW2™ series offer tools for easily fractionating a predetermined amount of plasma from a small amount of blood, for nonclinical animal experiments.
The MSW2™ is designed based on the principles of the 3Rs (Replacement, Reduction and Refinement) to minimize the burden to animals.
Also, since the entire process, from sampling to fractionation of a predetermined amount of plasma, can be completed with devices only, so human errors are minimized.

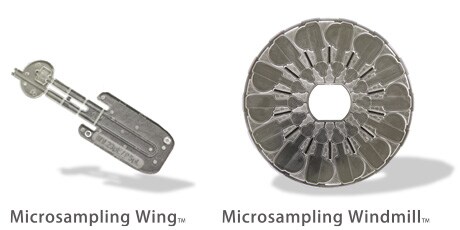

The MSW2™ consists of the Microsampling Wing™ blood sampling device, and the Microsampling Windmill™, a specialized holder that allows for efficient use of the Microsampling Wing™.
Features
- Easy microsampling
Procedures from sampling to quantitative fractionation are possible without any high-level training. - Reduce microsampling process
Since Microsampling Wing™ has a high solvent resistance, re-measurement is not required before
deproteination and other processes subsequent to quantitative fractionation. - Enhanced productivity
A Microsampling Windmill™ simultaneously centrifuges and puts up to 14 Microsampling Wing™s.
Products

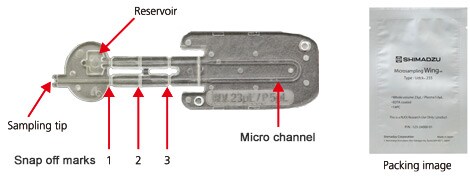

■ Microsampling Wing™
- Sampling by capillary force
- EDTA-2Na coated
- No necessary seal during centrifugation

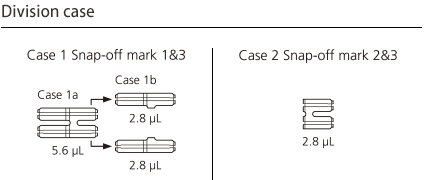

- Chip(s) which has extact volume can be snapped off with fingertips

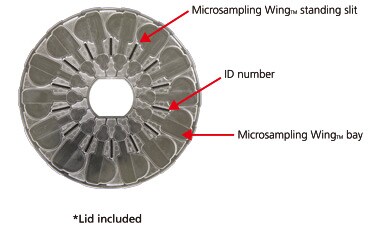

■ Microsampling Windmill™
- Holds up to 14 Microsampling Wing™s at a time
- The Microsampling Windmill™ with the microsampling Wing™s can be centrifuged*1 and stored
- Can be stacked
- *1 A specialized centrifuge rotor is required.
Specifications
| Name | Microsampling Wing™ |
|---|---|
| Type | Udck™ 235 |
| Material | Olefin polymer |
| Whole volume | 23 μL |
| Plasma zone volume *Only for reference and not guaranteed |
5.6 μL（2.8 μL+2.8 μL) |
| Anticoagulant | EDTA-2Na |
| Size | 45 mm×13 mm×t2 mm |
| Method of storage | Room temperature, keep away from direct sunlight |
The expiration date of Microsampling Wing™ is indicated on the package.
Not sterilized.
| Name | Microsampling Windmill™ |
|---|---|
| Type | Udck™ |
| Material | Polycarbonate |
| The number of devices | 14 pcs (maximum loading No.) |
| Size | φ150 mm×t6 mm |
| Others | ・Lid included ・Can be stacked |
| Method of storage | Room temperature, keep away from direct sunlight |
Technical Report
| No. | Title | Content | |
|---|---|---|---|
| U815-1001 | The sampling precision | This report shows that the sampling precise by determinating the concentration of a chemical compound spiked in plasma. | Download (280 KB) |

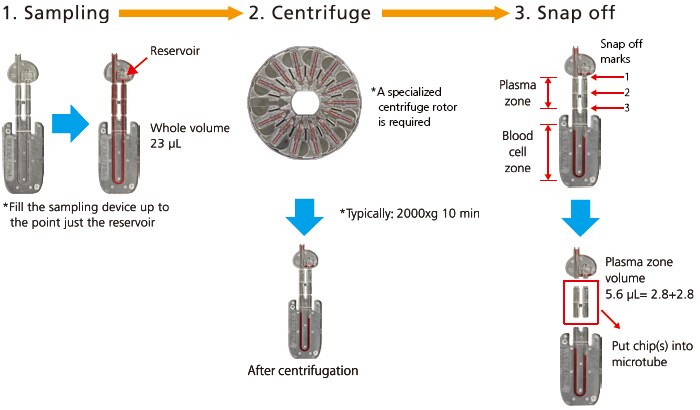

Method of use
Products
| Microsampling Wing™ | |
|---|---|
| Type | Udck™ 235 |
| Item (P/N) | 123-24000-01 |
| Quantity | 1 pack (14 pcs/pack) |
| Minimum Lot | 1 pack |
| Microsampling Windmill™ | |
|---|---|
| Type | Udck™ |
| Item (P/N) | 123-24025 |
| Quantity | 1 pack (10 pcs/pack) |
| Minimum Lot | 1 pack |
| Tube for Centrifugation | |
|---|---|
| Type | – |
| Item (P/N) | 123-24033 |
| Quantity | 1 pack (14 pcs/pack) |
| Minimum Lot | 1 pack |
*Refer to the instruction manual M815-E012 for instructions on how to use the tube for centrifugation
MSW2 ™, Microsampling Wing™, Microsampling Windmill™ and Udck™ are either registered trademarks or trademarks of Shimadzu Corporation in Japan and/or other countries.
For Research Use Only. Not for use in diagnostic procedures.
