M-1NEII
Ideal for precisely measuring two-plane unbalances in small workpieces.

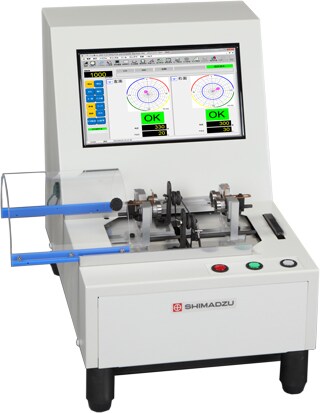

Shimadzu M-1K dynamic balancing machine offers outstanding precision, reliability and ease of use, and specialized for unbalance measurement of small motor rotors. This two-plane balancing machine is small enough to be used on a tabletop.
Features
- The compact design united with the measuring device, the main frame of a personal computer, the liquid crystal display monitor, and the main frame of a unit.
- Touch-panel monitor adoption realizes easy operability.
- Operating system and an application program adopt Compact Flash strong against particulates.
Specifications
| Model | M-1NEII |
|---|---|
| Workpiece Weight (kg) | 0.01 to 0.6 |
| Max. Workpiece Diameter (mm) | 60 |
| Testing Speed (rpm) | 1000 to 3600 (Depending on outer diameter of work piece) |
| Drive motor (w) | 5 phase pulse motor |
| Min. Achievable residual unbalance (μm) | 0.1 (mass eccentricity for a work piece of max. weight) |
| Min. Achievable Unbalanceon One-Plane (g･mm) | 0.01 |
| Size (W×D×H mm) | 300×418×440 |
| Weight (kg) | 30 |
| Power supply | Single-phase AC100V to 240V 10A 2KVA |
Note: Specifications and appearance are subject to change without notice.
