- Ensures reliable feed under high suction pressures.

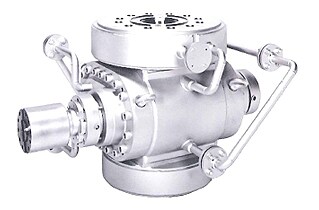

- This gear pump is used as a booster pump in environments with suction pressures of over 1 MPaG.
Specifications
| Discharge Pressure: | Max. 30 MPaG (300 kgf/cm2G) |
|---|---|
| Suction Pressure: | 0 to 5 MPaG (0 to 50 kgf/cm2G) |
| Differential Pressure | Max. 25MPaG (250 kgf/cm2G) |
| Viscosity: | 100 to 20,000 P (1,000 to 200,000 poise) |
| Temperature: | Max. 360°C |
Capacities and Dimensions
Unit(mm)
| Pump Model | Capacity cm3/rev | Bore | ΦD | Φd | L | |
|---|---|---|---|---|---|---|
| Inlet | Outlet | |||||
| SBJ560 | 560 | 125A/80A | 125A/80A | 80 | 80 | 610 |
| 1000 | 1000 | 150A/100A | 125A/80A | 100 | 80 | 610 |
| 1600 | 1600 | 150A/100A | 125A/80A | 100 | 80 | 630 |
| 2000 | 2000 | 150A/100A | 150A/100A | 100 | 100 | 650 |
| 3150 | 3150 | 200A/150A | 200A/125A | 150 | 125 | 680 |
| 4000 | 4000 | 200A/150A | 200A/150A | 150 | 150 | 700 |
| 6300 | 6300 | 250A/200A | 250A/200 | 200 | 200 | 820 |
| 7200 | 7200 | 250A/200A | 250A/200 | 200 | 200 | 820 |
| 8000 | 8000 | 250A/200A | 250A/200 | 200 | 200 | 850 |
| 11000 | 11000 | 250A/200A | 250A/200 | 200 | 200 | 930 |
| 13000 | 13000 | 250A/200A | 250A/200 | 200 | 200 | 950 |
*Please note the above capacity (cm3/rev) is not theoretical but equivalent value for covering all same model.
