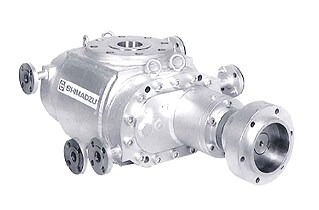

- Compact model provides discharge pressures up to 7 MPaG. Ideal for solutions, oligomers and other low-viscosity liquids.
- Inline model can be operated vertically or horizontally.
Specifications
| Discharge Pressure: | 0 to 7 MPaG (0 to 70 kgf/cm2G) |
|---|---|
| Suction Pressure: | 0 to 1MPaG (0 to 10 kgf/cm2G) |
| Viscosity: | 0.3 to 20,000 Pa･s (0.03 to 200,000 poise) |
| Temperature: | Max. 360°C |
Model and Capacity
*As an example
| Model | Spec. volume (cm3/rev) |
Capacity (m3/day) |
Bore* | |
|---|---|---|---|---|
| Inlet | Outlet | |||
| 1000 | 1040 | 60~599 | 125A | 80A |
| 1600 | 1660 | 72~717 | 150A | 150A |
| 2000 | 2080 | 90~898 | 150A | 150A |
| 3150 | 3270 | 141~1412 | 200A | 200A |
| 4000 | 4160 | 180~1797 | 200A | 200A |
| 6300 | 6600 | 238~2376 | 250A | 250A |
| 8000 | 8390 | 302~3020 | 300A | 200A |
| 9500 | 9750 | 323~3229 | 400A | 200A |
| 11000 | 11550 | 333~3326 | 400A | 200A |
| 15000 | 15880 | 411~4116 | 400A | 250A |
| 18000 | 18400 | 450~4504 | 350A | 350A |
| 35000 | 37000 | 799~7992 | 500A | 300A |
*The bore sizes above are only for reference and can be changed upon request.
*The capacities are only for reference.
These capacities change depending on the specification of the liquid and may not be satisfied under all conditions.
Please contact Shimadzu Industrial Systems for specific applications.
