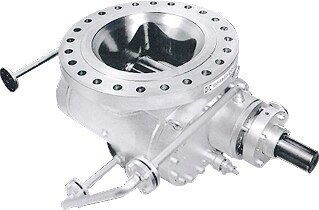

- SBJV gear pumps are installed under a reactor to discharge various types of polymers, such as PET and PS.
- High-pressure model raises pressure from vacuum to 25 MPaG (250 bar) in a single step.
- Large-diameter suction port is perfect for extracting high-viscosity polymers.
Specifications
| Discharge Pressure: | Max. 25 MPaG (250 kgf/cm2G) |
|---|---|
| Suction Pressure: | Full vacuum to 1 MPaG (10 kgf/cm2G) |
| Viscosity: | 0.1 - 20,000 Pa･s (1 to 200,000 poise) |
| Temperature: | Max. 360°C |
*We can design even higher pressure pumps depending on the conditions.
Model and Capacity
*As an example
| Model | Spec. volume (cm3/rev) |
Capacity (m3/day) |
Bore* | |
|---|---|---|---|---|
| Inlet | Outlet | |||
| 100 | 100 | 4-10 | 200A/150A | 50A |
| 200 | 200 | 8-20 | 200A/150A | 80A |
| 315 | 320 | 13-32 | 250A/200A | 80A |
| 560 | 570 | 24-57 | 250A/200A | 100A |
| 1000 | 1030 | 44-103 | 300A/250A | 125A |
| 1600 | 1640 | 59-141 | 350A/300A | 150A |
| 2000 | 2060 | 74-178 | 400A/350A | 150A |
| 3150 | 3240 | 93-256 | 450A/400A | 150A |
| 4000 | 4120 | 118-326 | 450A/400A | 150A |
| 6300 | 6490 | 140-467 | 450A/400A | 200A |
| 7200 | 7410 | 160-533 | 450A/400A | 200A |
| 8000 | 8240 | 177-593 | 450A/400A | 200A |
| 11000 | 11320 | 228-652 | 650A/600A | 250A |
| 13000 | 13390 | 250-771 | 700A/600A | 250A/200A |
| 15000 | 15700 | 271-791 | 850A/800A | 300A/250A |
| 20000 | 20500 | 324-1033 | 850A/800A | 300A |
| 25000 | 25150 | 362-1267 | 950A/900A | 400A |
*The bore sizes above are only for reference and can be changed upon request.
*The capacities are only for reference.
These capacities change depending on the specification of the liquid and may not be satisfied under all conditions.
Please contact Shimadzu Industrial Systems for specific applications.
