Shimadzu Helium Leak DetectorMSE-2400

MSE-2400


Transportable, general-purpose model suitable for various applications ranging from equipment maintenance to permanent installation such as OEM integration.



Specifications MSE-2400

Sensitivity 10-13~100Pa・m3/s[He]
Detecton gas Hydrogen/Helium gas
Analyzer tube 270̊ magnetic deflecting type (Flux density : 0.17T)
Yttria-coated iridium filament (2 pcs.)
Automatic tuning sensitivity calibration with temperature compensation
Vacuum System Molecular drag pump specially designed for leak detector (Structure of exhaust 70L/s)
Rotary vacuum pump specially designed for leak detector (30L/min 50Hz)
Pirani gage : Provided in two lines
Test Port Maximum pressure 1000Pa
Connection port : NW25KF
Helium Pumping Speed 3L/s
Weight Main unit : approx. 49kg
Power Requirements Specify one of the following when placing an order : 100/110/115/120/200/220/230/240VAC ±10%, 400VA, 50/60Hz
Input/output RS-232C interface
EXT-UNIT interface (external unit)

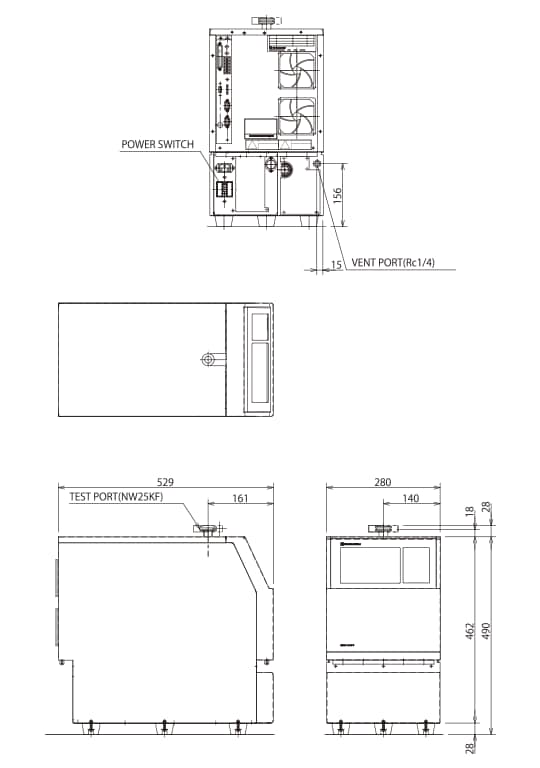

Dimensions MSE-2400

MSE-2400
