MC500 is for middle range Ethernet communication (up to 80m)

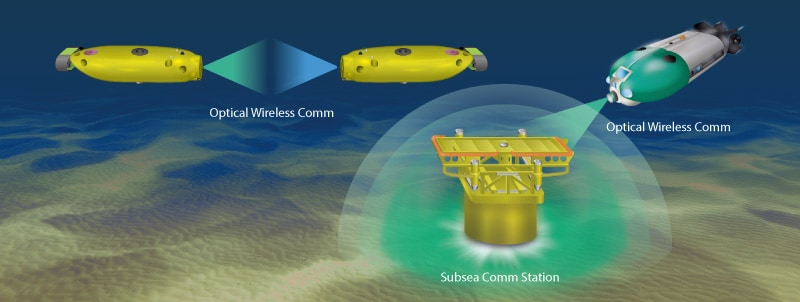

Applications
- Remote monitoring and control operation of underwater vehicle without latency
- Data harvesting and collection between underwater vehicles and subsea assets
Features
- High-speed communication up to 80m
- Communication speed is switchable (1Mbps, 10Mbps and 20Mbps)
- Full-duplex communication
- Up to 3,000m depth operation
- Can be installed on underwater vehicles and subsea assets
Specifications
| Communication | Data rate | 1Mbps / 10Mbps / 20Mbps (Switchable) |
|---|---|---|
| Range | 80m (attenuation rate 0.3dB/m) | |
| Interface | 100BASE-TX | |
| Beam Angle | 40 degrees | |
| Electrical feature *1 | Power Consumption | ≦90W |
| Supply voltage | DC24V | |
| Interface | SubConn: DBH13M | |
| Optical feature | Wavelength | 445nm(Blue), 525nm(Green) |
| Laser power | Blue: 17.5W Green: 9.0W |
|
| Laser class | Class 4 JIS C 6802:2018 (IEC 60825-1:2014,ISH1,ISH2) | |
| Weight in air *1 | 9kg | |
| Weight in water *2 | 5.5kg | |
| Temperature range | Operating temperature | -5°C to 35°C |
| Storage temperature | -20°C to 60°C | |
| Water pressure resistance | ≧31Mpa(3,000m) | |
- *1 Specifications are of each blue and green unit.
*2 Weight in water is a reference value.
Specifications are subject to change without notice.

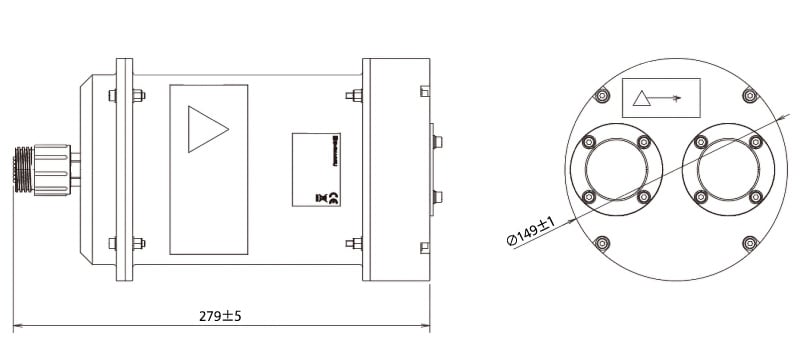

Dimensions
- Each blue and green unit
- Excluding accessories
(Units: mm)
