- This small curvature grating has dimensions of 15 mm x 15 mm and a focal length of either 25 mm or 35 mm. This grating helps to miniaturize the spectrometer design.
- The gratings are produced with stable quality by precisely replicating from the master gratings with low stray light which are made by holographic exposure method.
- Specifications can be customized according to your requirements.

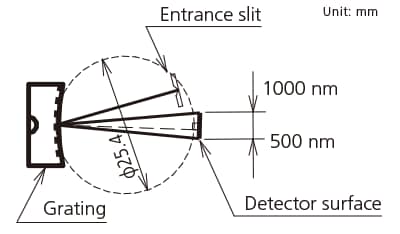

Example of Optical Mount
Mounting the entrance and exit slits on the Roland circle enables a simple optical system to be built without imaging elements such as concave mirrors.
E0360-01
This diffraction grating can be used in both monochromators and polychromators.
Optical mounts for all products can be viewed in the Standard Product List.

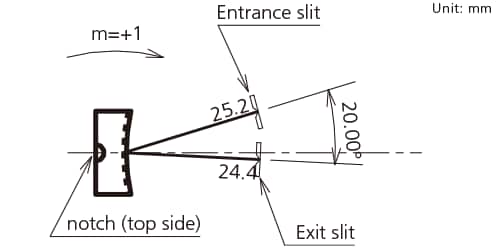

Monochromator
E0360-01

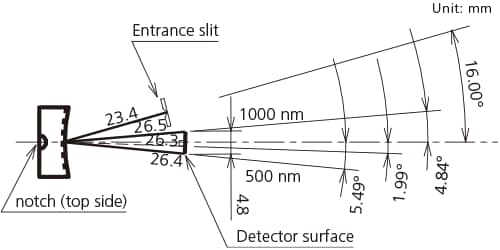

Polychromator
E0360-01
Standard Product List
*Contact us for the diffraction efficiency curve and the imaging characteristics.
(*Click to launch the email software)
| Code number |
Wavelength range(nm) |
Groove density (grooves/mm) |
Nominal blaze wavelength (nm) |
Relative efficiency minimum (%) |
Nominal curvature radius (mm) |
Optical Mount |
|---|---|---|---|---|---|---|
| E0360-01 | 500-1000 | 360 | HG(680) | 25 | 25.4 | |
| E0360-02 | 400-900 | HG(550) | 25 | 35.0 | ||
| E0360-03 | 400-900 | 600 | 50 | 35.0 | ||
| E0360-04 | 600-1100 | 800 | 50 | 35.0 |
Standard Specifications
| Grating Type | Equally spaced straight-groove replica grating |
|---|---|
| Blank material | Soda glass |
| Outside dimension(mm) | 15±0.2(W)×15±0.2(H) |
| Center thickness(mm) | 5±0.5(T) |
| Effective area(mm) | Φ10 |
| Coating | Aluminum（Aℓ） |
| Scratches and digs | 80-50 (in accordance with MIL-O-1380A) |
- * The grating grooves are formed with resin.
- * The external appearances and specifications are subject to change without notice.
- * Nominal blaze wavelength is the wavelength of the maximum diffraction efficiency (target) with the standard optical mounting. No one to guarantee the wavelength of the maximum diffraction efficiency. Blazing is performed with an ion-beam etching technology.
- * Relative efficiency minimum is at the nominal blaze wavelength.
- * The relative efficiency is checked on the optical mount (2 K=35 degrees).
- * Nominal curvature radius is designed one and not guaranteed.

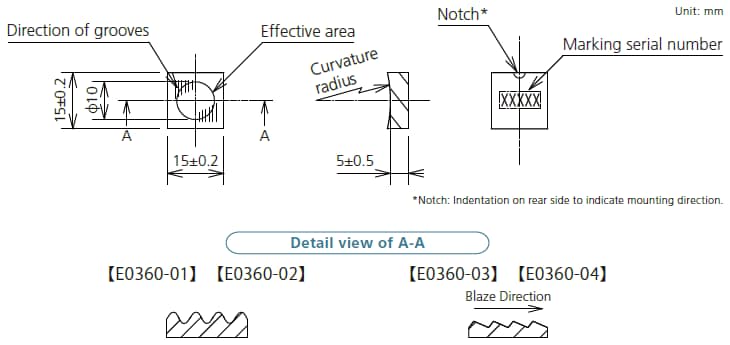

Outline Drawing
