Fourier Transform Infrared Spectrophotometer

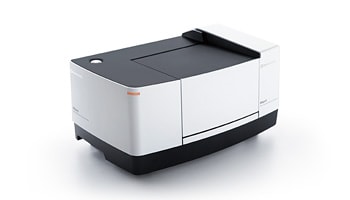

The IRSpirit is a compact yet highly expandable infrared spectrophotometer. Infrared spectrometers are used for quality assurance testing in pharmaceutical and chemical fields or for substance identification by academic and research institutions, for example, based on qualitative analysis of unknown samples or molecular structures from the unique infrared absorption patterns exhibited by each substance. Despite the compact design that makes it easy to carry, it remains compatible with the many accessories used with current models to ensure compatibility with a wide variety of applications.
The IRSpirit is a compact yet highly expandable infrared spectrophotometer. Infrared spectrometers are used for quality assurance testing in pharmaceutical and chemical fields or for substance identification by academic and research institutions, for example, based on qualitative analysis of unknown samples or molecular structures from the unique infrared absorption patterns exhibited by each substance. Despite the compact design that makes it easy to carry, it remains compatible with the many accessories used with current models to ensure compatibility with a wide variety of applications.
Compact Design is Compatible with User Operating Environments
The ability to fit the system in tight spaces is a significant benefit for laboratories with several instruments installed side-by-side or where chemical synthesis work involves having a variety of samples and laboratory equipment laid out, for example. Therefore, the sample compartment, start switch, and humidity indicator are accessible from either the front or side of the system.
The location of user-accessible parts and the exterior color were designed to enable intuitive operability. Parts accessed by the user, to set samples or lift the instrument, are dark gray, to draw attention to them by accentuating the contrast with the white of the main body. All operations performed during analysis, such as setting samples, operating the power switch, replacing accessories can be performed from the flat top surface, which facilitates user operation. The flat top surface also allows large samples to be analyzed directly using a dedicated attenuated total reflection (ATR) accessory without the need to cut them and helps improve operability.
The overall shape features a compact design that minimizes the enclosure surface while reflecting the interior structure of the instrument. The instrument footprint is less than 1/3 the previous model, even though the sample compartment width is unchanged. Despite the portable design, the sample compartment has the same width as the previous model, which means it is big enough to install the many accessories available for the current model.

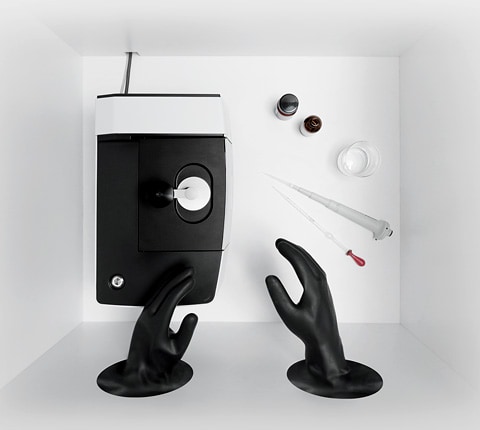

Fits in a Glove Box or Other Small Spaces

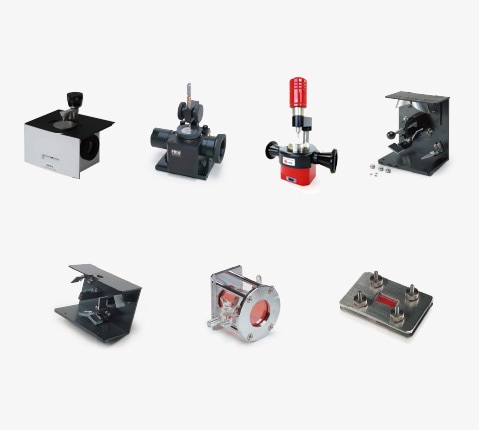

Accessories for Current Models
The most important factor when designing analytical products is deciding the distance between the user and the product and between the product and the space it is being used in. A perfect sense of distance, not too far and not too close, together with user-friendly operability and trustworthy analytical results provides a user with great peace of mind.
Product Designer：Hyeri Kang
October 04,2019
