Mobile X-Ray System
The MobileDaRt Evolution MX8 version system is a digital mobile X-ray system intended for examining patients in their room during regular hospital rounds or in applications with high urgency, such as in emergency rooms or neonatal intensive care units. It is designed to be moved near the patient to obtain X-ray images of various parts of the body for diagnosing symptoms of bones or internal organs in hospitalized patients that cannot be easily moved to the radiography room. The MX8 features a more compact front column than the previous model, which makes it easier for radiological technologists to confidently maneuver the unit throughout the hospital.
The MobileDaRt Evolution MX8 version system is a digital mobile X-ray system intended for examining patients in their room during regular hospital rounds or in applications with high urgency, such as in emergency rooms or neonatal intensive care units. It is designed to be moved near the patient to obtain X-ray images of various parts of the body for diagnosing symptoms of bones or internal organs in hospitalized patients that cannot be easily moved to the radiography room. The MX8 features a more compact front column than the previous model, which makes it easier for radiological technologists to confidently maneuver the unit throughout the hospital.
With an Operating Feel Designed for Comfort and a Soft Look, it Provides a Comfortable Examination Experience for Both the Technologist and Patient.
To minimize the anxiety patients feel during examinations, curved lines were used to provide a softer look and convey a visually gentle impression. The elliptical graphic on the sides not only gives it a unique look, but also draws attention to that area to achieve a cleaner and more compact appearance.

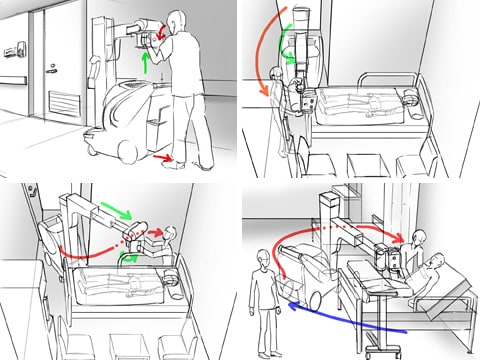

To ensure technologists can operate the system comfortably, the shape and materials used for user-contact areas were selected very carefully. From the beginning of the development process, virtual reality was used to verify that the handle and switches are positioned for smooth operability. The tactile feel of the contours and materials were optimized using a 3D printer or multiple prototypes. In terms of the user interface screen, in addition to adjusting the contrast level to improve the visibility of acquired images, the screen was also modified to better integrate it with the layout of other instruments and prevent user confusion.
The system color scheme was significantly updated from the previous model. The bright radiant white and striking gray base colors are intended to brighten up even the spirits of patients in healthcare spaces. A blue accent color is used again to project a sense of newness and cleanliness, while also providing a sense of continuity with the brand image. Furthermore, before settling on the current coloring, styling details were also reviewed many times in an effort to better accentuate the system’s colors.
Examinations at hospitals always involve fear. Therefore, to help ease those fears even a little bit, we feel our job should be to provide a design that makes medical equipment less intimidating and provides a sense of trust and peace of mind. We hope our designs contribute to creating a place where everyone involved in healthcare can smile.
Product Designer: Tomoya Sugie
July 30,2019
