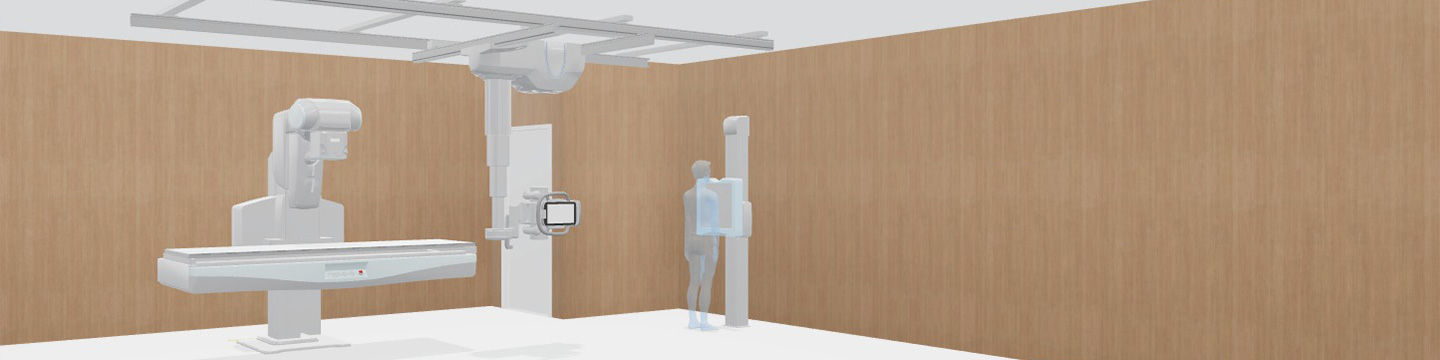

This is a 3D simulation tool that helps you plan your own X-ray room and simulate operation easily on the screen.

Systems :
Radiographic system : RADspeed Pro (CH-200/BK-200/BR-120[T])
Universal R/F system : SONIALVISION G4 / FLEXAVISION
Patient-side R/F system : FLUOROspeed X1 edition

The device's dimensions and motion range are designed to approximate actual specifications, but accuracy is not guaranteed. It also does not include all the components that come with the actual equipment.
When you add options to the ceiling-mounted X-ray tube support, you may actually have restrictions on its type and the layout, but it's not considered in this program.
Confirm with your sales representative about the layout and the restrictions when installing.

Important Notes

Create from a ready-made template

5 Steps

Step 1

Fix room size

Adjust the room size to yours and select the ceiling rails' length you want.

Step 2

Place items

Add our system components or other objects such as doors, boxes, monitors, then fix their places as desired.

Step 3

Simulate system operation

You can simulate our system's movements/operations.

Step 4

360° View

Enjoy 360 deg. walk-through view from anywhere in the room.

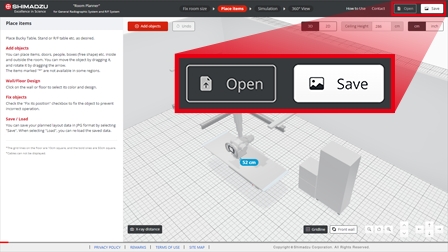

Step 5

Save / Open / Contact

You can save your planned layout data by "Save", and re-open to edit again that saved data by "Open". Then, please contact us if you need our further supports to finalize your room plan.

For more details, please refer to this "Room Planner Instruction Manual".

1. Important Notes

See https://www.shimadzu.com/med/planner/xray/remarks.html.

2. Required browser's conditions

This "Room Planner" will work on the following web browsers.

Windows

Microsoft EDGE

Google Chrome

Mac

Safari
