High diffraction efficiency
across a broad wavelength range
in VUV and soft X-ray applications
VGDG enables diffraction efficiency optimization through beam position adjustment while maintaining the low stray light characteristics of holographic gratings.
It is also known as Variable Groove Depth Grating.
Features
- High Diffraction Efficiency Across a Broad Wavelength Range
- Suppressed Unwanted Higher-Order Diffraction
- One Grating for a Wide Range of Operating Conditions

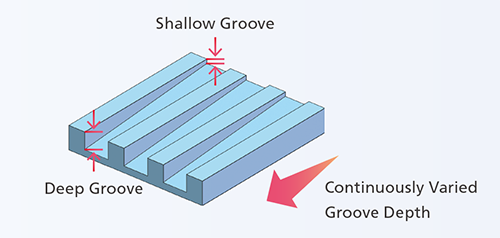

The groove depth of VGDG is continuously varied along the groove direction.
By adjusting the beam position on the grating, optimum diffraction efficiency can be achieved for the desired operating condition.
For detailed information and fabrication examples, please refer to the catalog.
Special Order
- Customized groove-depth profiles are proposed to meet specific application requirements.
- Compatible with Varied Line Spacing (VLS) grating designs.
- Directly fabricated on customer-specified substrates, including silicon and synthetic fused silica.
Applications
Synchrotron Radiation Facilities, High-Harmonic Generation (HHG) Research
Related Product
VGDG is derived from our Laminar-Type Diffraction Gratings for the Vacuum Ultraviolet (VUV) and Soft X-ray regions, with a continuously varying groove depth.
Please refer to the link below for available groove densities and coating options.
