Wedge Columns
Radial Flow Columns
The Wedge® column features the same radial-flow design as the SuperFlo column, enabling straightforward and predictable scale-up from laboratory studies to production scale chromatography. By combining the advantages of radial-flow and conventional axial-flow chromatography, it supports efficient process development, scale-up, and troubleshooting.
Simple Scale-Up Using the Wedge Column

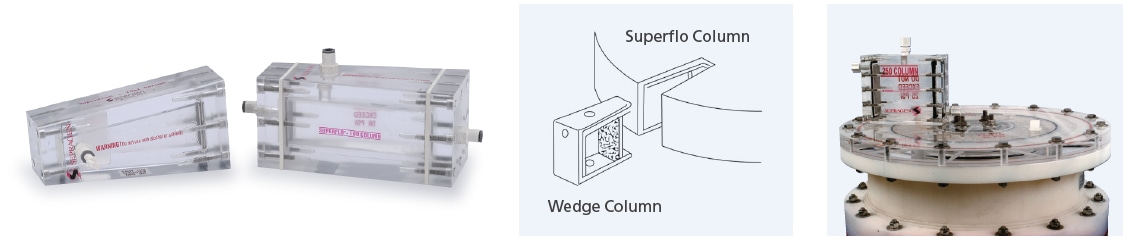

The Wedge column is designed for scale-up studies, featuring the same radial-flow structure as the SuperFlo column. It enables seamless scale-up to production scale. It can also be used to investigate production-scale issues by performing scale-down studies with a Wedge column and a small-scale chromatography system.
Example of Scale-Up to a SuperFlo Column
The following example demonstrates scale-up from a 400 mL Wedge column to a 12 L SuperFlo column. A seamless scale-up has been achieved, with the column size, sample volume, and flow rate all increased by a factor of 30.
-

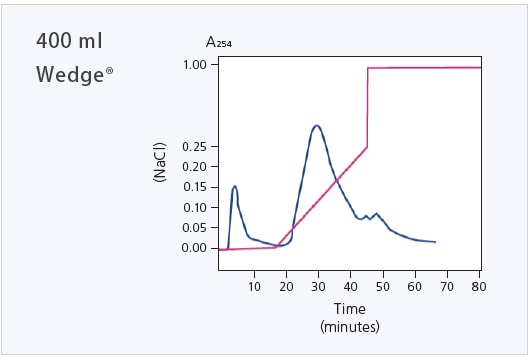

System QuantaSep 1000 Sample 20 mL bovine serum Flow Rate 95 mL/min Media DEAE Protein Content 7.1 grams/100 mL diluted serum Buffer 0.05 M Tris-HCl, pH 7.1 Gradient 0.25 M NaCl in Tris buffer -

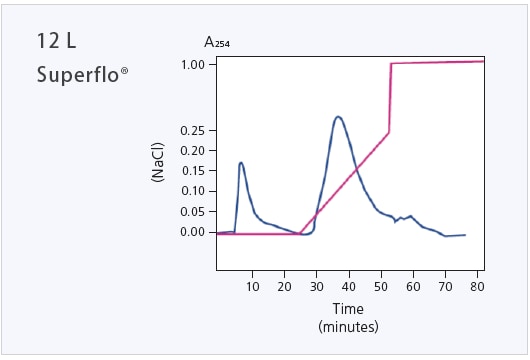

System QuantaSep 5L ISOLC Sample 600 mL bovine serum Flow Rate 2850 mL/min Media DEAE Protein Content 7.1 grams/100 mL diluted serum Buffer 0.05 M Tris-HCl, pH 7.1 Gradient 0.25 M NaCl in Tris buffer
Wedge Column Range

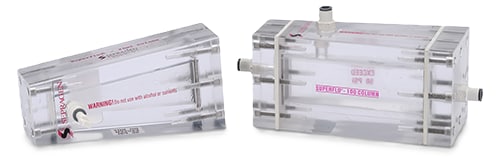

The Wedge column range includes two configurations: a standard model with a 10 cm bed height and the Wedge HiRes column with a 15 cm bed height. Both configurations are available in acrylic or stainless-steel constructions.
| Column Type | Column Body Material | Bed Height (cm) | Volume (mL) Lineup |
|---|---|---|---|
| Wedge column | Acrylic | 10 | 10, 20, 50, 100, 250, 500, 1000 |
| Stainless Steel | 100, 250, 500, 1000, 1500 | ||
| Wedge HiRes column | Acrylic | 15 | 20, 50, 100, 250, 500, 1000 |
| Stainless Steel | 100, 250, 500, 1000 |
