Others (HVG-1 hydride vapor generator parts, autosampler parts)

Last update: October 6, 2020

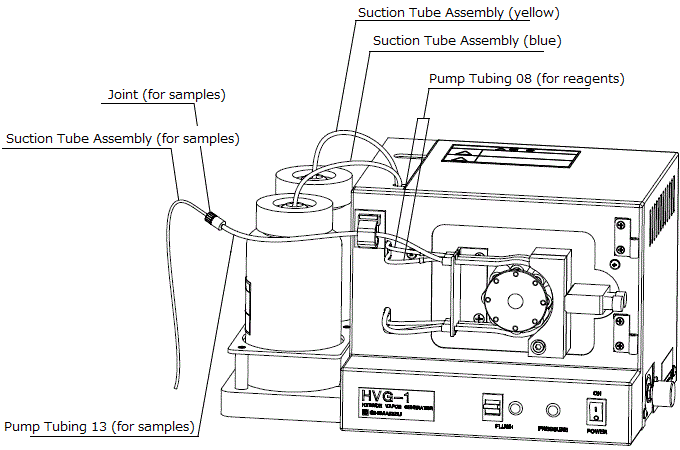

Hydride Vapor Generator Parts
Name P/N Appearance Qty Remarks
Absorption Cell 206-77607 1
Joint, for Reagents 206-17826-01 1 Has a different inner diameter, etc. from the joint for samples.
Joint, for Samples 206-17826-02 1 Has a different inner diameter, etc. from the joint for reagents.
Pump Tubing 08, for Reagents 208-90038-08 12 Orange bridge on the tube
Pump Tubing 13, for Samples 208-90038-13 12 Blue bridge on the tube
Reaction Coil Assembly 206-18037 1
Suction Tube Assembly, Blue 206-18036-02 1 For HCl, partially blue coating on the tube
Suction Tube Assembly, for Samples 206-18036-03 1
Suction Tube Assembly, Yellow 206-18036-01 1 For NaBH4, partial yellow coating on the tube
Autosampler Parts
Name P/N Qty Remarks Applicable models
Nozzle Assembly, F 1 For flame ASC-7000
ASK-7000
ASC-6100
ASK-6100
Nozzle Assembly, G 1 For flame single drop/furnace method ASC-7000
ASK-7000
ASC-6100
ASK-6100
Nozzle Assembly, HVG 1 A nozzle used when ASC-6100 and HVG-1 are interlocked ASC-7000
ASK-7000
ASC-6100
ASK-6100
Peristaltic Pump Tube 1 For flame single drop/furnace method ASC-7000
ASK-7000
ASC-6100
ASK-6100
Pipette Tip 1 For flame single drop/furnace method ASC-7000
ASK-7000
ASC-6100
ASK-6100
Tube Assembly, Pipette 1 For flame single drop/furnace method. A commercially-available 200 ml pipette tip can be used on the tip of the nozzle. ASC-7000
ASK-7000
Tube Assembly, Pipette 1 For flame single drop/furnace method. A commercially-available 200 ml pipette tip can be used on the tip of the nozzle. ASC-6100
ASK-6100
