Accessories for diffuse reflectance measurement

Last update: October 6, 2020

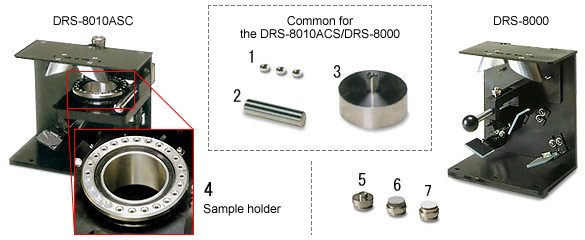

DRS-8000/8010ASC Diffuse Reflectance Attachment
Name P/N Appearance Qty Remarks Applicable models
Standard Mirror 206-62232-01 1 6:For optical adjustment DRS-8000
Standard Mirror 1 For optical adjustment DRS-8010
Obscured Mirror 206-62232-02 1 7:For optical adjustment DRS-8000
Obscured Mirror 1 For optical adjustment DRS-8010
Sample Holder 206-65234 1 4:Up to 24 samples can be set. DRS-8010
Sample Preparation Table 206-63950 1 3:For aluminum cups DRS-8000
DRS-8010
Sample Holding Rod 206-62595 1 2 DRS-8000
DRS-8010
Sample Holder, Φ5.8 206-18423-03 1 5 DRS-8000
Sample Holder, Φ4 206-18423-02 1 5 DRS-8000
Sample Holder, Φ2 206-18423-01 1 5 DRS-8000
Tweezers 1 150mm DRS-8010
SiC Sampler (option for the DRS-8000)
Name P/N Qty Remarks Applicable models
SiC Emery Paper, #320 100 DRS-8000
SiC Emery Paper, #400 100 DRS-8000
SiC Sampler 1 Composition: Holding rod, sample holder, SiC emery paper (#320, #400) DRS-8000

Diffuse reflectance spectroscopy, accessory, maintenance part
