Last update: October 6, 2020

MHP-1 Mini Hand Press (for KBr pellet method)
Name P/N Appearance Qty Applicable models
Briquetting Frame, Φ3 mm, 20 pcs. 200-66749-01 1 set KBr pellet method
Upper/Lower Cylinder Set + 10 pcs. of Briquetting Frames, for Φ3 mm 200-66748 1 set KBr pellet method
Briquetting Frame, Φ4 mm, 20 pcs. 206-73718-91 1 set KBr pellet method
Upper/Lower Cylinder Set + 10 pcs. of Briquetting Frames, for Φ4 mm 206-73717-91 1 set KBr pellet method
Evacuable Die for KBr Pellets (pellet diameter: Φ13)
Name P/N Appearance Qty Remarks
Plunger 204-21049 1
Sieve 202-35261 1 Mesh size: #200
Pellet Holder 202-35258 1
Blank Plug 202-35257 1
Punching Rod 202-35256 1
Punching Base 202-35255 1
Exhaust Port 202-35254 1
Compression Spring 202-35252 1
Plunger Guide Fitting 202-35251 1
Φ13 mm, Briquetting Frame 202-35250 1
Base 202-35247 1
O-Ring, 4CP24 036-11025-84 5 For the plunger guide fitting
O-Ring, 1AP28 036-10229 1 For the base
Evacuable Die for KBr Pellets (pellet diameter: Φ13)
Name P/N Appearance Qty
Φ13 mm, Sample Table 206-73889 1
MHP-1 Mini Hand Press (for KBr pellet method)
Name P/N Appearance Qty Applicable models
Base for Removing Pellets 200-66747-04 1 KBr pellet method
Pellet Removing Tool 200-66747-03 1 KBr pellet method
Parts for Micro Pellet Die (pellet diameter: Φ2, Φ5)
Name P/N Appearance Qty Remarks
Disassembly Tool 202-35266 1 Common for Φ2 and Φ5 pellets
Φ5 mm, Sample Table 202-35264 1
Φ2 mm, Sample Table 202-35262 1
Φ5 mm, Micro Briquetting Frame 202-35265 1
Φ2 mm, Micro Briquetting Frame 202-35263 1

External View of Parts of Pellet Forming Equipment for Pellet Measurement

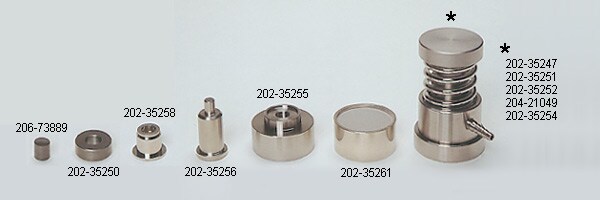

Parts for Evacuable Die for KBr Pellets

Parts for Evacuable Die for KBr Pellets

  • Parts for Micro Pellet Die

    Parts for Micro Pellet Die

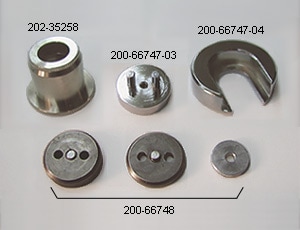

  • Parts for Mini Hand Press

    Parts for Mini Hand Press
