Last update: October 6, 2020

Flow line switching valve
Name P/N Appearance Qty Remarks Applicable model Links Applicable models
Stator 228-48858-46 1 SUS316L with special coating FCV-0206H
FCV-0206H3
40CXS
40CX3
40XR
40CXR
Stator 1 SUS316 with valve head and packing 2010
Stator 670-12106-02 1 Ceramic FCV-13AL (previous)
Stator 1 PPS FCV-13AL (current)
Stator 670-12139-04 1 SUS316
The back side of valve head connects to rotor seal directly.
FCV-20AH6
FCV-14AH
Stator 1 SUS316L with special coating. The back side of valve head connects to rotor seal directly. FCV-32AH
Stator 1 SUS316L with special coating FCV-0607
Stator 228-48858-44 1 SUS316L with special coating
The back side of valve head connects to rotor seal directly.
FCV-0607H
FCV-0607H3
Stator 1 SUS316 Delivery may take some time. The back side of valve head connects to rotor seal directly. Manual recycle valve
Stator 228-15142-93 1 Ceramic Manual column switching valve
Stator 228-34082-05 1 Ceramic Stator face assembly *1) 8125 (low-diffusion, semi-micro)
Stator 228-32211-31 1 Ceramic Stator face assembly *1) 7725 (standard)
7725i (standard)
9725(inert)
9725i (inert)
Stator 1 Ceramic with valve head and packing HT
2010HT
Stator 1 SUS316L with valve head and packing 2010
Stator 228-32511-33 1 Ceramic with packing 10Ai
FCV-12AHi
Stator 228-56253-44 1 SUS316L with special coating 40
40C
FCV-0206
Stator 1 Ceramic with valve head and packing 10ADVP (with carryover reduction kit)
Stator 1 Ceramic with packing 10ADVP
Stator 1 Ceramic for above pH10, with packing optional for 10A
optional for 10AXL
optional for 10AF
optional for 10ADVP
Stator 1 Ceramic with packing optional for FCV-20AH2
optional for 12AH
10AP
Stator 228-21220-91 1 Ceramic with packing FCV-20AH2
FCV-12AH
10A
10AXL
10AF
Stator 228-45408-93 1 Ceramic with valve head and packing 20AHT(UFLC)
20ACHT(UFLC)
Stator 228-45408-91 1 Ceramic with valve head 20A
20AC
Stator 1 Ceramic 20A
20AC
20AHT(UFLC)
20ACHT(UFLC)
Stator 228-48858-91 Special coating 20AXR
20ACXR
Stator 1 SUS316L with special coating 30AC
30ACMP
Stator 1 SUS316L with special coating 2040
2040 Plus
Stator 1 SUS316L with special coating 2030
2030 Plus
Stator 1 SUS316L with special coating
The back side of valve head connects to rotor seal directly.
FCV-nano
Rotor Seal 228-71780-42 1 PEEK 40CXS
40CX3
40XR
40CXR
FCV-0206H
FCV-0206H3
Rotor Seal 1 Delrin®, for above pH10 optional for 2010 (with extended loop)
Rotor Seal 1 Vespel®, Groove diameter: 0.5 mm
for recycle flow line of recycling seimi-preparative system.
optional for FCV-20AH2
optional for 12AH
Rotor Seal 1 Vespel®, Groove diameter: 1.0 mm
for recycle valve of large scale recycling preparative system. Used together with dedicated rotor seal
optional for FCV-20AH2
optional for 12AH
Rotor Seal 670-12106-01 1 PTFE FCV-13AL (previous)
Rotor Seal 1 TFE FCV-13AL (current)
Rotor Seal 670-12139-03 1 Vespel® FCV-20AH6
FCV-14AH
FCV-14AHi
Rotor Seal 228-21217-94 1 Vespel® FCV-20AH2
FCV-12AH
Rotor Seal 1 PEEK FCV-0607
FCV-0607H
FCV-0607H3
Rotor Seal 1 Vespel® *2) Manual recycle valve
Rotor Seal 1 Vespel® *2) Manual column switching valve
Rotor Seal 1 Tefzel®, pH: 1-14 *2) optional for 9725 (inert)
optional for 9725i (inert)
Rotor Seal 1 Tefzel®, pH: 1-14 optional for 8125 (low-diffusion, semi-micro)
Rotor Seal 228-34082-03 1 Vespel®, pH: 1-9 8125 (low-diffusion, semi-micro)
Rotor Seal 1 Tefzel®, pH: 1-14 optional for 7725(standard)
optional for 7725i (standard)
Rotor Seal 670-12098-51 1 Vespel®, pH: 1-9 7725 (standard)
7725i (standard)
9725(inert)
9725i (inert)
Rotor Seal 1 Delrin®, for above pH10 optional for 2010
Rotor Seal 228-71780-41 1 PEEK 40
40C
FCV-0206
Rotor Seal 1 Vespel® 2010 (with extended loop)
Rotor Seal 1 Vespel® 2010
Rotor Seal 1 Tefzel®, for above pH10 optional for 10Ai
Rotor Seal 228-32511-31 1 Vespel®, pH: 1-9 FCV-12AHi
10Ai
Rotor Seal 1 PEEK 10ADVP (with carryover reduction kit)
Rotor Seal 1 Delrin®, for above pH10 10ADVP
Rotor Seal 1 Vespel® 10ADVP
Rotor Seal 1 Vespel® 10AP
Rotor Seal 1 Delrin®, for above pH10 optional for 10A
optional for 10AXL
optional for 10AF
Rotor Seal 1 Vespel® 10A
10AXL
10AF
Rotor Seal 228-41310-92 1 PEEK 20A
20AC
20AHT
20ACHT(UFLC)
HT
2010HT(with extended loop)
Rotor Seal 228-52139 1 PEEK 30AC
30ACMP
FCV-32AH
Rotor Seal 1 PEEK 2030
Rotor Seal 228-48854 1 PEEK 2040
2040 Plus
20AXR
20ACXR
2040
20AXR
20ACXR
Rotor Seal 228-48759 1 PEEK FCV-nano

*1) In the manual injector, the valve head connected with flow path is called stator, and the part connected with inernal rotor seal is called stator face assembly.

*2) Delivery may take some time.

■ FCV-36AH/34AH
For FCV-36AH/34AH, rotor seals and stators cannot be replaced separately. It is necessay to replace the whole valve head (pressure tolerance tested).
 Valve head for FCV-36AH: 228-45206-03
 Valve head for FCV-34AH: 228-45185-01

■ Stator for FCV-14AHi
Stator for FCV-14AHi cannot be replaced separately. It is necessay to replace the valve body (P/N: 670-12139-06).
In the valve body, the back side of valve head connects to rotor seal directly.

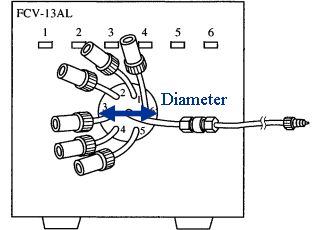

How to distinguish between current and previous type of FCV-13AL

The diameter is different. Previous type is about 25 mm, while current type is about 35 mm.

Flow Line Switching Valve

Back Pressure Regulator for SFC
Name P/N Qty Remarks Applicable model Links Applicable models
Diaphragm, BPR Block 1 Diaphragm SFC-30A
Diaphragm, BPR Block 1 BPR block SFC-30A
Supercritical Fluid Extraction Unit for SFC
Name P/N Qty Remarks Applicable model Links Applicable models
Needle, Needle Seal 1 Needle SFE-30A
Stator, Rotor 1 Stator for 2-valve SFE-30A
Stator, Rotor 1 Rotor for 6-valve SFE-30A
Stator, Rotor 1 Stator for 6-valve SFE-30A
Extraction Vessel Filter, Absorbent 4 Extraction vessel 0.2 mL SFE-30A
Extraction Vessel Filter, Absorbent 4 Extraction vessel 5 mL SFE-30A
Extraction Vessel Filter, Absorbent 10 Extraction vessel filter 0.2 mL SFE-30A
Extraction Vessel Filter, Absorbent 10 Extraction vessel 5 mL SFE-30A
Extraction Vessel Filter, Absorbent 1 Absorbent MIYAZAKI Hydro-Protect filter set including absorbent (1 g x 100 cycles, absorb moisture when using 5 mL extraction vessel) and extraction vessel filter (2 sheets x 100 cycles, filter out insoluble components during extraction) SFE-30A

CO2 Delivery Module for SFC

  • Plunger assembly
  • Plunger seal
  • Diaphragm, rinsing seal, bearing
  • Check valve
  • Line filter

Supplementary keywords: Injector, HPLC, valve, stator, high-speed, Nexera UC, SFC, LC-30ADSF
