Desolvation Line (DL, CDL)
Share
Share
Add Bookmark
Last update: May 9, 2022 GMT
CDL for LCMS-2010
Name | P/N | Appearance | Qty | Remarks | Applicable models |
---|---|---|---|---|---|

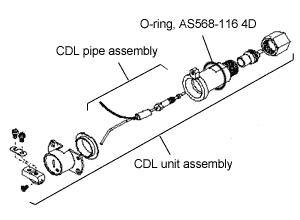

CDL pipe assembly |
225-05891-91
|
1 | Desolvation line |
LCMS-2010 |
|
CDL unit assembly |
225-05880-91
|
1 | Includes the CDL pipe assembly. |
LCMS-2010 |
|
O-ring, AS568-116 4D |
036-15551-16
|
1 |
LCMS-2010 |
DL for LCMS-9030/8060/8050/8040/8030/2020
Name | P/N | Qty | Remarks | Applicable model Links | Applicable models |
---|---|---|---|---|---|
DL ASSY |
225-15718-91
|
1 | Includes 036-11208 and 036-19004-03. |
8030 8040 2020 |
|
DL ASSY3 |
225-15718-43
|
1 | Includes 036-11208 and 036-19004-03. |
9030 8060 |
|
DL ASSY2 |
225-15718-42
|
1 | Includes 036-11208 and 036-19004-03. |
8050 |
|
O-ring, 4D S6 |
036-19004-03
|
1 |
9030 8060 8050 8030 8040 2020 |
||
O-ring, 4D P10 |
036-11208
|
1 |
9030 8060 8050 8030 8040 2020 |
