Last update: October 6, 2020

Section around the lens
Name P/N Appearance Qty Remarks Applicable model Links Applicable models
O-ring, 4DG130 036-12524 1 Lens LCMS-2020
2010EV
2010A
2010

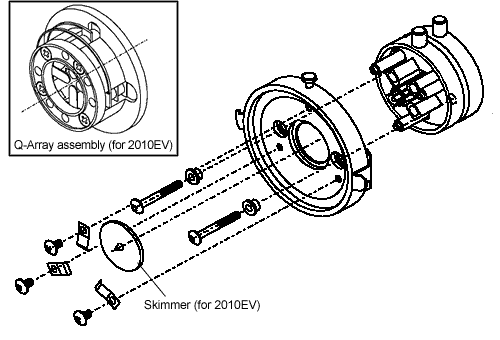

Section around the lens for LCMS-2010
Name P/N Appearance Qty Remarks Applicable models
Skimmer 225-06762 1 Use this skimmer if the LCMS-2010 has been remodeled to a system equivalent to the LCMS-2010A. 2010EV
2010A
Skimmer 225-05198-01 1 2010
Q-Array assembly 225-06284-92 1 Can be also used with the LCMS-2010. 2010EV
2010A
2010
Q-Array assembly 225-06284-91 1 2010
Section around the lens for LCMS-2020
Name P/N Qty Remarks Applicable model Links Applicable models
O-ring, 4DG50 1 On the Q-Array LCMS-2020
Section around the lens for LCMS-9030/8060/8050/8040/8030
Name P/N Qty Remarks Applicable model Links Applicable models
O-ring, AS568A-253 1 On the door LCMS-9030
LCMS-8060
LCMS-8050
LCMS-8040
LCMS-8030
