SH-I-624Sil MS

Add Bookmark

SH-I-624Sil MS

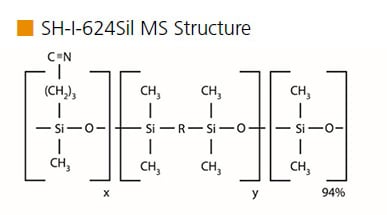

  • Mid-polarity Crossbond™ silarylene phase (similar to 6% cyanopropylphenyl / 94% dimethyl polysiloxane)
  • Low-bleed, high-thermal stability column—maximum temperatures up to 300–320 °C.
  • Inert—excellent peak shape for a wide range of compounds.
  • Selective—G43 phase highly selective for volatile organics and residual solvents, great choice for USP<467>.
  • Manufactured for column-to-column reproducibility—well-suited for validated methods.
  • Similar phases: HP-624, DB-624, VF-624ms, CP-Select 624 CB
P/N ID df (Film Thickness) Length Temp. Range
227-36075-01 0.18 mm 1.00 μm 20 m -20 to 300/320°C
221-75962-30 0.25 mm 1.40 μm 30 m -20 to 300/320°C
227-36076-01 0.25 mm 1.40 μm 60 m -20 to 300/320°C
227-36077-01 0.32 mm 1.80 μm 30 m -20 to 300/320°C
221-75963-60 0.32 mm 1.80 μm 60 m -20 to 300/320°C
227-36078-01 0.53 mm 3.00 μm 30 m -20 to 280/300°C
227-36078-02 0.53 mm 3.00 μm 60 m -20 to 280/300°C
227-36078-03 0.53 mm 3.00 μm 75 m -20 to 280/300°C
227-36078-04 0.53 mm 3.00 μm 105 m -20 to 280/300°C
