Application to Authentic Samples Using Automatic On-column Derivatization System

  • An authentic urine sample was pretreated using the liquid-liquid extraction shown in Fig. 1. TFA derivatives of methamphetamine and amphetamine were detected in the urine samples.　These results demonstrate the ability of qualitative and quantitative analysis using 2-step injection with high selectivity in authentic samples.

  • sample-pretreatment-flow.

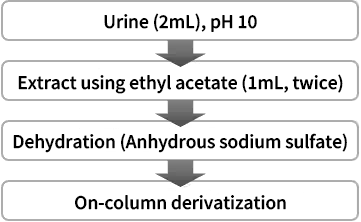

    Fig.1 Sample pretreatment flow

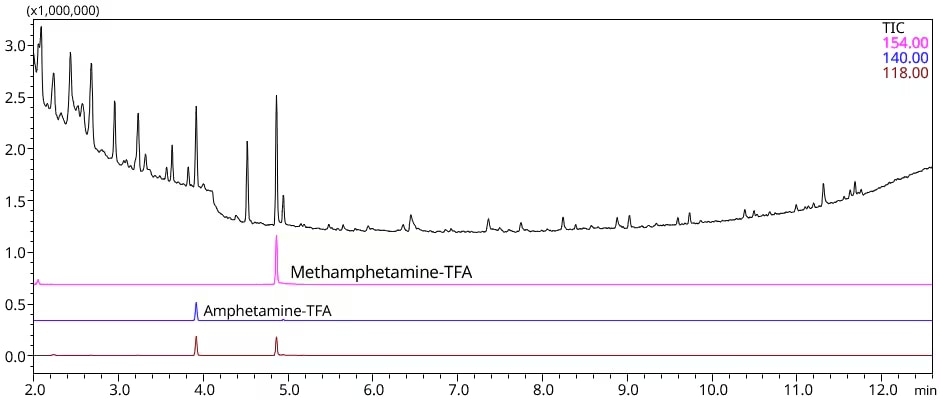

Total Ion Current Chromatograms (TICC) of authentic urine sample


Fig. 2 Total ion current chromatograms (TICC) of authentic urine sample

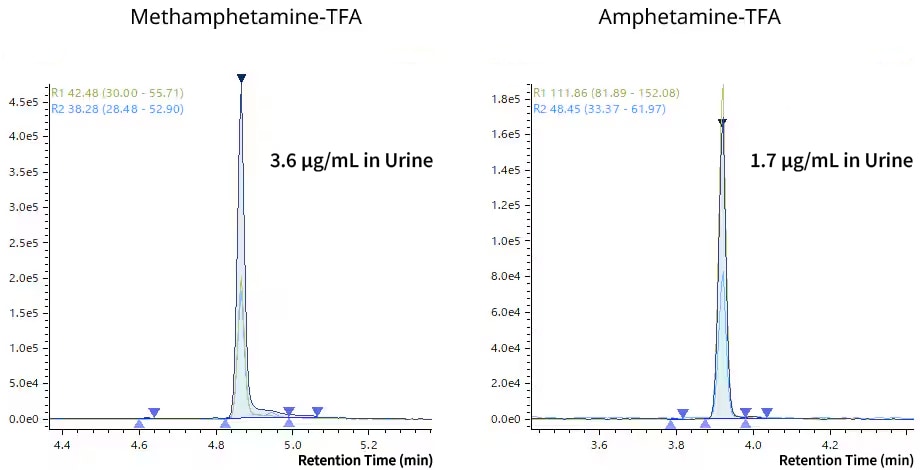

Mass Chromatograms of Detected Drugs


Fig. 3 Mass chromatograms of detected drugs
