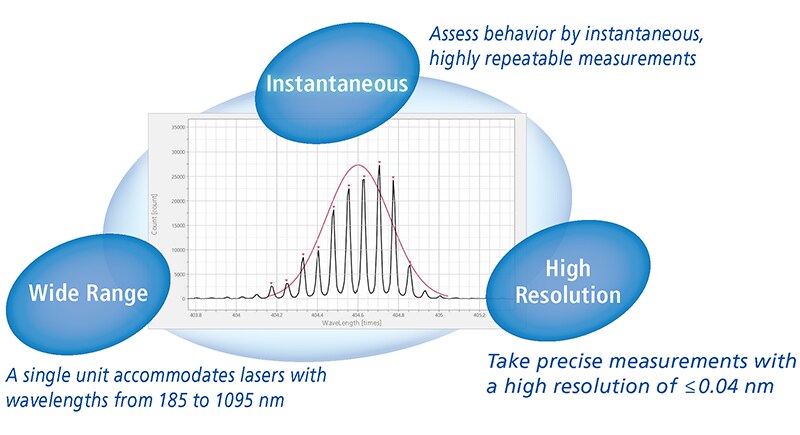

High-Wavelength Resolution
and Instantaneous Spectrometric Measurement
In addition to shortening the time taken for laser wavelength measurements, the instrument can help to visualize mode hopping and other longitudinal mode behavior, resulting in faster development speeds and reduced manufacturing costs for laser light sources and laser modules.
◆Features
An optical spectrum is obtained instantly using an array sensor, so the instrument provides high-resolution real-time measurements.
Capture Mode Hopping with High-Resolution Real-Time Measurements
Mode hopping and other spectral behaviors that change moment by moment are assessed instantaneously, contributing to heightening the efficiency of the development and manufacturing of laser light sources.

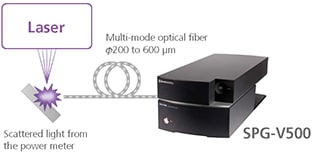

Easier Light Input with Multi-Mode Fiber
The instrument is capable of a high-resolution measurement, approximately 0.02 nm (Typ.) even with multi-mode fiber input, so light input is easy, which can speed up the setup time.

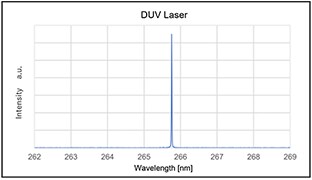

Wide Measurement Range from DUV to NIR
Wavelengths from 185 nm to 1095 nm can be accommodated with a single unit, enabling measurements of a wide range from the 266 nm wavelengths of deep ultraviolet lasers to fundamental waves before wavelength conversion.
Polychromator Type
SPG-V500 Laser Spectrum Analyzer
