SPG-V500 Laser Spectrum Analyzer
High-Wavelength Resolution and Instantaneous Spectrometric Measurement at Wavelengths from 185 to 1095 nm
The SPG-V500 is an Optical Spectrum Analyzer (OSA) optimized for laser spectrum measurement.
In addition to shortening the time taken for laser wavelength measurements, the instrument can help to visualize mode hopping and other longitudinal mode behavior, resulting in faster development speeds and reduced manufacturing costs for laser light sources and laser modules.
Typical Applications
Assessing Mode Hopping and Wavelength Behavior
- Suppression of Mode Hopping and Stabilization of Laser Output
- Spectral Measurement of Pulsed Lasers
- Side Peak Suppression of a Single-Frequency Laser
- Evaluating the thermal characteristics of laser spectra
Observing the Wavelengths of DUV Lasers or Multi-Wavelength Lasers
- Continuous Tests of Multi-Wavelength-Laser Light Source (Wavelength Measurements)
- Spectral Measurements of 266 nm-Laser (from Fundamental Wave to High-order Harmonics
- Measuring excimer lasers (193 nm) and sterilization light sources (222 nm)
Speeding up Laser Optical Adjustments and Inspections
- Speeding Up Adjustment Times for External Cavity Lasers
- Automation of Wavelength Inspection of Semiconductor Lasers (LD)
- Speeding up measurements of surface-emitting lasers (VCSEL)
- Accommodating 100 % inspections of laser wavelengths for sensors (LiDAR) intended for self-driving systems

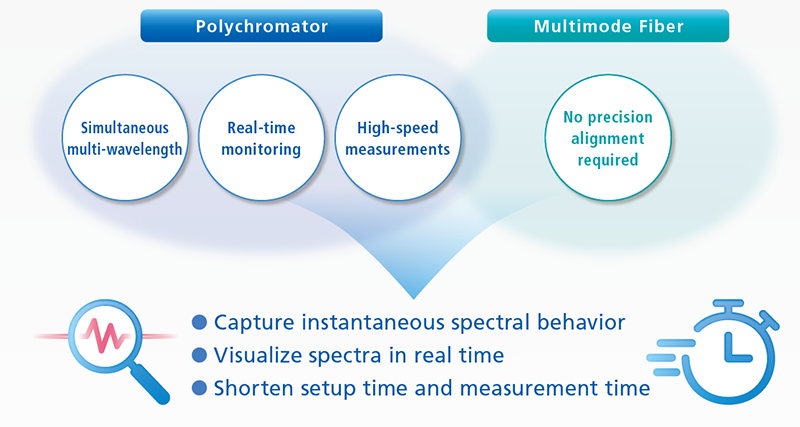

Features
- Instantaneous Spectrometric Measurements, Simultaneous Multi-Wavelength Measurements, and Real-Time Measurements
The SPG-V500 is a polychromator-type optical spectrum analyzer using an array sensor.
Using an array sensor, this laser spectrometer instantly obtains an optical spectrum. It visualizes laser mode hopping and laser characteristics due to thermal and current variations, and speeds up measurement times. It helps with the assembly and adjustment of laser light sources by suppressing mode hopping and reducing noise.
- Achieves High Wavelength Resolution Despite Using Multimode Fibers (MMF)
This Optical Spectrum Analyzer achieves a high wavelength resolution of approximately 0.02 nm (Typ.) despite using multimode fibers*1. It allows for easy optical input simply by orienting the optical fibers toward the measurement target*2, enabling easy evaluation of fine longitudinal mode movements.
- Wide Measurement Range Covering Ultraviolet (UV), Visible (VIS), and Near-Infrared (NIR) Light
Wavelengths from 185 to 1095 nm can be accommodated with a single spectrometer unit, enabling laser wavelength measurements of everything from the 266 nm fundamental wave of deep ultraviolet lasers to wavelengths after wavelength conversion*3.
- *1: The recommended core diameter is 200 to 600 µm. Spatial incidence is also possible.
- *2: Even higher wavelength resolution measurements can be obtained by utilizing higher order light.
- *3: When measuring the fundamental wave, use an order separation filter to remove higher harmonics.
Example of 405 nm Laser Measurement
Other Measurement Examples

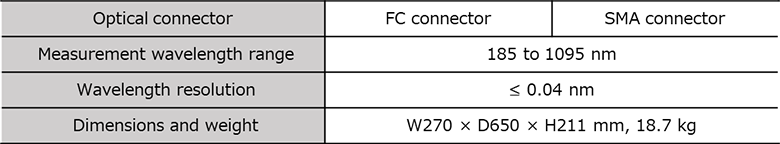

Specifications
| Optical connector*1 | FC connector | SMA connector |
|---|---|---|
| Measurement wavelength range*2, *3 | 185 to 1095 nm | |
| Real-time measurement wavelength band*4 | 31.8 to 8.2 nm | |
| Wavelength resolution*5 | ≦ 0.04 nm | |
| Wavelength accuracy*5, *6 | ±0.4 nm | |
| Dimensions and weight | W270 × D650 × H211 mm, 18.7 kg | |
| Accuracy guaranteed temperature | 23±4 ℃ | |
| Operating temperature/humidity*7 | 23±10 ℃, 30 to 70 % | |
- *1: Install a optical fiber cable (sold separately) that meets each specification. Recommended core diameter is 200 to 600 µm. This product supports laser light input up to 10 mW.
- *2: The set wavelength range is 190 to 1092 nm. The set wavelength is the wavelength measured near the center of the sensor.
- *3: Use an order-sorting filter if the measurement light includes light with the n-th orders (such as 1/2, 1/3...) of the measurement wavelength.
- *4: Wavelength interval that can be measured in real time. It is determined for each set wavelength.
- *5: Inspection wavelengths are 253.7 nm, 546.1 nm, 912.3 nm, and 1092.1 nm. The value around the center of the sensor.
- *6: The values are after using the origin adjustment function of the software.
- *7: No condensation, dust, or vibration.
