EP-100/EP-110 - Features
Electronic Printers
EP-110/EP-100 Features
Built-In Clock
Enables printing time and date information even with a balance that doesn't have a clock function.
Enhanced Support for ISO/GLP
EP-100 can output time/signature information. In addition to this information, EP-110 can output other information based on your demands together with measured values. See samples below for details.
OLED Dot Matrix Display (EP-110 only)
Offers easy-to-read, brightly illuminated OLED display.
Improved Character Input Function (EP-110 software Ver. 3.00 or later only)
As shown in the figure below, a list of characters that can be entered is now displayed, allowing the user to select a character using the up/down/left/right keys quickly and accurately.
Character input is now easier and smoother than before, making it more efficient to input sample IDs and other information to be printed with the weights. For example, the number of keystrokes to enter 5 characters with the improved version can be reduced to 1/7 of the number of keystrokes before the improvement.
Header Printing Function When Using DIRECT Mode (EP-110 software Ver. 3.10 or later only)
When using DIRECT mode on the EP-110, you can print measurement values with a header appended (e.g., model name, sample number). The available header items are shown in the table below.
To configure the items to be printed, simply press the [INPUT] key and check the items you want to include.
| Item name | Meaning |
|---|---|
| For DIRECT | Enables/Disables header addition in direct print mode. |
| Model | Enables/Disables model name printing. This setting can contain up to 16 characters. |
| S/N | Enables/Disables serial number printing. This setting can contain up to 16 characters. |
| Date | Enables/Disables date printing. |
| Time | Enables/Disables time printing. |
| Sample ID | Enables/Disables sample ID printing. The setting can contain up to 11 characters. |
| Name | Enables/Disables sample name printing. The setting can contain up to 16 characters. |
| Lot | Enables/Disables lot number printing. The setting can contain up to 16 characters. |
| Lot Auto Incr. | Enables/Disables automatic count-up after lot number printing. The setting can contain up to 16 alphanumeric characters. |
| Sample No. | Enables/Disables sample number printing. The setting can contain up to 9 characters. The count increases automatically each time a print is made. |
| Separator | Enables/Disables separator printing after header and measurement values are printed. |
| K * x + B <unit> | Enables/Disables user-defined expression application. K and B are user-settable parameters, and x is the measurement value. |

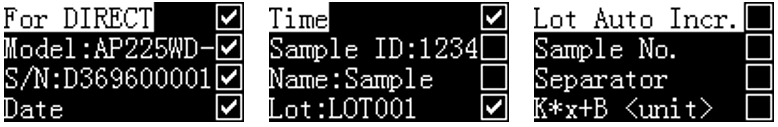

[Example of header item selection]
[Example of DIRECT mode printing when the above item is selected]
（Checked items are printed on the header when printing measurement values.）
Added Date and Time Synchronization Function with AP Series Analytical Balances. (EP-110 software Ver. 3.10 or later only)
"AP series" refers to all series of AP, AP W ex, AP W-AD, and AP W-AD ex.
If the balance supports the date/time reading command, you can enable "Time set only by balance" to automatically synchronize the time setting with the balance. Synchronization is performed under the following conditions.
- Automatically once when the power is turned on.
- Every 10 hours thereafter.
- When the balance information is acquired (Refer to “Obtaining Balance Information (AP Series Only) ” ).
Screen displayed when date and time synchronization is successful:
An asterisk (*) will appear between the date and time.
Added “Obtaining Balance Information (AP Series Only)” (EP-110 software Ver. 3.10 or later only)
You can obtain the model name, serial number, user name, date and time information from the AP Series balance.
This allows you to register the model name, serial number, username, and date/time to be printed on the header in modes such as DIRECT mode, without having to perform any configuration operations on the EP-110 itself.
Balance information acquisition function execution screen
Setting the Header Print Timing (Older Ver. Mode)
The timing of header printing has been changed for the EP-110 since software version 3.00, and for the EP-100 since software version 2.15.
This specification change caused inconsistencies with existing SOPs (Standard Operating Procedures). To resolve this issue, it is now possible to set the header printing timing to the pre-specification change version. You can change this setting by selecting "Older Ver. mode" in the "Normal Set" menu.
Header print timing setting screen (for EP-110)
Older Ver. The following table shows the difference in operation depending on mode ON/OFF. As an example, the following table shows the header printing timing when WEIGHING mode is used.
Differences in setting Older Ver. mode ON/OFF and printing timing
| Differences | Older Ver. mode =“ON” | Older Ver. mode =“OFF” |
|---|---|---|
| Timing at which the header is printed when the mode is switched |

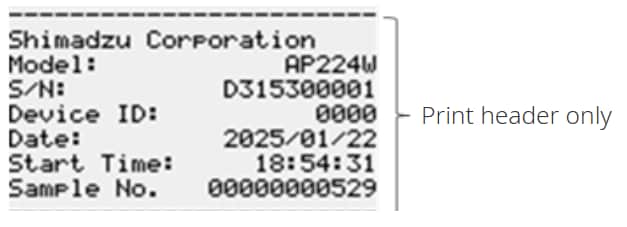

The header is printed automatically when the mode is switched to WEIGHING mode.
|
The header is not printed simply by switching to WEIGHING mode. |
|

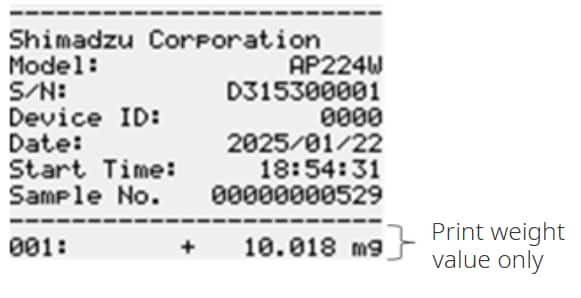

When the first measurement value is printed, only the measurement value is printed.
|

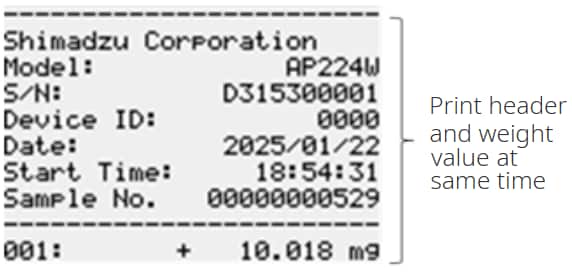

When the mode is switched, the header is printed together with the first measurement value.
|
|
| When Hold run mode is ON, the timing at which the next header is printed after the footer is printed. |

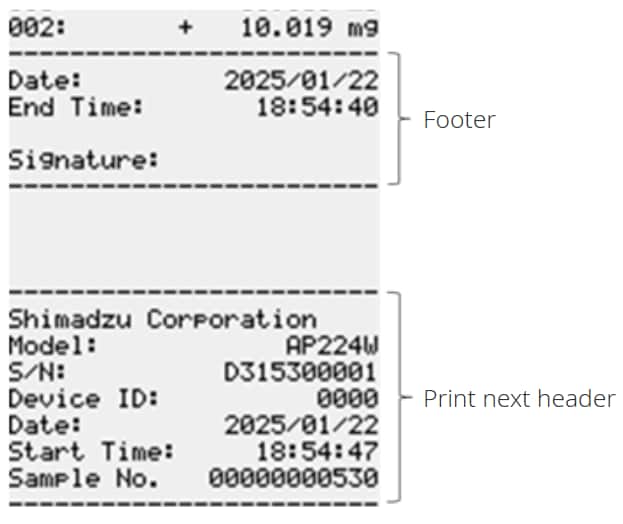

After the footer is printed, the header for the next weighing operation is automatically printed.
|
Only the footer is printed at the end of the weighing operation. The header for the next weighing operation is not printed.
|
|

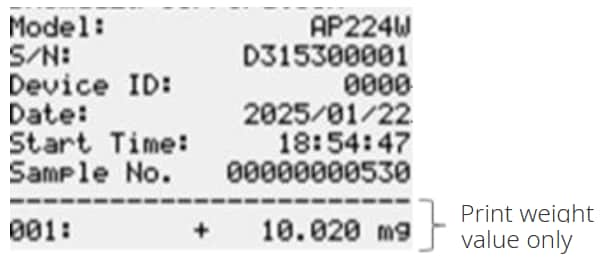

When the first weighing value is printed, only the weighing value is printed.
|

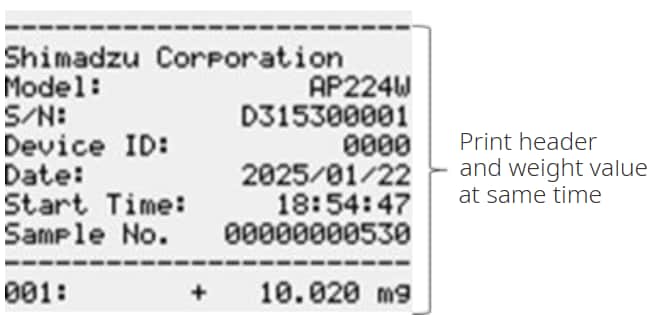

The header is printed with the first measurement value.
|
Note: In firmware Version 3.10 for EP-110, the display and print language is fixed to English. Selection between English and Chinese is no longer available.
You can download the latest firmware, Ver3.10, from the link below and update your EP-100/EP-110. Please also refer to the link below for update instructions.
You can download the latest configuration software, "EasySetup" Ver2.10, which allows you to easily configure the newly added features from your PC, from the link below. Please use it.
Printout Samples
Normal Mode
*Operator can choose items to print out.
Statistical Calculation Mode
