Nexis GC-2030 - Options

Gas Chromatograph

Add Bookmark

Options for Expanding Your Productivity

Simultaneously Control Up to Three Injection Units and Four Detectors

Up to four types of injection units or six types of detectors can be selected depending on the purpose of analysis and target components. Four detectors can be controlled simultaneously using LabSolutions.

Note: The number of detectors installed depends on the type. The injection port can control up to two devices simultaneously.

Inlets

Split/Splitless Injector
SPL-2030
  • The injection port can be opened or closed without tools, making insert replacement easy. It ensures an airtight seal even at high temperatures and pressures.
  • Standard configuration supports high-speed GC with narrow bore capillary columns.
  • The carrier gas saver function reduces split gas consumption.
  • Permits high-pressure injection mode.
On-Column Injection Unit
OCI-2030
  • Samples can be injected using cold on-column injection (OCI).
  • By using an optional easy OCI insert, cold on-column injection allows a narrow-bore capillary column to be connected directly to the injector without a 0.53 mm I.D. pre-column. (Press-Tight connector not necessary).
  • It also supports analysis of high-boiling compounds (straight-chain hydrocarbons with 100 or more carbons)
  • Two units of OCI can be mounted at the same time.
Note: OCI-2030 cannot be used as the PTV.
Direct Injection Unit
WBI-2030
  • The injection port can be opened or closed without tools, making insert replacement easy. It ensures an airtight seal even at high temperatures and pressures.
  • Equipped with a septum purge flow channel to inhibit solvent tailing.
  • Shares and simplifies the glass inserts for splitless analysis (patented).
Note: Contact your Shimadzu representative separately regarding connecting a packed column
Programmed Temperature Vaporization Injector
PTV-2030
  • Samples can be injected using the PTV method.
  • Uses an inert heat-resistant quartz insert.
  • Two units of PTV can be mounted at the same time.
Note: PTV-2030 cannot be used as the OCI.
Packed Column Injection Unit
SINJ-2030
  • Glass packed column and SUS packed column can be connected.

Detectors

Flame Ionization Detector
FID-2030		 All organic compounds
  • An optimized nozzle and collector structure provides better response than
    previous models.
  • Improved instrument controller and flow controller stability results in lower
    noise and the world's highest* sensitivity.
  • Automatic ignition, re-ignition and flame extinguishing functions are included by default.
  • It also includes a feedback function for reducing the gas supply pressure to zero when the hydrogen flame is extinguished unexpectedly.
  • Reverse threads are used on hydrogen connector joints to prevent incorrect pipe connections.
  • An optional flame monitor can be mounted.
Flame Photometric Detector
FPD-2030

Organic phosphorus
compounds

Sulfur compounds
  • A novel optical system with a more advanced dual-focus system results in the
    world's highest sensitivity*.
  • The nozzle structure prevents adsorption and decomposition of sample components and an improved nozzle shape heightens flame stability.
  • A dedicated cooling fan achieves a more compact design that also enables high-temperature (450 °C) operation.
  • Reverse threads are used on hydrogen connector joints to prevent incorrect pipe connections.
  • When using LabSolutions, the recommended detector flowrates can be set automatically for optimal sensitivity, by simply selecting the filter type (for phosphorus, sulfur, or tin).
Thermal Conductivity Detector
TCD-2030 (for capillary columns)		 Inorganic gases

High-concentration
organic compounds
  • A microvolume cell supports even sharp peaks.
  • An improved structure results in a shorter stabilization time than previous models. It enable more reliable analysis that is less easily affected by column oven temperature.
Thermal Conductivity Detector
PTCD-2030 (for packed)		 Inorganic gases

High-concentration
organic compounds
  • TCD for packed column.
  • It enable more reliable analysis that is less easily affected by column oven temperature.
Flame Thermionic Detector
FTD(NPD)-2030
Organic nitrogen
compounds

Organic phosphorus
compounds
  • An improved collector reduces the negative peaks from impurity components.
  • Collectors can be replaced without tools.
  • Using an alkali source regeneration kit (optional) can reduce running costs.
  • Reverse threads are used on hydrogen connector joints to prevent incorrect pipe connections.
Electron Capture Detector
ECD-2010 Exceed		 Electrophilic
compounds
  • Redesigned internal structure provides increased durability, higher sensitivity, and wider dynamic range, achieving the world's highest* ECD performance.
  • An optimized ECD cell structure achieves the world's highest sensitivity.
Barrier Discharge Ionization Detector
BID-2030		 Low-concentration
inorganic gases

Organic
compounds
  • A wide variety of compounds other than He and Ne can be detected with high sensitivity.
  • Provides over 100 times higher sensitivity than TCD and over 1.5 times higher than FID.
  • A barrier discharge plasma source that does not contact the electrode prevents high electrode temperatures. Consequently, electrodes almost never deteriorate, which ensures long-term analytical stability.
Sulfur Chemiluminescence Detector
SCD-2030		 Sulfur compound
  • The Nexis SCD-2030 is a next generation sulfur chemiluminescence detection system, the first in the industry to adopt a horizontal placement design. The dramatically enhanced sensitivity and stability of this system, as well as its excellent maintainability, and automation functions, a first for the industry, will improve laboratory productivity.

*As of March 2020, according to a Shimadzu survey

Notes: In some countries, registration with the appropriate authority for regulation of radioisotopes is required before purchasing or using this detector. (Contact your Shimadzu representative for details.)

GC Software

  • Shimadzu GC Driver Ver. 3.2 with Waters Empower™ Compatibility
    Shimadzu GC Driver Ver. 3.2 with Waters Empower™ Compatibility
    • GC Software
    • Drivers
    Waters Empower chromatography data systems can now be used to control AOC-30 autoinjectors in Shimadzu Nexis™ GC-2030 systems and perform packed column analysis. Space-saving AOC-30 systems offer reliable and long-term performance, and support capillary/packed column analysis using only a single GC-2030 system.
  • Shimadzu GC Driver Ver. 2.2 with Thermo Scientific™ Chromeleon™ Compatibility
    Shimadzu GC Driver Ver. 2.2 with Thermo Scientific™ Chromeleon™ Compatibility
    • GC Software
    • Drivers
    Chromeleon chromatography data systems can now be used to control AOC-30 autoinjectors in Shimadzu Nexis™ GC-2030 systems and perform packed column analysis. Space-saving AOC-30 systems offer reliable and long-term performance and support capillary/packed column analysis using only a single GC-2030 system.
  • Calorific Value Calculation Software
    Calorific Value Calculation Software
    • GC Software
    The Calorific Calculation Software can automatically calculate calorific values and generate reports that comply with BTU and ISO 6976. In addition, the target gas can be registered according to the customer’s requirement.
  • GC Driver for OpenLAB CDS
    GC Driver for OpenLAB CDS
    • GC Software
    • Drivers
    Shimadzu Nexis GC-2030 gas chromatographs can now be controlled from Agilent OpenLAB CDS (chromatography data system). The Nexis GC-2030, which provides the world's highest level of performance and user-friendly interface, can now be used in an OpenLAB CDS environment.

Labsolutions Series

  • LabSolutions CS
    LabSolutions CS
    • Labsolutions Series
    • GC Software
    • LC Software
    LabSolutions CS features an innovative operating environment and provides complete data management to ensure secure information in networked laboratories.
  • LabSolutions DB
    LabSolutions DB
    • Labsolutions Series
    • GC Software
    • LC Software
    LabSolutions DB has a data management function and is compliant with the ER/ES Regulations. It is optimally configured for customers using a PC.

Related information

  • Nexis SCD-2030
    Nexis SCD-2030
    • GC Components & Accessories
    The Nexis™ SCD-2030 is a next-generation sulfur chemiluminescence detection system.
    The dramatically enhanced sensitivity and reliability, the excellent maintainability, and the automation functions will improve laboratory productivity.
  • Natural Gas Analysis
    Natural Gas Analysis
    • Application Specific GC Systems
    Recently, natural gas has been recognized as a clean resournce for energy, in addition to being a raw material for chemical products.
  • Trace Moisture Analysis System
    Trace Moisture Analysis System
    • Application Specific GC Systems
    Analyzing moisture, and how much of it, is critical to the performance of petroleum products, as well as infrastructure and product integrity.
  • UFRGA Series
    UFRGA Series
    • Application Specific GC Systems
    The Ultrafast RGA system utilizes the new Barrier Discharge Ionization Detector (BID) technology coupled with Nexis GC-2030 to create new system GC for ultrafast, high-sensitivity analysis.
  • Green House Gas Analysis
    Green House Gas Analysis
    • Application Specific GC Systems
    Gas chromatographs help analyze green house gases in air and soil.
  • Downstream and Others
    Downstream and Others
    • Application Specific GC Systems
    A gas chromatograph is used for impurity analysis of intermediate or final products in various chemical fields.
  • Trace Sulfur Analysis
    Trace Sulfur Analysis
    • Application Specific GC Systems
    Some sulfur compounds are known to be not only hazardous but also catalytic poisons.
  • Town Gas Analysis
    Town Gas Analysis
    • Application Specific GC Systems
    Periodical monitoring of calorific values is necessary to ensure a stable supply of town gas. Since Shimadzu’s system GC is robust and designed for automated analysis, it is widely used for 24 hour/day online analysis in this field.
  • Transformer Oil Gas Analysis
    Transformer Oil Gas Analysis
    • Application Specific GC Systems
    It is necessary to analyze outgas in transformer insulation oil in power plant facilities.

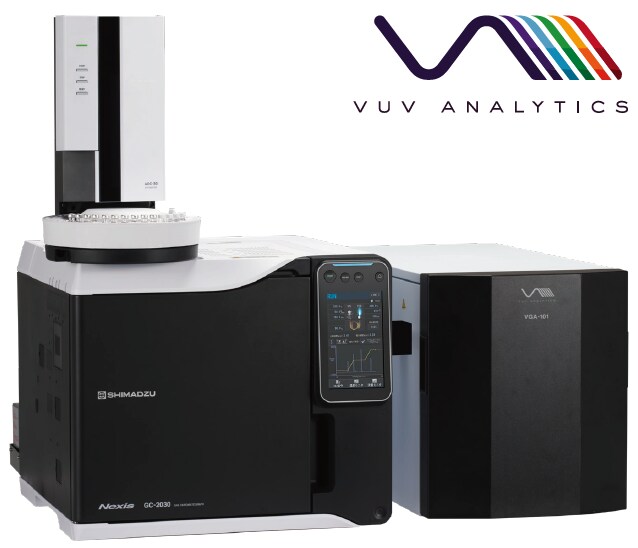

  • VUV PIONA+ Analysis
    VUV PIONA+ Analysis
    • Application Specific GC Systems
    This high-speed gasoline PIONA analyzer is compliant with ASTM D8071.
  • Detailed Hydrocarbon Analysis
    Detailed Hydrocarbon Analysis
    • Application Specific GC Systems
    The purpose of detailed hydrocarbon analysis (DHA) is to determine the bulk hydrocarbon group type composition (PONA: Paraffins, Olefins, Naphthenes and Aromatics) of gasoline and other spark-ignition engine fuels that contain oxygenate blends (Methanol, ethanol, MTBE, ETBE, and TAME) according to ASTM-D6730.
  • Gasoline/Fuel Analysis
    Gasoline/Fuel Analysis
    • Application Specific GC Systems
    A gas chromatograph is used for composition analysis of gasoline and its additives in order to improve fuels' performance.
  • Gas Filter
    Gas Filter
    • GC & GC-MS Consumables
    Impurities in gases, such as hydrocarbons, moisture and oxygen, can contaminate the gas line and instrument, cause column degradation and affect the accuracy of your analysis results, which may lead to instrument downtime.
  • Capillary Column

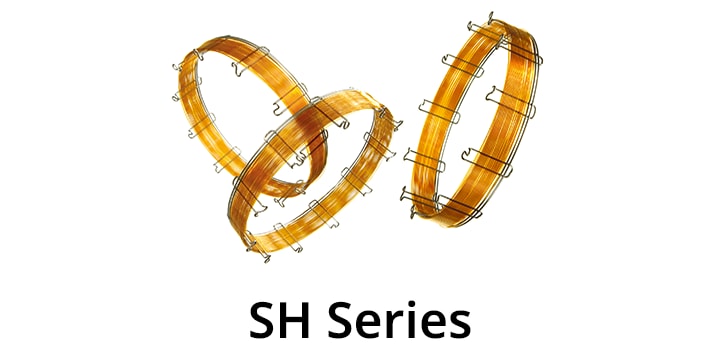

    SH Series GC Columns
