Nexis GC-2060 - Options
Gas Chromatograph
Versatility Without Limits
Choose from a wide selection of sample preparation devices, injection units, and detectors to build a tailored Nexis GC-2060 configuration that meets your application requirements and maximizes analytical efficiency.
-
Precise and High-Performance
Injection UnitsSplit/Splitless Injection Unit (SPL)*1
Multi-Mode Injection Unit (MMI)
Direct Injection Unit (WBI)
Packed Column Injection Unit (SINJ)
On-Column Injection Unit (OCI)
Gas-Only Splitter (SPI)
*1 Inert-treatment option is available -
Reliable and
High-Performance DetectorsNext-Gen Flame Ionization Detector (FID)
Next-Gen Thermal Conductivity Detector (TCD)
Barrier-Discharge Ionization Detector (BID)
Flame Photometric Detector (FPD)
Electron Capture Detector (ECD)
Flame Thermionic Detector (FTD)
Mass Spectrometer (MS)*2
*2 MS support will be available in the near future
Expandability to Meet Diverse Laboratory Needs
Shimadzu’s flagship GC, the Nexis GC-2060 is engineered for long-term scalability. Ongoing software updates and planned feature enhancements will keep the system current, meaning your lab will benefit from performance improvements throughout the instrument’s lifetime.
-
Automated Pretreatment Systems
AOC-20 / AOC-30 / GI-30 / HS-20 NX Loop /Trap / HS-10 / AOC-6000 Plus / TD-30 / PY-3030D
Options
Low-Temperature Control Solenoid Valve Set /Gas Switching Unit (Gas Selector) / Hydrogen Sensor / External Device Control Relay /Multi-Position Valve
-
Columns
7-inch Standard Capillary Column /Packed Column
Advanced Flow Technology (AFT)
Detector Splitting (2-way / 3-way Detector Splitter) / Backflush System
Seamless Integration with 3rd Party
Autosamplers and Detectors
Nexis GC-2060 integrates with a wide range of 3rd party autosamplers, detectors, and software packages, allowing you to build systems compliant with standard methods and regulatory requirements.

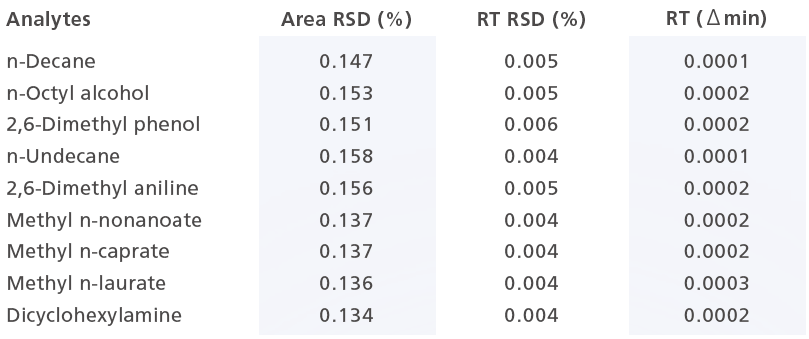

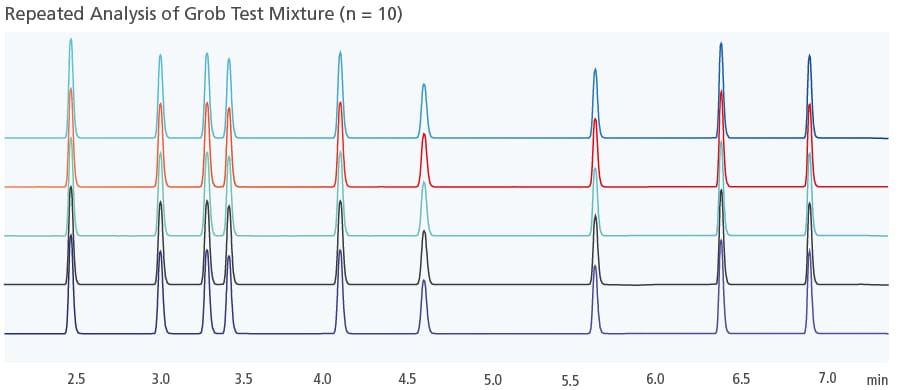

Exceptional Analytical Reproducibility
The AOC-30 liquid autosampler automates sample handling to reduce operator workload and deliver continuous, high-precision analysis beyond manual capability. Shimadzu’s unique injection mechanism minimizes septum wear and injection unit liner contamination while maintaining excellent reproducibility.
