Shim-pack IC Series - Features

HPLC Column

Examples of Cation Analysis
Analysis of Anions in Water

Examples of Cation Analysis

Shimpack IC-C4 is a high-performance general-purpose cation analysis column that can be used for both non-suppressor and suppressor ion chromatographs.

High Resolution of Na⁺ and NH₄⁺

High resolution of Na⁺ and NH₄⁺ has been achieved by improving the peak shape of Na⁺. The influence on the peak shape of NH₄⁺ from a high concentration of Na⁺ has been reduced, making it possible to analyze tap water of normal concentration under standard mobile phase conditions. The resolution can be further improved by using a mobile phase treated with 18-crown-6 additive.The addition of 18-crown-6 is possible only when using a non-suppressor ion chromatograph.

Analyses of a Standard Mixture of 5 Cations

■Conditions
System	：	Non-suppressor IC
Column	：	Shim-pack IC-C4 (150 mmL × 4.6 mmI.D., 7 μm) (P/N: 228-41616-91)
Mobile Phase	：	2.5 mmol/L oxalic acid
Flow Rate	：	1.0 mL/min
Col. Temp.	：	40 °C
Detection	：	CDD
Injection Vol.	：	50 µL

Flexible Mobile Phase Selection

Due to the features of non-suppressor IC, flexible mobile phase composition can be used. Besides normal inorganic cations, Shim-pack IC-C4 is capable of analyzing transition metals by using a mixed mobile phase.

■Conditions
System	：	Non-suppressor IC
Column	：	Shim-pack IC-C4 (150 mmL × 4.6 mmI.D., 7 μm) (P/N: 228-41616-91)
Mobile Phase	：	A) 2.5 mmol/L oxalic acid B) 2.5 mmol/L methanesulfonic acid A/B = 60/40 (v/v)
Flow Rate	：	1.0 mL/min
Col. Temp.	：	40 °C
Detection	：	CDD
Injection Vol.	：	50 µL

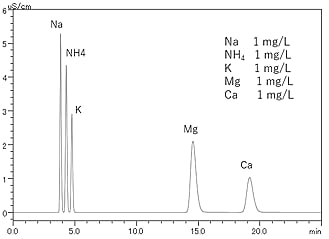

Sensitive analysis by cation suppressor

The use of a suppressor ion chromatograph enables more sensitive analysis than conventional non-suppressor methods.

■Conditions
System	：	Suppressor IC
Column	：	Shim-pack IC-C4 (150 mmL × 4.6 mmI.D., 7 μm) (P/N: 228-41616-91)
Mobile Phase	：	2.5 mmol/L methanesulfonic acid
Flow Rate	：	1.0 mL/min
Col. Temp.	：	40 °C
Detection	：	CDD
Injection Vol.	：	50 µL

For more applications, please click here.

Analysis of Anions in Water

Shim-pack IC-SA2 was developed for anion analysis on Shimadzu Ion Chromatograph HIC-SP (suppressor type). It is capable of analyzing fluoride ions, chloride ions, nitrite ions, bromide ions, nitrate ions, phosphate ions, sulfate ions, etc., making it possible to be used in both tap water and environmental water analysis.

Analysis of Standard Anion Samples

Analysis of Tap Water

■Peaks

1. F	：1mg/L
2. Cl	：1mg/L
3. NO₂	：1mg/L
4. Br	：1mg/L
5. NO₃	：1mg/L
6. PO₄	：1mg/L
7. SO₄	：1mg/L

■Conditions
Column	：	Shim-pack IC-SA2 (250 mmL x 4.0 mmI.D.) (P/N: 228-38983-91)
Mobile Phase	：	12 mmol/L sodium hydrogen carbonate 0.6 mmol/L sodium carbonate
Flow Rate	：	1.0 mL/min
Col. Temp.	：	30 °C
Detection	：	CDD
Injection Vol.	：	50 µL

Higher determination resolution of the components in water-quality analysis

Environmental water and mineral water usually contains silicate. In this kind of analysis, although the water sample contains a large amount of silicic acid, fluoride ions can still be separated and determined with high solution. (same mobile phase as above was used)
