Nexera IC Ion Chromatograph - Specs

Ion Chromatograph

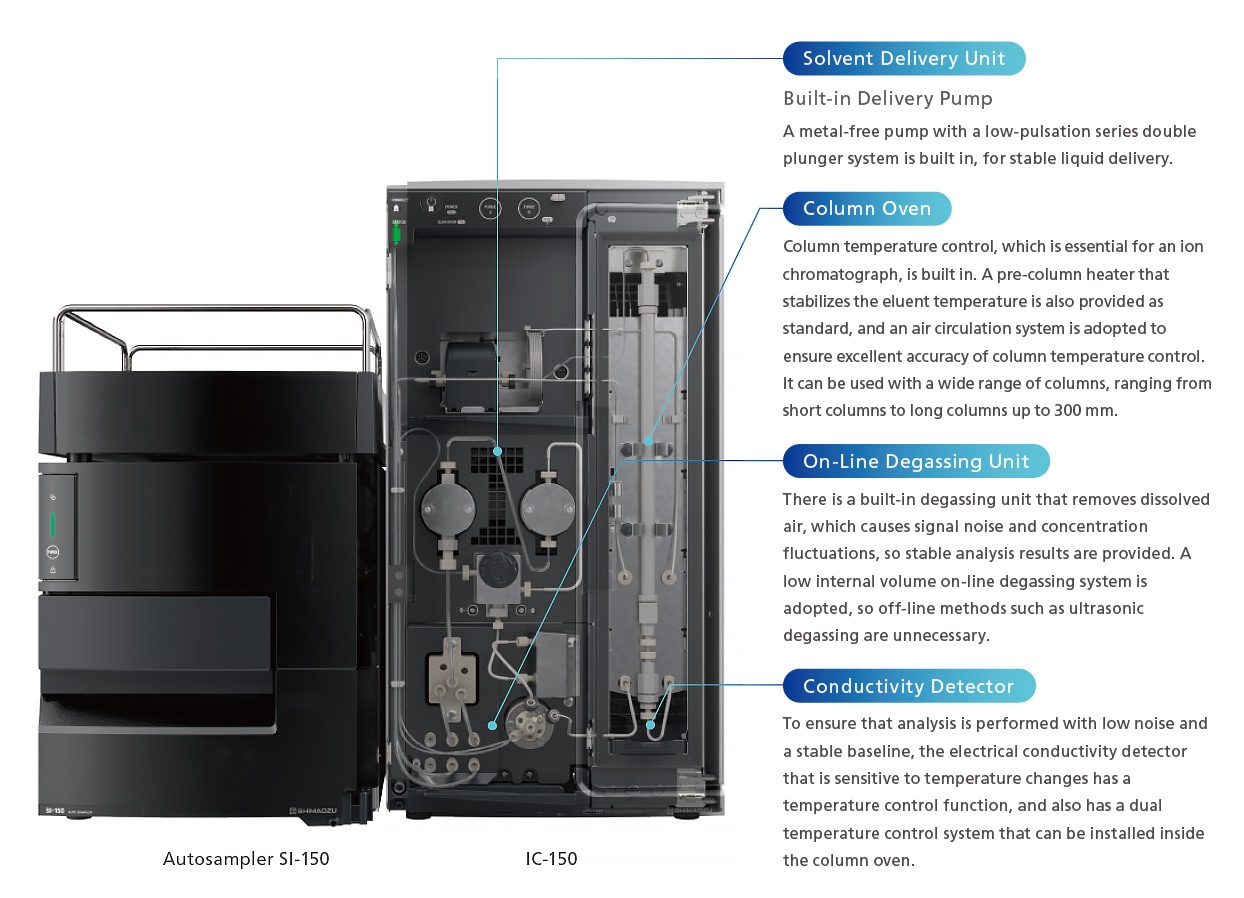

Ion Chromatograph Main Unit IC-150

Main Unit IC-150
Nexera IC Option List
Ion Chromatograph Main Unit
Autosampler

The Nexera IC ion chromatograph combines a compact footprint with uncompromising performance, enabling anyone to perform analysis effortlessly and efficiently.

Nexera IC Option List

Solvent Delivery Pumps

Automatic Eluent Generation Unit	An optional valve-switching mixing eluent generation unit is available, to simplify eluent preparation and reduce errors. The eluent can be diluted at ratios selected from three pre-defined patterns of dilution ratios (2×, 5×, 10×). For example, if a high-concentration eluent and pure water are set, and a dilution ratio of 10 is selected, the eluent will be automatically generated by a factor of 10.
Membrane Suppressor Option	A dialytic membrane suppressor is available as an option, for high-sensitivity analysis. It has low internal capacity and excellent baseline reduction performance. Also, it is compatible with both positive and negative ion suppressors.

An optional valve-switching mixing eluent generation unit is available, to simplify eluent preparation and reduce errors. The eluent can be diluted at ratios selected from three pre-defined patterns of dilution ratios (2×, 5×, 10×). For example, if a high-concentration eluent and pure water are set, and a dilution ratio of 10 is selected, the eluent will be automatically generated by a factor of 10.

A dialytic membrane suppressor is available as an option, for high-sensitivity analysis. It has low internal capacity and excellent baseline reduction performance. Also, it is compatible with both positive and negative ion suppressors.

Sample Injections

Autosampler SI-150	Flexible Injection Method Selection It is provided with a total injection mechanism that enables the injection volume to be changed from the software. The standard injection volume can be changed from 0.1 to 200 L, and injections up to 7.5 mL can be achieved by using an extension loop. Also, it is possible to change to the loop injection method by using an optional item. Support for Multi-Sample Analysis The maximum number of samples that can be installed when using 1.5 mL vials is 162, so large-volume sample analysis can be handled. Improved Work Efficiency with Pre-Processing Functions Various automatic pre-processing functions are provided. For example, by mixing the sample and diluent in a vial, the sample can be injected after dilution.
Dual Injection System IC-150D	An optional IC-150D dual injection system enables simultaneous anion and cation analysis for enhanced versatility.
Manual Injector 9725i	A manual injector can be mounted on the IC-150, recommended for single-run analyses and locations with restricted space.

Flexible Injection Method Selection
It is provided with a total injection mechanism that enables the injection volume to be changed from the software. The standard injection volume can be changed from 0.1 to 200 L, and injections up to 7.5 mL can be achieved by using an extension loop. Also, it is possible to change to the loop injection method by using an optional item.

Support for Multi-Sample Analysis
The maximum number of samples that can be installed when using 1.5 mL vials is 162, so large-volume sample analysis can be handled.

Improved Work Efficiency with Pre-Processing Functions

Various automatic pre-processing functions are provided. For example, by mixing the sample and diluent in a vial, the sample can be injected after dilution.

An optional IC-150D dual injection system enables simultaneous anion and cation analysis for enhanced versatility.

A manual injector can be mounted on the IC-150, recommended for single-run analyses and locations with restricted space.

Optional Detector

UV Detector SPD-40/40V	An optional UV detector can be installed on top of the IC-150 to selectively detect ions that absorb UV light, such as nitrite ions.

Ion Chromatograph Main Unit

Model name		IC-150	IC-50D
P/N		228-65675-58	228-65677-58
Dimensions and weight	W260 × D500 × H490 mm, 31 kg
Available pH range	pH 1 to 14
Maximum pressure	20 MPa (Standard)、35 MPa (options)
Workstation	LabSolutions, IC Solution (options)
Pump	Type	Series double plunger
	Flow rate settings range	0.0001 to 5.0000 mL/min
	Others	Plunger automatic rinsing kit (option), Degassing unit (included as standard)
Column oven
	Temperature range	Room temperature -10 to 85 °C
	Temperature accuracy	±0.4 ℃（Oven temperature:30℃, Under ambient at "room temperature" condition）
	Temperature precision	±0.1 ℃（Oven temperature:30℃, Under ambient at "room temperature" condition）
	Storage space	Up to one 5 cm guard column and one 25 cm column
	Others	Column preheater (included as standard; Pressure resistance: 20 MPa)
Conductivity detector	Measurement range	Up to 20,000 μS/cm Automatic gain switching
	Measurement channels	2 ch (The second channel is optional.)
	Sampling rate	1 to 100 Hz
	Cell capacity	0.25 μL
	Cell pressure resistance	10 MPa

Autosampler (For the IC: Option)

Model Name		SI-150
P/N		228-65676-58/46
Dimensions and weight		W260 × D500 × H280 mm, 13 kg
Available pH range		pH1-14
Injection method		Total volume injection (Variable volume injection): Standard, Loop injection (Injection volume fixed/variable): Option
Injection volume		Total-volume injection method: 0.1 to 200 μL, Loop injection method: 0.1 to 140 μL
Injection volume accuracy		±1.0 % (5 μL injection, n=20)
Injection reproducibility (area value)	Total-volume injection method	RSD≤ 0.25 % (10 to 200 μL injection) *Under specified conditions
	Loop injection method (Variable)	RSD≤ 0.45 % (20 μL injection) *Under specified conditions
	Loop injection method (Fixed)	RSD≤ 0.25 % (50 μL injection) *Under specified conditions
Number of samples installed (excluding well plates)		1.5 mL vial plates: 54 vials × 3 plates, 4 mL vial plates: 28 vials × 3 plates, 10 mL vial plates: 12 vials × 3 plates, microtiter plates/deep-well plate, 96 well x 3 plates, microtiter plates/deep-well plate, 384 well x 3 plates
Automatic pretreatment function / Automatic dilution function		Yes

Nexera and Analytical Intelligence logo are trademarks of Shimadzu Corporation or its affiliated companies in Japan and/or other countries
