Matrix-Assisted Laser Desorption/Ionization Time-of-Flight Mass Spectrometer
A compact footprint without compromising on performance

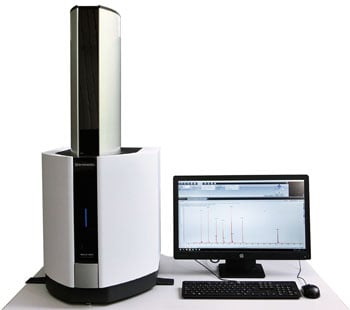

The MALDI-8020 is the latest in a long line of MALDI-TOF products from Shimadzu. This benchtop, linear MALDI-TOF mass spectrometer delivers outstanding performance in a compact footprint, making it an ideal choice for today’s increasingly demanding laboratories.
- Linear mode (positive ion) MALDI-TOF
- 200 Hz solid-state laser, 355 nm
- Load-lock chamber for fast sample introduction
- UV laser-based source cleaning (patented)
- Small footprint/benchtop design
- Quiet operation (<55 dB)
Linear mode instruments have traditionally been the instruments of choice in MALDI-TOF-based quality control (QC) and profiling workflows, and the MALDI-8020 is no exception. Peptides, proteins, polymers or oligonucleotides - the instrument is capable of delivering the performance required for QC applications. Research laboratories will also benefit from the MS capabilities of the instrument through the rapid mass-measurement of samples.
* For Research Use Only. Not for use in diagnostic procedures.
Compatible with the FlexiMass™ series of microscope slide-format sample targets, these slides provide researchers with options depending on their experimental workflow...
To maintain instrument performance over time, the MALDI-8020 features wide-bore ion optics - a feature used on our existing MALDI-TOF products - which minimize the risk of source contamination over time, providing a robust platform...
Operating under the control of MALDI Solutions™ software, the software features a centralized, secure Microsoft® SQL database which can be used to store everything from sample lists and acquisition Parameter Sets to acquired MALDI data...
As mass spectrometry moves into clinical laboratories, the MALDI-8020 is the perfect choice for researchers developing MALDI-based diagnostic methods*. The system is designed and manufactured to ISO 9001:2015 and ...
MALDI-8020 Loading and Operation
MALDI 8020 Benchtop Linear MALDI-TOF Mass Spectrometer
Benchtop MALDI-TOF Imaging Starter Kit
Compact, Affordable, MALDI Imaging: the application of Mass Spectrometry imaging is rapidly growing but is still only utilised by experienced scientists.
Rapid and Simple Sequence Confirmation of Nucleic Acid Therapeutics : MALDI
A MALDI-8020 benchtop MALDI-TOF mass spectrometer enabled a rapid measurement with simple sample preparation.
The instrument supports a rapid and easy sequence confirmation of nucleic acid therapeutics.
