Frame Design Provides High Rigidity and High Level Alignment
AGX-V Series
AUTOGRAPH Precision Universal Tester
This is the AGX-V.
At Shimadzu, our aim is to develop instruments that provide the highest level of test results. To this end, we created the AGX, the highest class of testing machine in the industry. It features a high rigidity frame; multi processors, high-speed sampling and high-accuracy automatic control; an intelligent crosshead; stroke limit switches; a high degree of safety; a smart controller equipped with a progressive user interface; and software that supports the creation of test conditions and data processing with intuitive operability.
Shimadzu has been manufacturing testing machines for more than 100 years. The AGX series is the culmination of the continuous evolution of the AUTOGRAPH based on our wealth of experience and achievements, and insights from customers around the world.
Features
-
Revolutionary Technology Provides Full Control
Frame Design Provides High Rigidity and High Level Alignment -

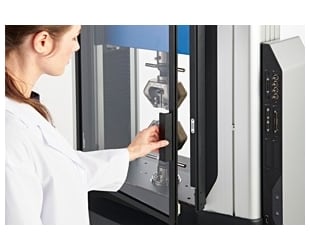

Safety Cover
Intelligent Crosshead
Overload Detection Function
Stroke Limit Switch
Self Check Function -
All Jigs are Easily Connected
Smart Controller
Movies
-
AUTOGRAPH AGX-V Series
-
ASTM D5379 V-Notched Beam Testing (losipescu) of CFRP
The V-notched beam testing method (Iosipescu method, ASTM D5379) is used widely in the field of composite materials for testing in-plane shear. This test method applies an asymmetrical four-point compression load to a sample with V-notches, which enables the application of only shear stress on the evaluation area.
This method can be used with various CFRP laminate materials, including unidirectional materials, orthogonally laminated materials, and materials with discontinuous fibers.
Description | Q'ty |
---|---|
AG-50kNXplusCOMPRESSION | 1 |
Description | Q'ty |
---|---|
AGAUTOGRAPH AGX-100kNV ESTD WSTD KIT C1 1/2000 W/Cover |
1 |
PWG Pneumatic Non-shift Wedge Type Grips, wedge type edgeModel PWG-100kN |
1 |
TRAPEZIUMX-V SET NOTE PC |
1 |
SIE-560SA AGX-50-300kNV KIT |
1 |
Description | Q'ty |
---|---|
AUTOGRAPH AGX-10kNVD ESTD WSTD KIT C1 1/2000 W/Cover |
1 |
PFG-5kNA, Pneumatic Flat Grips FV Kit for AGX |
1 |
TRAPEZIUMX-V SINGLE NOTE PC |
1 |
Desk for AGX-10kNVD |
1 |
AG DESKTOP TABLE |
1 |
Fall Preventarion AGX-10kNVD |
1 |
Description | Q'ty |
---|---|
AG-250kNXplusCOMPRESSION | 1 |
Description | Q'ty |
---|---|
AUTOGRAPH AGX-10kNVD ESTD WSTD KIT C1 1/2000 W/Cover | 1 |
PFG-1kNA Kit of Pneumatic Flat Grips 1kN | 1 |
TRAPEZIUMX-V SET NOTE PC | 1 |
Non-Contact DigitalVideo Extensometer TRViewX500S AGX-10kNVD with Counter | 1 |
