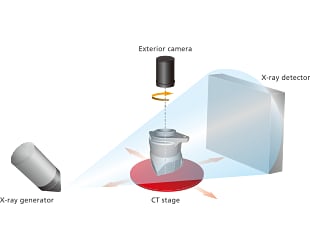

The inspection target (sample) is placed between the X-ray generator and detector, as shown below.
inspeXio SMX-225CT FPD Plus
Microfocus X-Ray CT System

Top class image quality and operability
Featuring a proprietary microfocus X-ray generator and high-sensitivity X-ray detector, inspeXio SMX-225CT FPD Plus is Shimadzu's top-of-the-line microfocus X-ray CT system. An intuitive user interface ensures easy acquisition of clear CT images of a sample's internal structure. The new detector and spacious CT stage enable examination of even larger samples. This single instrument can be used for all kinds of applications, from ever shrinking electronic devices to die-cast aluminum automotive parts.
Features
-
System Configuration and Operating Principle
The inspection target (sample) is placed between the X-ray generator and detector, as shown below. -

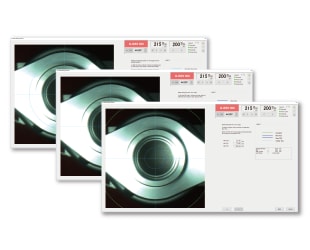

No calibration process is necessary before scanning. Scans can be started immediately after sample placement.
-
Advanced 3D Image Reconstruction

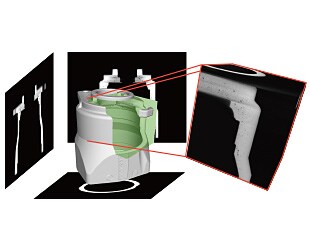

It is possible to enlarge only the focused areas in images once acquired and perform the reconstruction calculation.
Applications
Movies
-
Internal Analysis of Aluminum Die-casting Using The X-Ray CT System
Featuring a proprietary microfocus X-ray generator and high-sensitivity X-ray detector, inspeXio SMX-225CT is Shimadzu's top-of-the-line microfocus X-ray CT system.
An intuitive user interface ensures easy acquisition of clear CT images of a sample's internal structure.
The new detector and spacious CT stage enable examination of even larger samples.
This single instrument can be used for all kinds of applications, from ever shrinking electronic devices to die-cast aluminum automotive parts.
