DSC-60 Plus Series - Features

Differential Scanning Calorimeter

Add Bookmark

Enables high-sensitivity measurements at temperatures ranging from ultra-low to high.



The DSC-60 Plus series achieves a stable baseline throughout its entire measurement temperature range (-140 to 600 °C) and offers the highest DSC sensitivity levels. The series also provides calorimetric measurement over a wide ±150 mW dynamic range.

Enables a wide variety of measurements using simple operations.

DSC-60 Plus series enables easy measurement of samples that need to be measured below room temperature by filling a standard cooling bath with liquid nitrogen.

The sample loading temperature function only heats the region around samples when they are replaced during successive measurements. The temperature is set to allow quick resumption of measurement without moisture condensation.

Temperature Modulated DSC (TM-DSC) (Option)



By overlaying temperature-modulated results onto results obtained by increasing the temperature at a constant rate, TM-DSC can easily measure specific heat, or can measure multiple phenomena that could not be separated using standard DSC systems.　
If glass transitions, enthalpy relaxations, and other reactions overlap, separation is impossible with standard DSC measurements. Using TM-DSC, however, enables separation of these phenomena.

What Is TM-DSC?

By overlaying temperature-modulated results onto results obtained by increasing the temperature at a constant rate, TM-DSC can easily measure specific heat, or can measure multiple phenomena that could not be separated using standard DSC systems.

This program can control the temperature by overlaying a sinusoidal modulation over a constant temperature increase (or decrease).

Three types of heat flow data can be obtained by post-measurement data analysis.

(1) DSC Signal (Total)
Indicates the total heat flow.
This is the same as the heat flow obtained from standard DSC systems. It is obtained by deleting the modulated component from the data obtained by TM-DSC.

(2) DSC Signal (Reversing)
Indicates the reversing heat flow.
This component of the heat flow tracks the temperature modulation, and is equivalent to measured heat. It is obtained from the modulated component of data obtained by TM-DSC.

(3) DSC Signal (Non-Reversing)
Indicates the non-reversing heat flow.
This is the component of the heat flow that does not track the temperature modulation. It mainly appears for thermal processes that progress spontaneously, such as crystallization, curing, and enthalpy relaxation. It is obtained by subtracting the reversing signal from the total signal.

Software enables easy operation for everything from measurements to data analysis.



LabSolutions TA workstation software ensures all steps from measurement and data analysis to report generation can be performed smoothly using intuitive operations. It also allows the instrument operating status to be confirmed at a glance.
Optional software is also available for supporting a variety of specific measurement parameters.

Easy-to-use data analysis functionality improves productivity.

  • Automatic manipulation and automatic analysis functions in template format
  • Measurement result reports are automatically prepared

When the template function is used, manipulation and analysis can be automatically performed. By configuring the template in the acquisition program prior to measurement, automatic analysis and report preparation can be performed.

Automatic analysis using the "Template Function"

Corrections, analysis, and layout setting of reports can be carried out automatically using the unique "Template Function." This can be used not only during analysis, but also prior to measurement. It will be automatically applied when measurement is completed, and saved.

Temperature change data can be analyzed with ease

Data on repeated temperature increases and decreases can be treated as independent data using the "Analysis Range Setting Function," so analysis can be carried out simply. Using this function, data related to repeated temperature increases and decreases can be divided into separate data.

Software is ideal for ensuring data reliability.



Using DB or CS versions of LabSolutions software, all measurement data, analysis data, and analysis and correction histories can be saved in a database.

  • Prevents not saving unfavorable data.
  • Saves a history of all operations.
  • Data cannot be deleted or overwritten. If data is changed, the unchanged data is protected.
  • Protects data from unintended overwriting or deletion and prevents errors.
Version LabSolutions TA LabSolutions DB TA LabSolutions CS
Data Management Method Measurement data files are managed by saving them in a computer folder. Measurement data files are managed by saving them in a LabSolutions database.
Viewing Data Data viewed as files in a folder on a computer drive Data viewed as files in a database
LabSolutions Databases Not available
Available
(Database resides on local computer.)
Available
(Database resides on server.)
User Management Not available
Available
Rights Group Administration Not available Available
Project Management Not available Available
Standalone/Network Only usable as standalone Only usable as standalone Only usable in network (LabSolutions TA data can also be viewed via a viewing computer using Database Manager.)
Data Backup Explorer can be used to back up data in specified files. Backs up data in entire database.

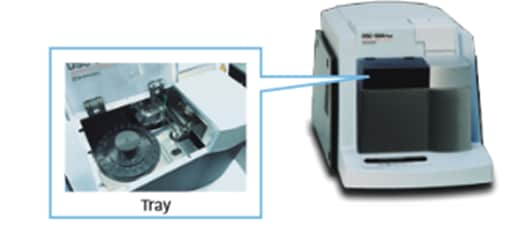

A model (DSC-60A Plus) with a built-in autosampler is also available for measuring samples automatically.



DSC-60A Plus

  • Autosampler is built into the main unit
  • Enables 24 automatic measurements
  • Enables automatic analysis and output after completion of measurement
  • Normal measurement can be performed during autosampler operation by interruption
