The combination of “Auto-EZGlycoTM mAb-N Kit for SHIMADZU” made by Sumitomo Bakelite and the MUP-3100 greatly streamlines the previously cumbersome procedures and simplifies the preparation of labeled glycans.
MUP-3100
Fully Automated Sample Preparation Module for Glycan Analysis
Automatic Pretreatment of Modified Glycans from Antibodies in Culture Supernatants
Stable performance eliminates differences between analysts, ensuring excellent data reproducibility

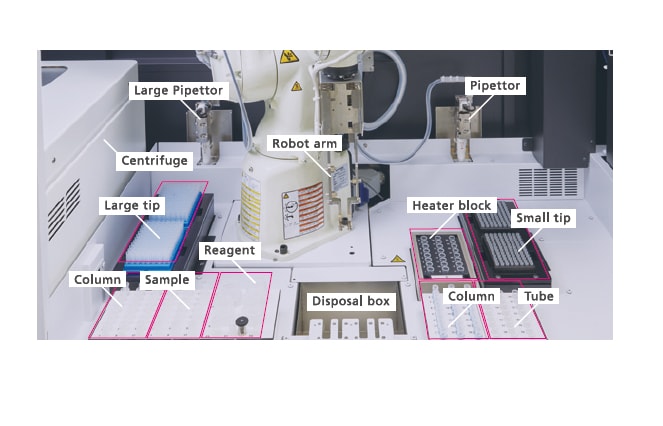

Shimadzu developed the MUP-3100 Fully Automated Sample Preparation Module for Glycan Analysis in conjunction with Sumitomo Bakelite Co., Ltd., for use with their Auto-EZGlyco™ mAb-N Kit. The MUP-3100 eliminates manual sample preparation, increases overall analysis throughput, and improves reproducibility.
This device is available only in Japan, China, Taiwan, India, and South Korea.
Shim-pack, LabSolutions, and i-PeakFinder are trademarks of Shimadzu Corporation or its affiliated companies in Japan and/or other countries.
Auto-EZGlyco is a trademark of SUMITOMO BAKELITE CO., LTD. and/or its affiliates.
Features
-
-
The MUP-3100 not only lessens the burden on the analyst, but also enables pretreatment at night or on holidays, thereby accelerating the workflow. -

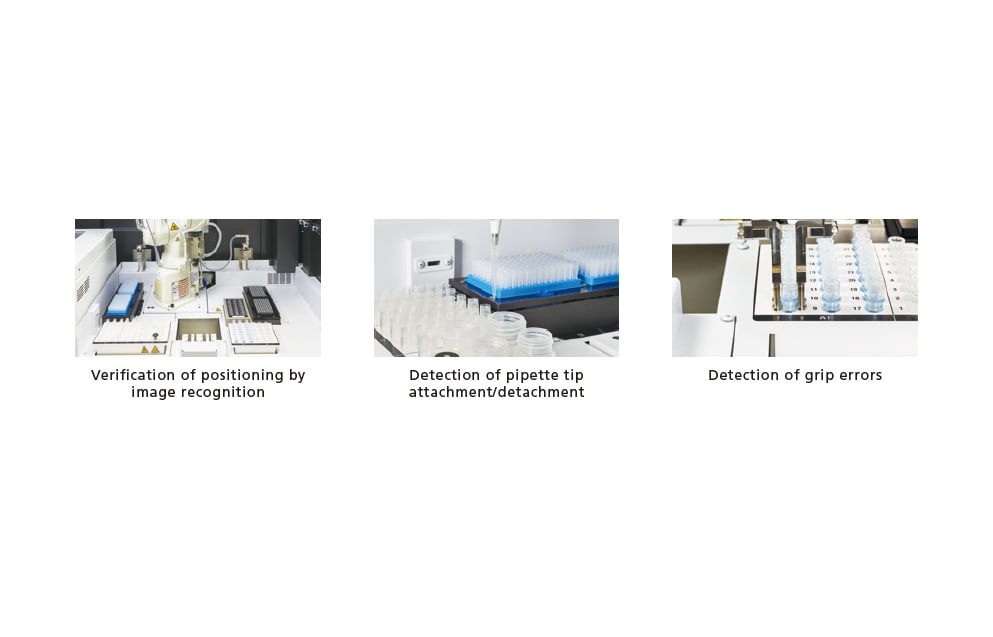

The automated protocol will be paused if the sample, reagent, or consumables are missing. Even during automated operations, pipette tip attachment/detachment and the column grip are monitored by sensors, preventing malfunctions. -

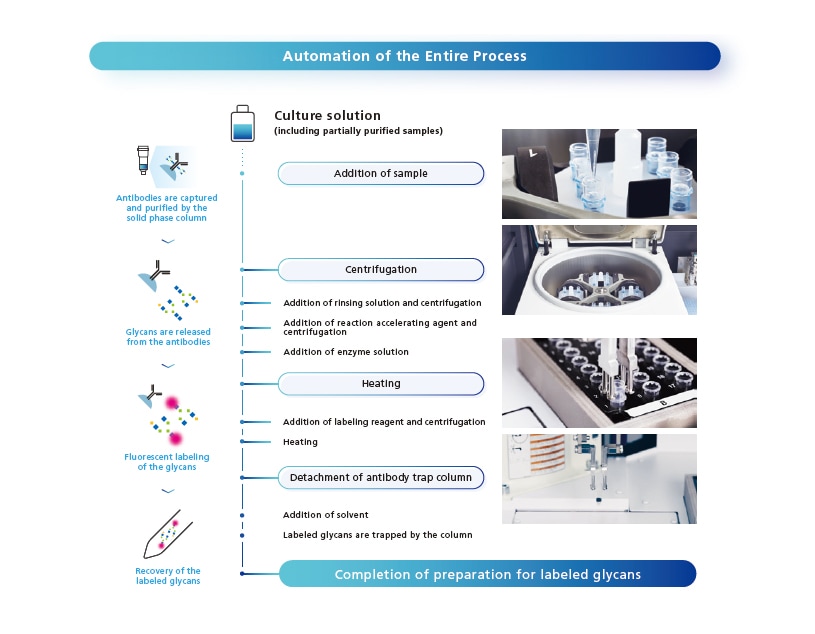

The combination of “Auto-EZGlyco mAb-N Kit for SHIMADZU” made by Sumitomo Bakelite and the MUP-3100 greatly streamlines the previously cumbersome procedures and simplifies the preparation of labeled glycans. -

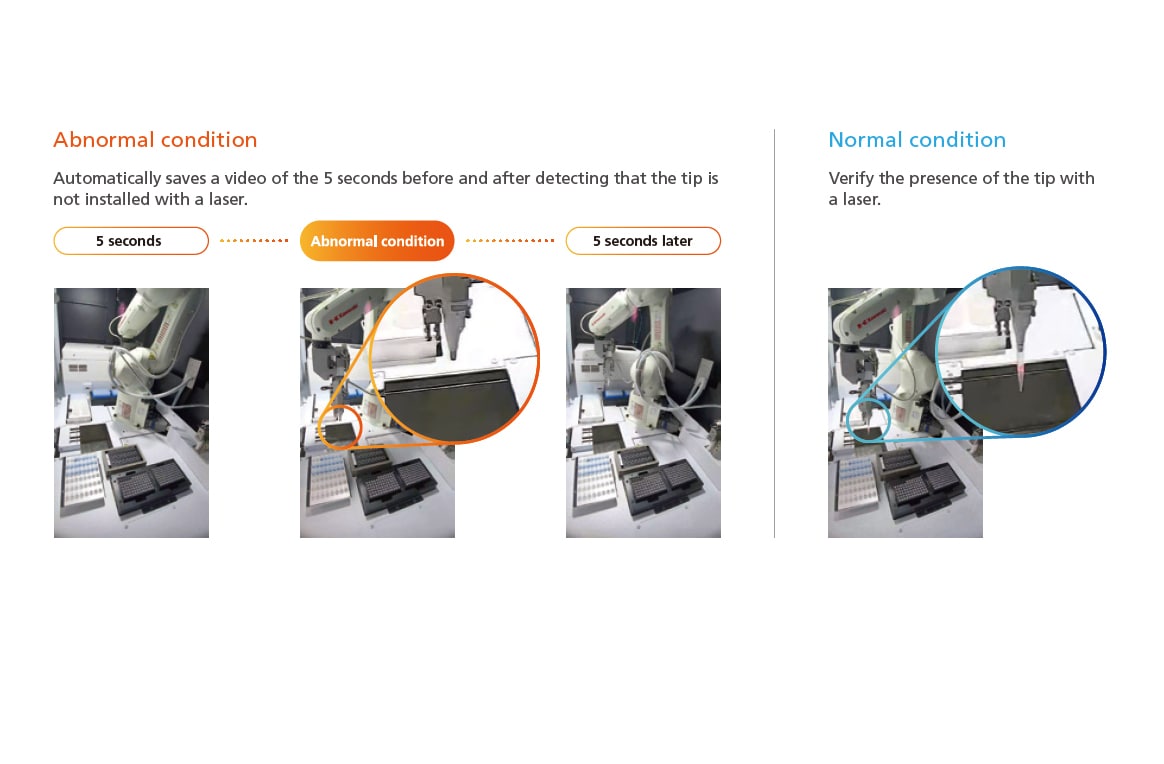

The MUP-3100 stores the automatically generated preparation results report in the database. And the MUP-3100 equipes with an error log and movie saving function in case of trouble and to ensure traceability.
-

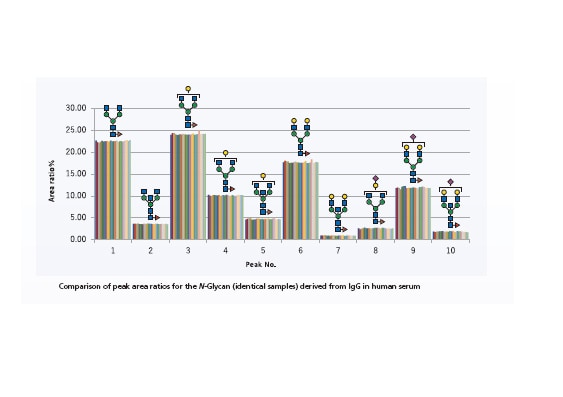

The MUP-3100 can process 24 samples at a time. Even with simultaneous processing of other samples, the area ratio of each peak remains stable regardless of peak intensity, yielding data equivalent to that obtained when using the kit manually. -

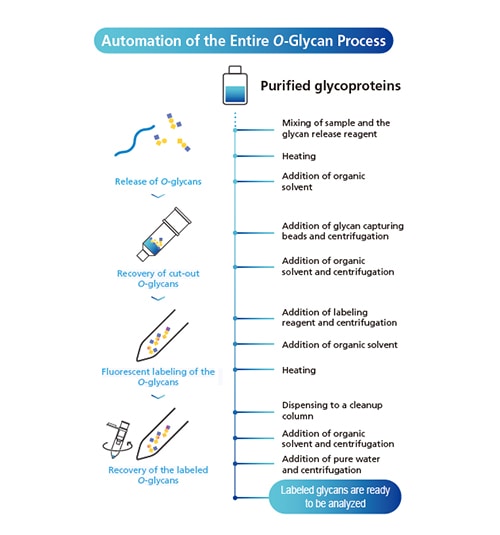

Addition of Pretreatment Functions for O-Glycans to the MUP-3100 (MUP-3100 +O-Glycan Analysis Kit)
Videos
-
MUP-3100 Fully Automated Sample Preparation Module for Glycan Analysis
Fully Automated Sample Preparation Module for Glycan Analysis
Shimadzu developed the MUP-3100 Fully Automated Sample Preparation Module for Glycan Analysis in conjunction with Sumitomo Bakelite Co., Ltd., for use with their antibody N-glycan analysis kit. The MUP-3100 eliminates the manual sample preparation, increases overall analysis throughput, and improves reproducibility.
