Width Measurement Functionality
Single and Dual Camera Models
High-intensity LED Lighting System
Non-Contact Digital Video Extensometer

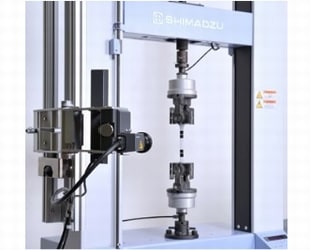

TRViewX is an advanced non-contact extensometer that offers high-measurement accuracy, is capable of measuring width changes, and is applicable to a wide variety of materials testing applications. In particular, due to the non-contact design, TRViewX is perfect for measuring films, foils, and other thin or narrow materials without affecting the specimen during testing. Furthermore, TRViewX can be used to measure displacements during atmosphere-controlled testing in a thermostatic chamber. TRViewX provides high-accuracy measurements in accordance with ISO 9513 Class 0.5 and JIS B 7741 Class 0.5 for elongation measurements and ISO 9513 Class 1 and JIS B 7741 Class 1 for width measurements. It is compliant with plastic tensile testing standards, including ISO 527, JIS K7161, and ASTM D638, even supporting 75 mm gauge length specimens (type A1 specimens) specified in ISO 527 and JIS K 7161.
TRViewX Non-Contact Digital Video Extensometer-Example of Plastic Measurements
TRViewX is an advanced non-contact extensometer that offers high-measurement accuracy, is capable of measuring width changes, and is applicable to a wide variety of materials testing applications. In particular, due to the non-contact design, TRViewX is perfect for measuring films, foils, and other thin or narrow materials without affecting the specimen during testing.
TRViewX Non-Contact Digital Video Extensometer -Example of Open Hole CFRP Plate Measurements
TRViewX Non-Contact Digital Video Extensometer -Example of Open Hole CFRP Plate Measurements
ASTM D5379 V-Notched Beam Testing (losipescu) of CFRP
The V-notched beam testing method (Iosipescu method, ASTM D5379) is used widely in the field of composite materials for testing in-plane shear. This test method applies an asymmetrical four-point compression load to a sample with V-notches, which enables the application of only shear stress on the evaluation area.
This method can be used with various CFRP laminate materials, including unidirectional materials, orthogonally laminated materials, and materials with discontinuous fibers.
ASTM D6484 Open-Hole Compression (OHC) Testing of CFRP
CFRPs have excellent characteristics in terms of specific strength and high rigidity, but they also lose a substantial amount of their strength when a cutout is made. In order to assess the use of composite materials for aircraft, tests must be performed with samples that have a circular hole cut through the center. ASTM D6468 is an open-Hole compression (OHC) testing method that uses a sample with a 6-mm (0.25-inch) diameter circular hole cut in its center.
ASTM D6468 has two loading methods: method A and method B. This video shows method B, in which the sample is compressed via compression plates located on the ends of the sample and jig.
ASTM D6641 Combined Loading Compression (CLC) Testing of CFRP
Compressive strength is an extremely important property of composite materials for product design. A common compression test method is the combined loading compression (CLC) method (ASTM D6641).
The CLC method can be performed with a simple jig construction, using a long and narrow sample without tabs. It enables evaluating strength and measuring modulus of elasticity simultaneously.
AUTOGRAGH AGS-X2 Series has been released
The Shimadzu AUTOGRAPH AGS-X2 series provides superior performance and practical testing solutions for a wide array of applications. Offering high-level control and intuitive operation, the AGS-X2 series sets a new standard for strength evaluations while providing the utmost in safety considerations in a modern, stylish design.
AUTOGRAGH AGS-V Series has been released
Shimadzu Corporation released the Autograph AGS-V Series precision universal testing machine. In this series, the range over which the force measurement accuracy is guaranteed has been increased by a factor of two compared with existing machines. As a result of this new function, the work required to change force measurement sensors and accessories required for measurement can be reduced.
High-Speed Video Camera HyperVision HPV-X3 has been released
Recording speed of 20 million frames/second, the highest in its class provides larger, clearer, high-sensitivity recording. HPV-X3 is equipped with a synchronized recording function and high-level analytical capabilities that accommodate a variety of software programs.
New Video: AUTOGRAPH AGX-V2 Operation Control Panel Stand-alone test feature
We will introduce a new feature of Shimadzu's latest tensile tester, AGX-V2, a stand-alone testing function using a large color LCD touch panel.
New Video: AUTOGRAPH AGX-V2 Voice Operation Device XV-Talk
We will introduce how XV-Talk, the world's first voice control device installed in Shimadzu's latest tensile tester AGX-V2, can be used in various scenarios.
New Autograph AGX-V2 Series Precision Universal Testing Machines
The World’s First Testing Machines Equipped with a Voice Operation Device
