Relative Diffuse Reflectance Measurement - Specs

Diffuse Reflectance Measurement

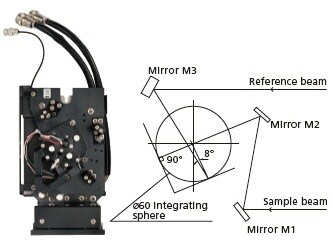

ISR-603 Integrating Sphere Attachment

276 - Relative Diffuse Reflectanc...

This attachment is used for the measurement of diffuse and spealar reflectance. Transmission of liquid and solid samples can also be measured.

Angle of incident light

0°/8°

Wavelength range

220 to 2600 nm

Maximum size of reective sample

Approx. 100 mm dia. x 15 mm thick

Integrating sphere

60 mm I.D. BaSO4

Detectors

PMT, InGaAs, cooled PbS

Note: For UV-3600Plus series
Note: The optional cuvette attachment is required for transmission measurement of liquid samples.

Read more
Show Less

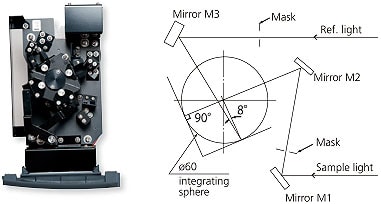

ISR-2600/ISR-2600Plus Integrating Sphere Attachment

276 - Relative Diffuse Reflectanc...

Angle of incident light

0°/8°

Measurement wavelength range

ISR-2600 220 to 850 nm, ISR-2600Plus 220 to 1400nm

Maximum size of reflection sample

70 mm W x 70 mm H x 20 mm T (0° angle of incidence side)
70 mm W x 70 mm H x 12 mm T (8° angle of incidence side)

Note: For UV-3600Plus series
Note: ISR-2600 can be used with UV-2700.
