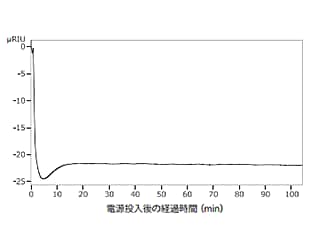

The RID-20A reduces the time to stabilization after power-on dramatically by utilizing dual temperature control for the optical system.
The stable baseline provides...
The stable baseline provides...
RID-20A
High-Sensitivity Refractive Index Detector
Inheriting the stability and extensibility that are the strengths of the Prominence series, the new RID-20A model of differential refractive index detector is designed with a new reference-cell auto-purge feature and validation support function.
Features
-
-

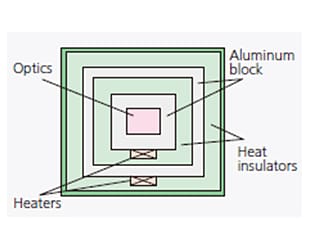

The optical system is housed inside a dual-temperature-controlled block. The temperature of the incoming mobile phase is controlled in two stages; consequently, the stabilization time is significantly shorter... -

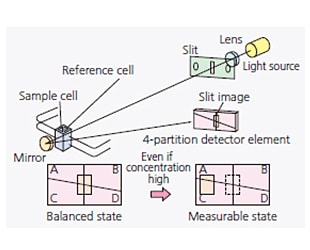

The four-partition photodetector in the RID-20A allows a wide refractive index range (0.01 to 5000 μRIU). The single detector supports all applications from highly sensitive measurements to preparative measurements...
Applications
| Applications | Date Creation Date | Configuration |
|---|---|---|
|
2020-08-04 |
||
|
2020-01-09 |
|
|
|
2019-07-03 |
| Description | Q'ty |
|---|---|
| LC-2030C | 1 |
| RID-20A | 1 |
| InertSphere Sugar-2 | 1 |
