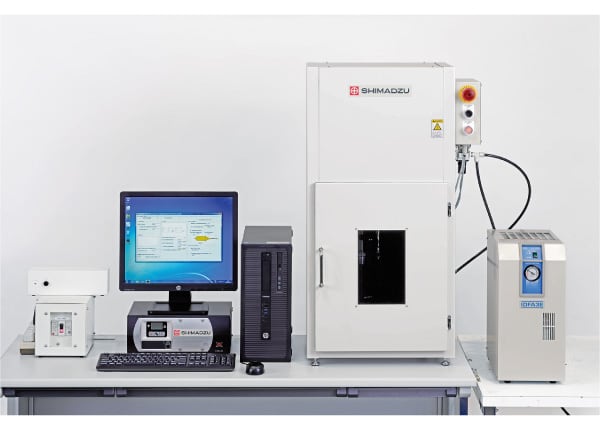

USF-2000A

Ultrasonic Fatigue Testing System

The USF-2000A implements materials fatigue testing at 20 kHz. Consequently, it is possible to evaluate 10⁹ to 10¹⁰ order fatigue strength, where it had been difficult to obtain data before. Also, data for 10⁷ cycles can be obtained in about ten minutes.

Features

USF-2000A Features

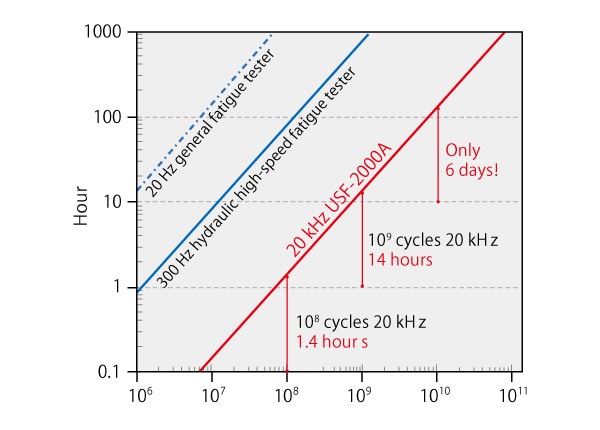

Accelerated evaluation of the fatigue life of metals and materials is possible at 20 kHz cycle speed. Even 10¹⁰ cycle tests are completed in a mere six days.
Significant stress can be produced by testing under resonance conditions, and furthermore is economical.
Constant stress amplitude control is possible via the controller (provided) with the PC.
