FTIR Spectrometers Comparison​

This page provides a quick overview of 4 models of FTIR spectrometers. Choose the model that best suits your analysis needs from our compact FTIR for routine analysis to the high-end FTIR with excellent sensitivity and high expandability​.​

Contents

1. Summary of Product Features​




IRTracer-100

Excellent sensitivity and reliability​
• Achieves high sensitivity, high resolution, and high speed
• Interferometer optimization/stabilization technology supports high sensitivity​​

New generation of workstation​
• LabSolutions IR is network compatible, equipped with abundant libraries and advanced search functions as standard, and realizes automation and labor saving with macro functions.​

Applications that play an active role in various scenes​
• Supports contaminant analysis and identification tests​
• Various accessories and high expandability​




IRXross​​

High-end sensitivity for countless applications
• Astoundingly low noise and 55,000:1 S/N ratio enable ultra-high-sensitivity measurements​​​​​

Built-in Analytical Intelligence​
• Easy navigation with IR Pilot ensures anyone can get started easily

Complies fully with regulations
• Humidity-resistant window material compatible with the wavenumber measurement range specified in Pharmacopoeia



IRAffinity-1S

IRAffinity-1S​

Surpassing general-purpose instruments in sensitivity and performance ​​
• Highest S/N ratio in its class and highly stable interferometer

Easy-to-use, advanced software: LabSolutions IR
• Run dedicated LabSolutions IR programs or windows applications easily

Broader range of applications​​​
• A wide variety of programs and accessories is available in order to meet the needs of various customers.​​​

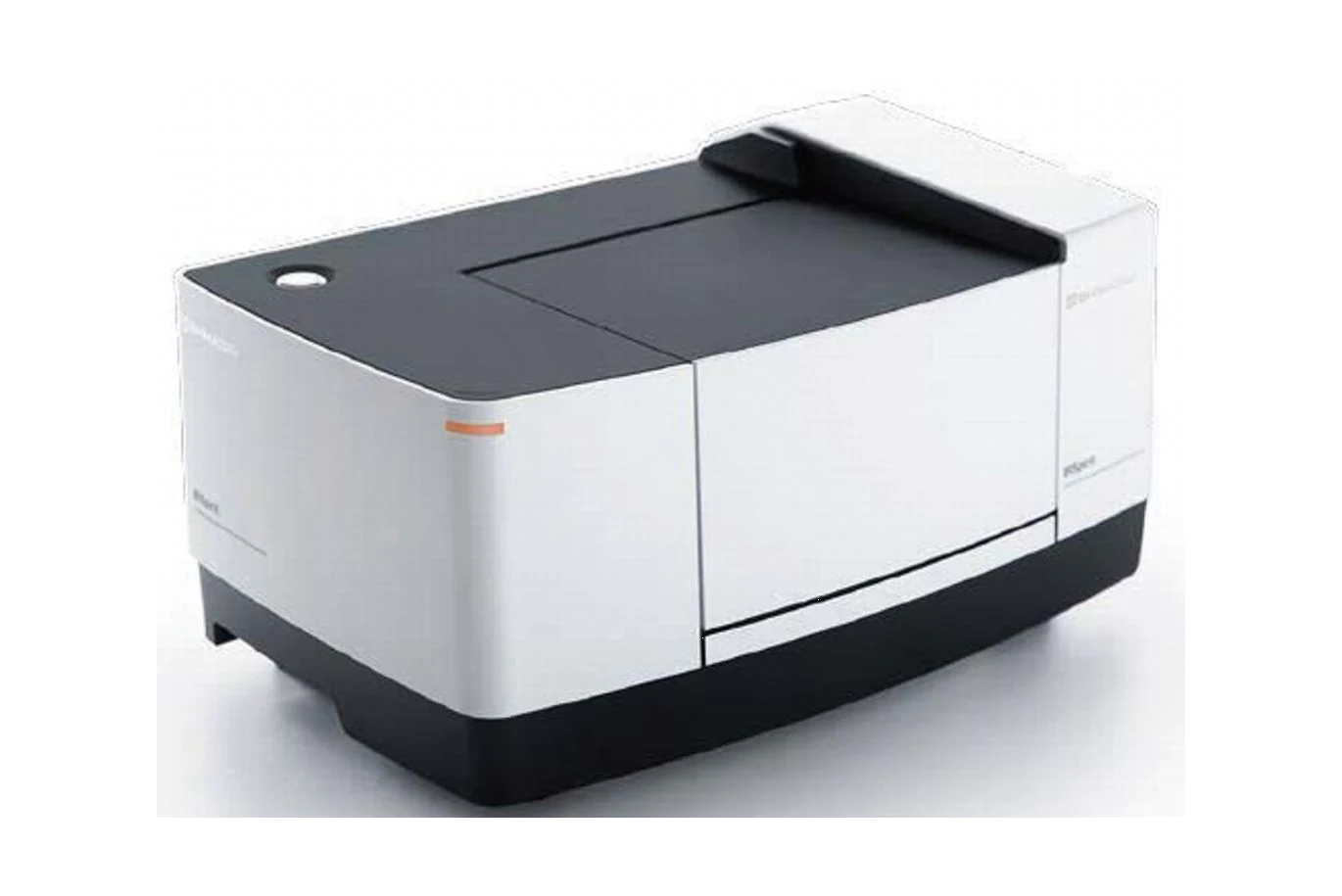

IRSpirit

IRSpirit​

Space-efficient with high expandability​​
• Compact FTIR that travels where it's needed.
• Samples can be measured with the unit positioned horizontally or vertically.​
• Widest sample compartment in its class​​​

Dedicated IR Pilot program ensures immediate and easy system operation​​
• Includes 23 application programs as standard.
​• Includes an identification test program and a pass/fail judgment program as standard.​

High reliability ensures the system can be introduced with confidence​​​
• Stable interferometer performance based on technology inherited from high-end models.
• Designed to endure even high-humidity environments (selectable KRS-5 window).​​​

2. Comparison Table



Model S/N Ratio​ Wavenumber
Range
Dehumidifier​ Optional MCT Detector​ Connection with Infrared Microscope​ Dimensions​​ (mm)

IRTracer-100​

IRTracer
60,000 : 1​ 7,800 - 350 cm-1
12,500 - 3,800 cm-1 with NIR kit​
5,000 - 240 cm-1 with FIR kit
Standard​
checkpoint%202
checkpoint%202
(AIM-9000)​
600(W)×665(D)×295(H)

IRXross​​

IRXross
・55,000 : 1 (KBr window)​
・42,000 : 1 (KRS-5 window)
7,800 - 350 cm-1
Optional
505(W)×578(D)×330(H)

IRAffinity-1S​​

IRAffinity-1S
30,000: 1
Standard
N/A
514(W)x606(D)x273(H)

IRSpirit​​​

IRSpirit
・30,000 : 1
(T model/KBr window)​
・23,000 : 1
(T model/KRS-5 window)​
・13,000 : 1
(L model/KBr window)​
・10,000 : 1
(L model/KRS-5 window)​
Optional
N/A​
N/A​
390(W)×250(D)×210(H)

3. Plastic Analyzer​​

The Plastic Analyzer method package includes an FTIR spectral library for plastics degraded by UV rays and heat. Utilizing searches of this library demonstrates its effectiveness in the analysis of unknown samples that are difficult to identify with standard libraries. Examples include plastics degraded by exposure to UV rays as well as contaminants and defective items altered by heating.​
