Xctal 5000 - Specs

Phase-Contrast X-Ray CT System

Main Specifications

Model Xctal 5000
X-Ray Generator Output Max. tube voltage 90 kV  Max. tube current 800 µA  Rated Output 50 W
X-Ray Detector Flat panel detector
Available
Sample Size
CT Stage Φ150 mm × H 275 mm  Max. 5 kg
Orientation Analysis Unit Φ100 mm × H 10 mm  Max. 300 g
Max. Scanning
Range
Fluoroscopy 100 mm × 100 mm
Fiber Orientation Fluoroscopy Φ100 mm
CT Scan Φ100 × H 100 mm
Fiber Orientation CT Scan Φ85 × H 85 mm
CT Data Acquisition Time Min. 30 minutes
Rated Power Main Unit Single phase 200 to 230 VAC ± 10 %  50/60 Hz, 1.0 kVA
Control Computer Single phase 100 to 230 VAC ± 10 %  50/60 Hz, 1.5 kVA
Grounding Ground resistance of 100 Ω max.
Weight 1700 kg
Operating Conditions (when running) Ambient temperature 20 to 30 ℃
Ambient humidity 40 to 80 % max. (no condensation)
External Leakage Dose 1 µSv/h or less

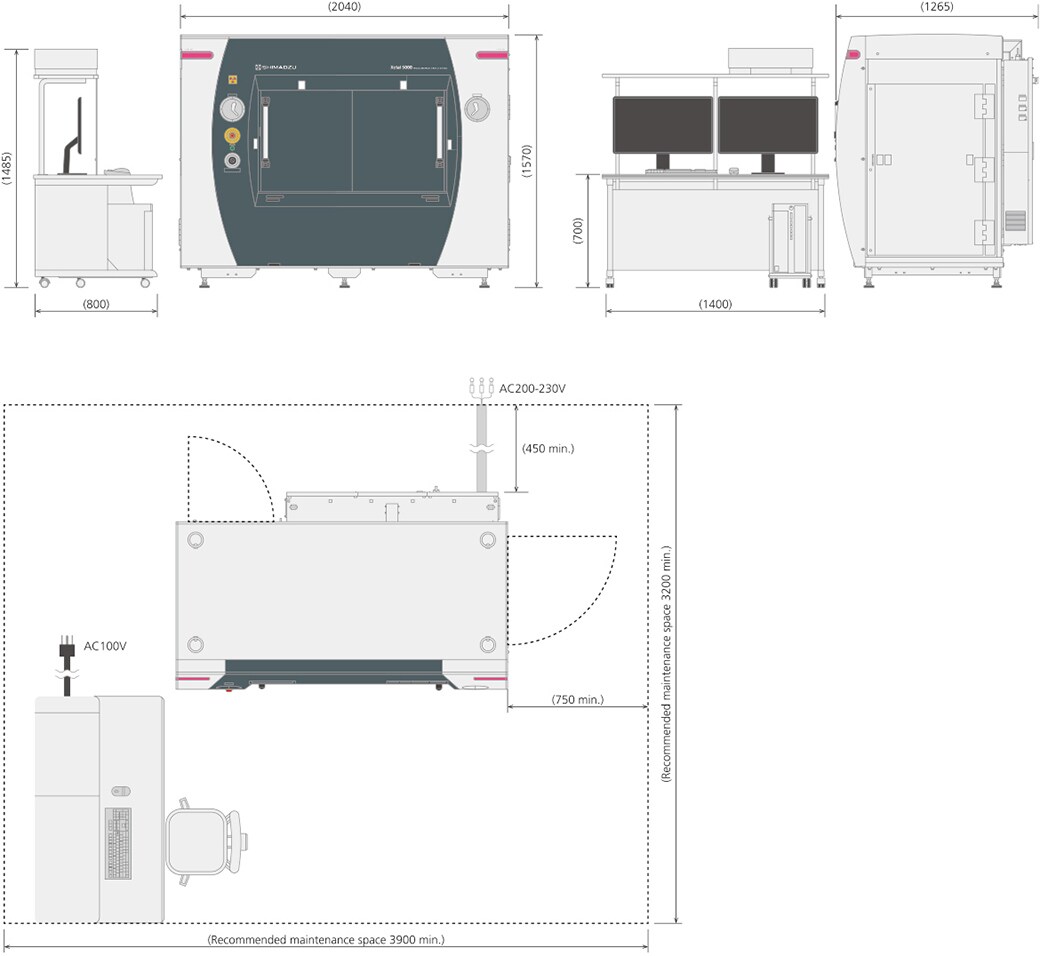

Layout and Size Schematic (Units: mm)

Layout and Size Schematic (Units: mm)
