Fusion of MS images with optical microscope observations.
iMScope QT
Imaging Mass Microscope
Next-Generation Mass Spectrometry Imaging Created by iMScope™ QT

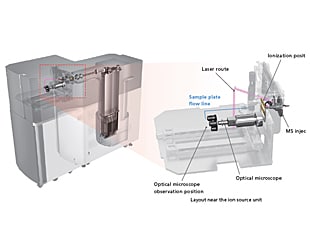

Inheriting the concept of a mass spectrometer equipped with an optical microscope from the iMScope series, the iMScope QT is also Shimadzu's flagship model for MS imaging with a Q-TOF MS(LCMS-9030).
The iMScope QT boasts not only fusion with morphology studies but also excellent speed, sensitivity, and spatial resolution, clearing the way to next-generation mass spectrometry imaging.
This instrument is not available in the USA and may not be available in some other countries. Please contact your local Shimadzu representative for availability.
Total System for MS Imaging Analysis
Mass spectrometry imaging is performed in three steps: pretreatment, data acquisition, and data analysis.
At each step, the optimal approach accelerates research, while improving the reliability of the results.
Key Points for MS Imaging
iMScope is a trademark of Shimadzu Corporation.
Features
-
-

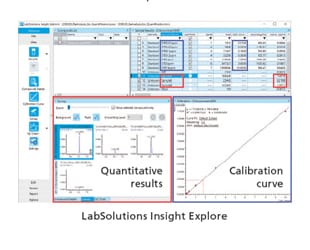

Obtain qualitative and quantitative information from LC-MS as well as position information from mass spectrometry imaging with a single instrument. -

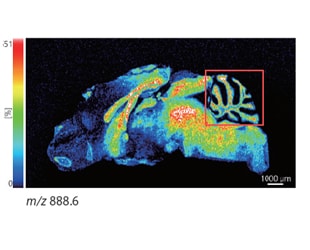

Acquisition of accurate, high-speed, high-resolution MS images together with efficient data analysis.
Downloads
Download the latest brochure.
Applications
Movies
-
Mass Spectrometry Imaging: Paving the Way for the Next Generation
Inheriting the concept of a mass spectrometer equipped with an optical microscope from the iMScope series, the iMScope QT is also Shimadzu's flagship model for MS imaging with a Q-TOF MS.
