Advanced DR Mobile system with new values

MobileDaRt Evolution MX8 Version

Great Forward Visibility offering Peace of mind

The collapsible column has been developed to realize a virtually unobstructed wide field of view during travel, making it ideal for daily hospital rounds.

Intuitive Maneuverability

Optimized power assist system delivers smooth light touch driving. The low-profile and curved shape, provides for an open space behind the mobile cart, allowing for a more natural driving position.

Positioning, Exposure from any direction

Pressing the “All Free” buttons releases the electromagnetic locks for the telescopic arm and column at the same time, thus enabling simple one-step positioning. Multiple "All-Free" buttons are located around the system, so the technologist can access from any direction. Furthermore, an extra exposure hand switch can be added to the front of the system, and a wireless hand switch is optionally available upon local regulatory compliance.

Positioning, Exposure from any direction

Designed for optimized performance

On-site Quick Image Verification on a large LCD monitor

The embedded 19-inch touch panel display is excellent for quickly viewing images, and the flat screen design makes it easy to clean-up. Displaying images in less than 5 seconds after an exposure is especially useful in emergency rooms(ER).

On-site Quick Image Verification on a large LCD monitor

Quick Boot Up

System startup takes only 1 min. and is immediately ready for use in emergency conditions.

Quick Boot Up

Tools to Support Radiation Management

The system is in conformity with today's needs for radiation management. The estimated Dose Area Product (DAP) is displayed prior to exposure, and the calculated DAP value is stored for post-exposure management. DAP chamber can be mounted as well when needed.

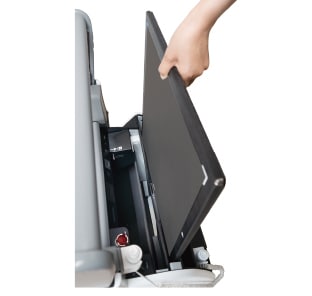

Heightened Security

The redesigned FPD storage bin is equipped with a detector anti-theft lock function that can heighten the security level against FPD theft.

Heightened Security

Designed for Sterile Equipment Covers

For daily use, extra storage spaces are provided to store wipes, pens, markers, etc. Grooves have been added for holding the FPD vertically while putting a sterile cover on the unit.

Designed for Sterile Equipment Covers

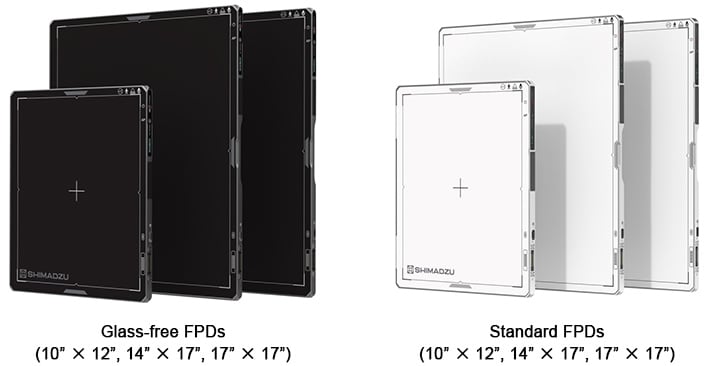

Select the Perfect FPD for Your Application

A wide variety of FPD models are available to meet various clinical needs, such as physical size and sensitivity. You can share one FPD between multiple units or add different dimension FPDs.

Select the Perfect FPD for Your Application

Excellent Durability

FPDs' robust design, dust and water resistance(IP67), and high load capacity contribute to daily clinical work with peace of mind. The robust design allows you to drop it from 1m (40") height. Radiographers do not need to worry about its load capacity because it is 400kg (880 lbs.) under uniform load.*

  • * Load capacity under the local load is 200kg (440lbs).

Excellent Durability

Great Portability

The FPDs are designed ergonomically, making it easier to carry the detector and preventing accidental drops. The long-lasting battery allows radiographers to concentrate more on their clinical work.

Great Portability

High Sensitivity Compact FPD for Pediatric Care

The compact FPD fits inside the cassette tray of an incubator, which enables imaging neonatal babies or infants. A high sensitivity FPD helps reduce radiation exposure, providing powerful support for pediatric care.

High Sensitivity Compact FPD for Pediatric Care

Large Field-of-View to Cover Entire Region

Time to treat is critical in emergency conditions. The large field FPD secures wide field-of-view and reduces the number of exposures to cover entire region of interest.

Advanced Image Processing for a Wide Range of Clinical Needs

Scattered X-ray Correction Enables Grid-less Radiography OPTION

The system can be equipped with a function to remove scatter noise and improve image contrast, making it possible to perform exposures without the use of a grid making it easier to handle FPD’s.

Scatter Correction Enables Grid-less Radiography

Please note that the product or some features/options may not be available in your country.
The appearance of the system, options, FPD and DR user-interface can be different depending on the version or region, and may change without notice. To confirm these detailed availability for you, please contact us.
