MobileDaRt Evolution MX9 Premium Version
(To check the detailed features of each type of MobileDaRt Evolution MX9 Version, please click the tab buttons above.)
Click here for the video only page
Common Features of All Types
Positioning Support with VISION SUPPORT

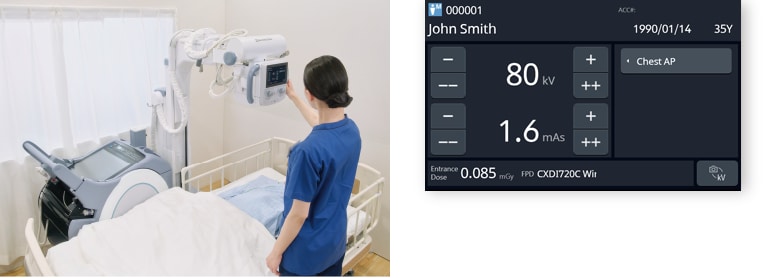

Secondary Workspace
Second Monitor can serve as a secondary workspace to enhance workflow efficiency and provide essential information for dose management.
Click here for the video only page

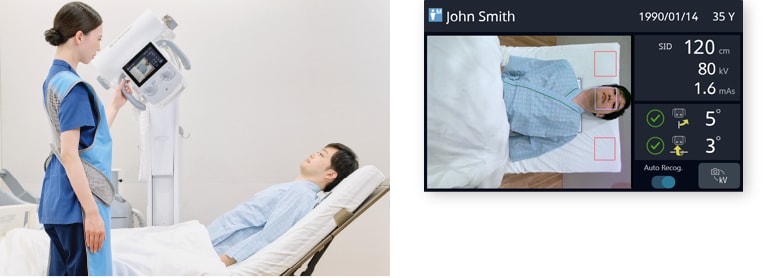

Equipped with a 3D Camera OPTION
The live view obtained by the Live View camera, along with SID and X-ray tube angles, can be displayed on a second monitor. Supports precise positioning and contributes to reducing the frequency of retakes.
Click here for the video only page
Laser Navigation OPTION
Equipped with a cross laser marker on the collimator. When the X-ray tube reaches the proper angle range, the corresponding laser marker lights up, supporting appropriate tube angle during positioning.
Click here for the video only page
Responsive and Smooth Driving
Intuitive Maneuverability, 360° Agility
Optimized power assist system delivers natural light touch driving whether moving forward, stopping quickly or changing directions. It’s also possible to turn on the spot. The system maneuvers easily and naturally to support comfortable operation.
Click here for the video only page

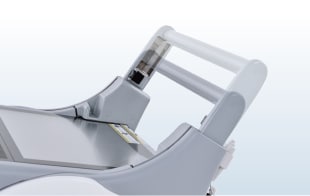

Adjustable handle height OPTION
The handle height can be adjusted anytime based on the operator's comfort level and preference.

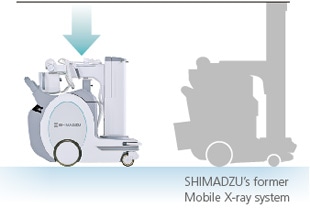

The collapsible Column
The collapsible column has been developed to enhance forward visibility during travel, making it ideal for daily hospital rounds.

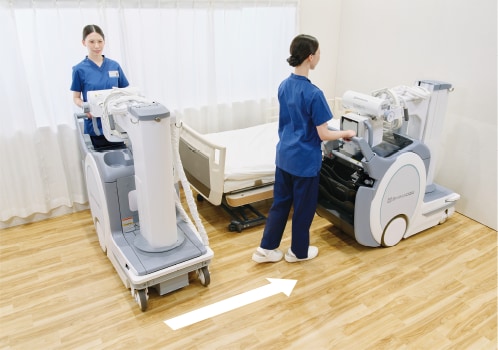

Configure Settings Easily Even in Tight Spaces
The compact body is only 56cm wide, making it easier to maneuver even with limited space. With the collapsible column, collision with tall medical accessories such as IV poles and other devices can be prevented.
Click here for the video only page
Speedy Operability
Easy-to-use Large Touch Monitor
The 19-inch large touch panel display is excellent for quickly viewing images, and the flat screen design makes it easy to clean-up.
Quickly start examination with Minimal Startup Time
System starts up in a short time and immediately ready for examinations. Additionally, main monitor displays the image right after exposure, supporting quick processing.
Easy Managing Exposure Information
Communication with the generator is possible due to the built-in digital unit. By simply selecting exposure protocol, the generator's exposure conditions are automatically set. Additionally, managing exposure records and dose information is made easy.
Easy Positioning
Easy Positioning from Anywhere
The system is especially useful for imaging in ICUs, where there are numerous devices around the patient. With the long vertical stroke range of X-ray tube and the max. 1200 mm telescopic arm extension, the MX9 is easily positioned for patient imaging.
Click here for the video only page

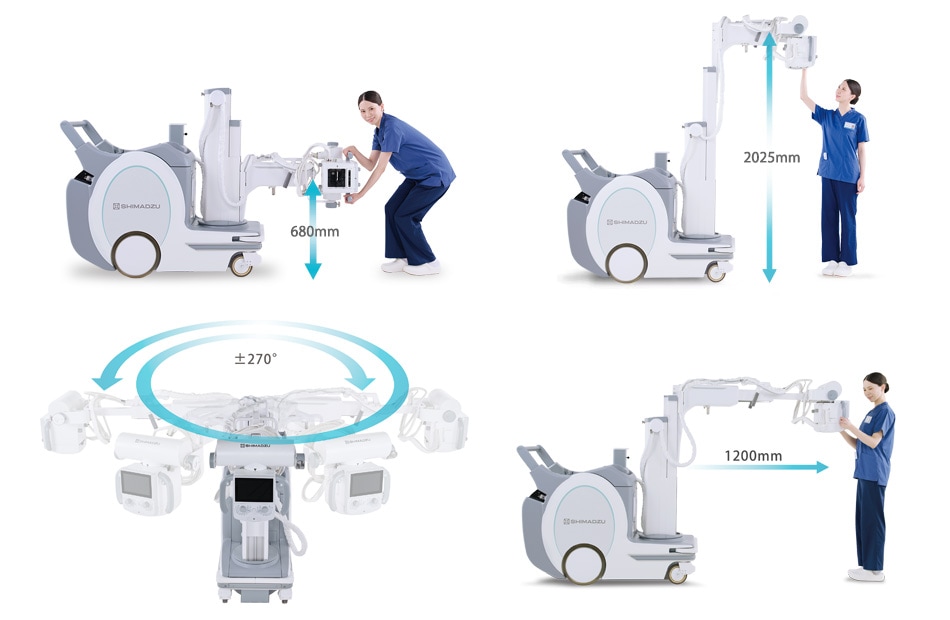

Wide Exposure Range
The system is designed for allowing radiological technologists to perform positioning from any direction. In addition, SHIMADZU's unique spring-balance mechanism enables smooth operation for precise positioning. It can be easily adjusted for delicate positioning and multi-directional shooting.
"All-Free" button for smooth operation from anywhere
Pressing the "All-Free" button releases the electromagnetic locks for the telescopic arm and column at the same time, thus enabling simple one-step positioning. Multiple "All-Free" buttons are located around the system, so the technologist can access the system from any direction.
Click here for the video only page

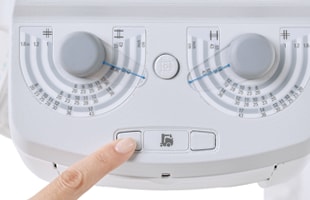

Inch-Mover for Bedside Positioning
The main unit can be moved forward or backward with switches conveniently located on the collimator. The technologist can adjust positioning more precisely without moving around the patient bed.
Field of view collimation by dual side controls
The collimator knobs and lamp button are located on both the from and back side, allowing the technologist to easily confirm and change the irradiation field.

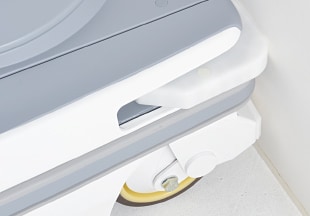

Shock-resistant body design
The body cover has been strengthened to prevent damage should the unit hit an object when moving around the words. The unique soft-touch bumper automatically stops the unit when even the slightest pressure is detected.
Enhancing Hospital Rounds Workflow

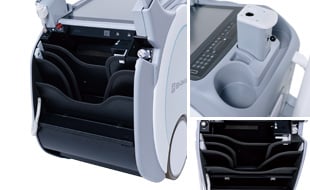

Cleverly designed storage bin
Click here for the video only page
Convenient bin to carry with a large storage capacity
This bin is compact but has sufficient storage space. In addition to the storage compartments for two wireless FPDs and the grid, there are small storage pockets on the front and back of the main unit, making it convenient to carry items like wipes.

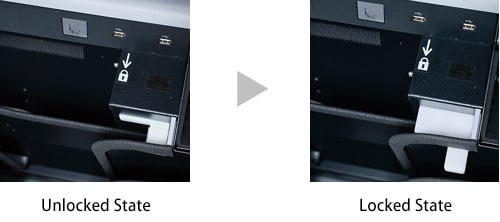

Anti-theft FPD lock function
FPD storage bin is equipped with a detector lock function that can heighten the security level against FPD theft.

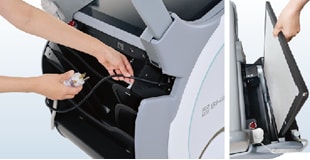

Convenient Battery Charging Process
The conveniently accessible power plug is located just under the handlebar on the back side of unit. The FPD can be charged in the main unit via a connector in the FPD bin (option).

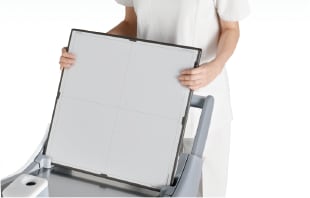

Designed for Sterile Equipment Covers
For daily use, extra storage spaces are provided to store wipes, pens, markers, etc. Grooves have been added for holding the FPD vertically while putting a sterile cover on the unit.
Wireless Barcode reader*) OPTION
The barcode reader can effortlessly assist with patient registration for imaging in hospital rounds. With its wireless feature, the technologist can easily reach patients to scan their barcode.
* ) This feature is not available in v type.
Keyless Entry OPTION
Instead of a key, each user can have their own password enabling accessibility to preferences and preset X-ray parameters. This further enhances security and workflow.
Wireless Solution for Exposure Switch*) OPTION
A wireless hand switch or IR remote controller allows you to perform exposures remotely for even easier usability.
*) A wireless hand switch or IR remote controller allows you to perform exposures remotely for even easier usability.
Compatible with Area Dose Display
The estimated Dose Area Product (DAP) is displayed prior to exposure, and the calculated DAP value is stored for post-exposure management. (measured DAP instrument is optional.) Also, a high sensitivity FPD helps reduce radiation exposure for imaging of neonatal babies or infants.
*) This page presents photos and videos of MobileDaRt Evolution MX9 Premium Version c type.
