Crossover Angiography System - Trinias C16/C12/F12 unity edition

LITERATURE

Crossover the fields, Experience advanced IVR support

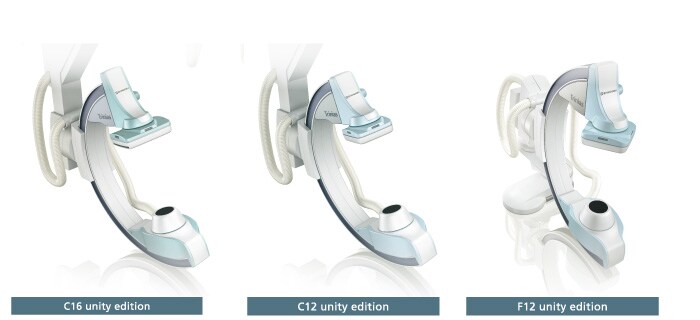

Line-up

“unity” concept

Trinias provides a patient-centered experience, leaving operators free from worry so they can easily perform all types of interventional procedures. Trinias unity edition sets the bar high with improved functionality with new hardware and software features that provide a simple workflow for cardiac and vascular procedures from head to toe. The system uses Intelligent Design to provide Intelligent Care in minimally invasive procedures. Our technology provides solution to the imaging problems that you face every day.
unity: unlimited intelligent technology

Minimally Invasive Experience

Trinias series unity edition

Discover advanced technologies and real experiences of Trinias series unity edition

Customize for your efficient workflow

Expanding the coverage of clinical solution, large FOV 16"x12" FPD and multi-functionality patient table which supports flexible table positioning by tilting function become available. The bed side operations such as selecting acquisition modes, switching reference images and display layouts are integrated into the intuitive and customizable touch panel console, SMART Touch, which maximizes the efficiency of workflow.

Flexible C-arm

By moving the C-arm and changing the insertion direction of the C-arm, you can respond to various body parts without having to move the patient. It greatly reduces the burden on patients, operators and staff, and provides a safer working environment.

“SCORE RSM” motion tolerant DSA

SCORE RSM is an extremely motion tolerant DSA technique. This application is especially effective for tracking across the entire lower extremities, 3D imaging in combination with C-arm movement and examinations on patients who have difficulty holding their breath.

Real-time artifact optimization technique, "Flex-APS"

This technique is an automatic offset function for optimizing miss-registrations of DSA. Flex-APS automatically detects and optimizes the sectional pixel movement gap between MASK image and each frame image regardless of ROI's movement direction such as twisting.

Real-time whole peripheral observation, "SCORE Chase"*

Long-view whole peripheral image is automatically stitched and displayed right after acquiring Shimadzu original MASK less DSA named "SCORE RSM". Under combination with SMART Table, it is much easier to approach to region of interest.

“SCORE StentView”* displaying stents in fixed position in real-time

SCORE StentView, which allows you to enhance stents and fix their position in dynamic images in real time, is exactly software developed to support PCI. It is effective to make sure the positional relationship when overlaying stents and/or when re-extending balloon in a deployed stent. In addition, the ROI setting function that enables automatic detection with multiple markers improves detection efficiency and contributes to shortening procedure time.

“SCORE StentShot”* delivering High-Definition Stent Enhancement image

Outstanding stent visualization with SCORE StentShot enhances patients' safety and reduces treatment time. This application provides a static noise free, stent enhanced image, for optimum, post-deployment stent visualization.

*OPTION

The product design may be partially changed without notice.
