LCMS-8045 - Options

High Performance Liquid Chromatograph Triple Quadrupole Mass Spectrometer

Optional Software Programs

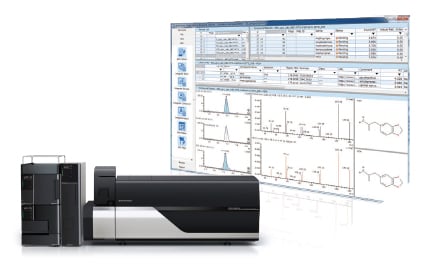

LC/MS/MS Method Packages and MRM Libraries

A variety of method packages and MRM libraries, which include analysis conditions such as MRM parameters, enable efficient implementation of simultaneous multi-component analyses. The method parameter list included in these packages can be used to create methods that analyze targeted components only. These packages can save laboratories a great deal of method development time.

Traverse MS

Multivariate Analysis Software Supports MRM Data

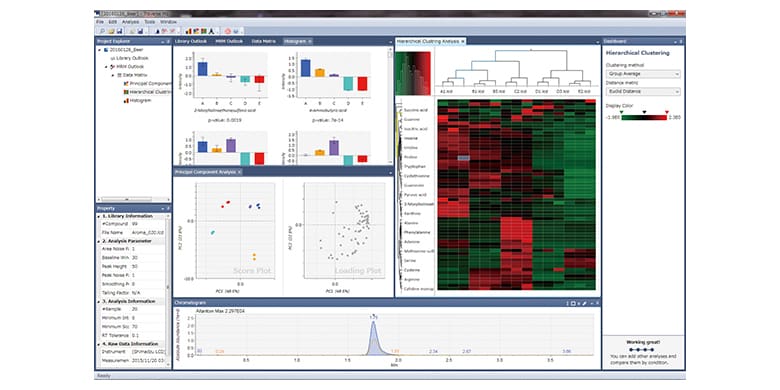

Traverse MS data analysis software is intended for high-speed processing of MRM data acquired with Shimadzu triple quadrupole LCMS systems in the field of targeted metabolomics. Using multiple samples and multiple components, the software is able to create graphical and statistical analysis for metabolic pathway analysis.

Upgrade to LCMS-8060

Enhanced performance for the LCMS-8045/8050

The world's greatest sensitivity and ultra-fast technologies found in the LCMS-8060 are now available for the LCMS-8045/8050.

The LCMS-8050 Upgrade Kit includes three key components.

Upon installation, the LCMS-8045/8050 will deliver LCMS-8060 performance.
(UFsweeper III Collision Cell is additionally included in the LCMS-8045 Upgrade Kit.)

  • Improved ion sampling efficiency DL (Desolvation Line)
  • Improved ion guide with enhanced focusing capabilities UF-Qarray
  • Enhanced vacuum efficiency Rotary pump
  • Improved the CID efficiency UFsweeper III Collision Cell

Development of UF-Qarray Ion Guide using Shimadzu’s Simulation Technologies

The new UF-Qarray was designed to maximize sensitivity without compromising robustness or changing the minimal noise performance established in our previously patented Qarray. To optimize the design of the UF-Qarray, a number of simulation studies were carefully conducted using two platforms to model ion behavior under increased gas flow in the low vacuum region. FLUENT software was used to determine which pole shape would maximize ion focusing under gas flows generated by the enhanced pumping configuration (Fig. 1).
The second technology, newly developed Optdesign modelling software, was used to analyze the complex behavior of ion trajectories when voltages are applied to the expanded ion cloud (Fig. 2).
Using FLUENT and Optdesign simulation models, several prototypes were developed for testing, which led to the UF-Qarray pole geometry final design. This design ejects neutral gas particles in order to reduce noise while achieving greater ion focusing than the previous Qarray design.

Fig. 1 Gas Flow Simulation Results Using FLUENT

Fig. 2 Ion Trajectory Simulation Results Using Optdesign

Groundbreaking Technology for High Sensitivity

With the newly designed UF-Qarray, improved ion focusing efficiency results in greater signal intensity and a reduction in noise. By improving the ion sampling device (desolvation line) and the ion guide (UF-Qarray), and enhancing the vacuum efficiency, the LCMS-8060 defines sensitivity. These new technologies allow for improvements in sensitivity and robustness in all acquisition modes.
